Delta-q IC650 Troubleshoot Manual

IC650 DC Output
29

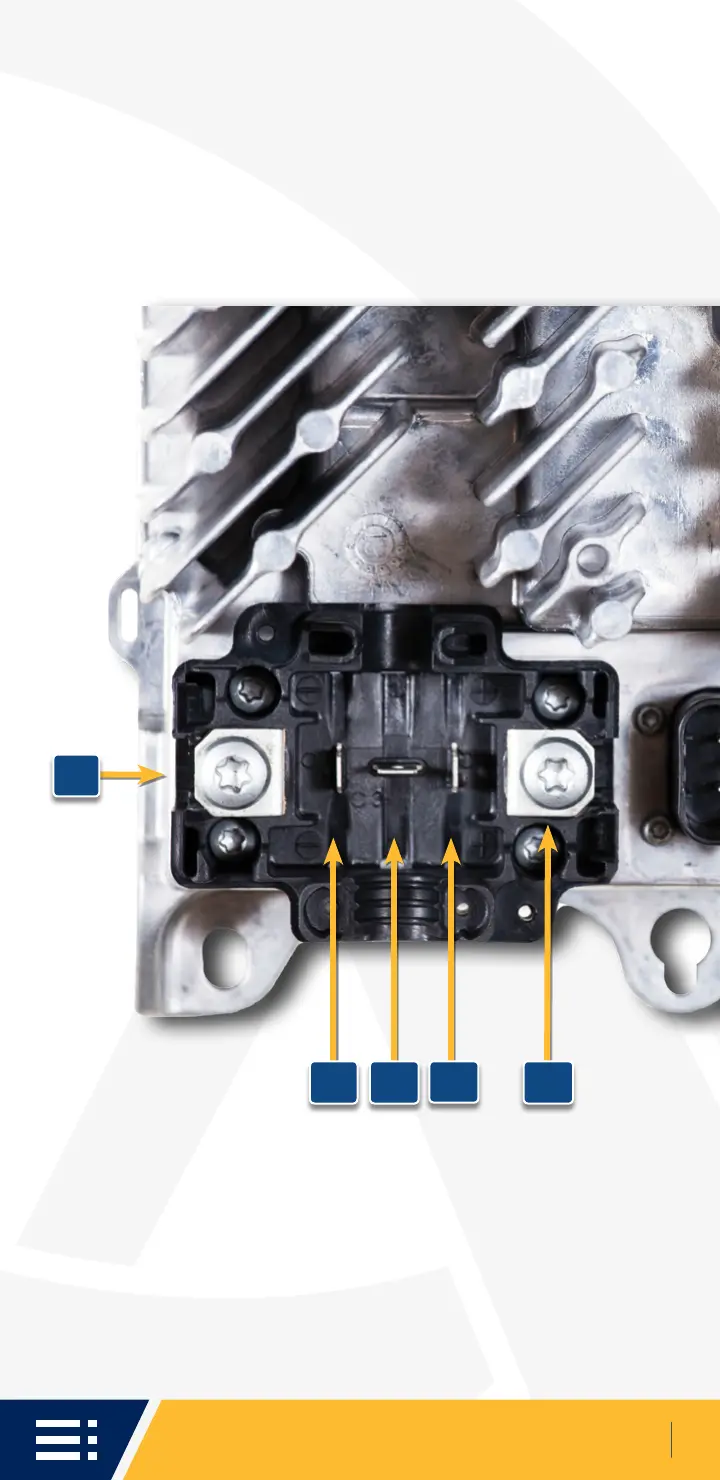

Warning: Be careful not to allow battery
voltage to be applied to the blade terminals
(C1, C2, C3), as it will result in permanent
damage to the charger.
B-
C1 C3 B+
C2

Delta-q IC650 Specifications

General

Input Voltage	85-265 VAC
Input Frequency	45-65 Hz
Output Power	650 W
Efficiency	93%
Storage Temperature	-40°C to +85°C
Protection	Over-voltage, Over-temperature, Short-circuit
Communication	CAN bus
Cooling Method	Convection
Output Voltage	12-48 VDC
