Delta 210 Series User Manual

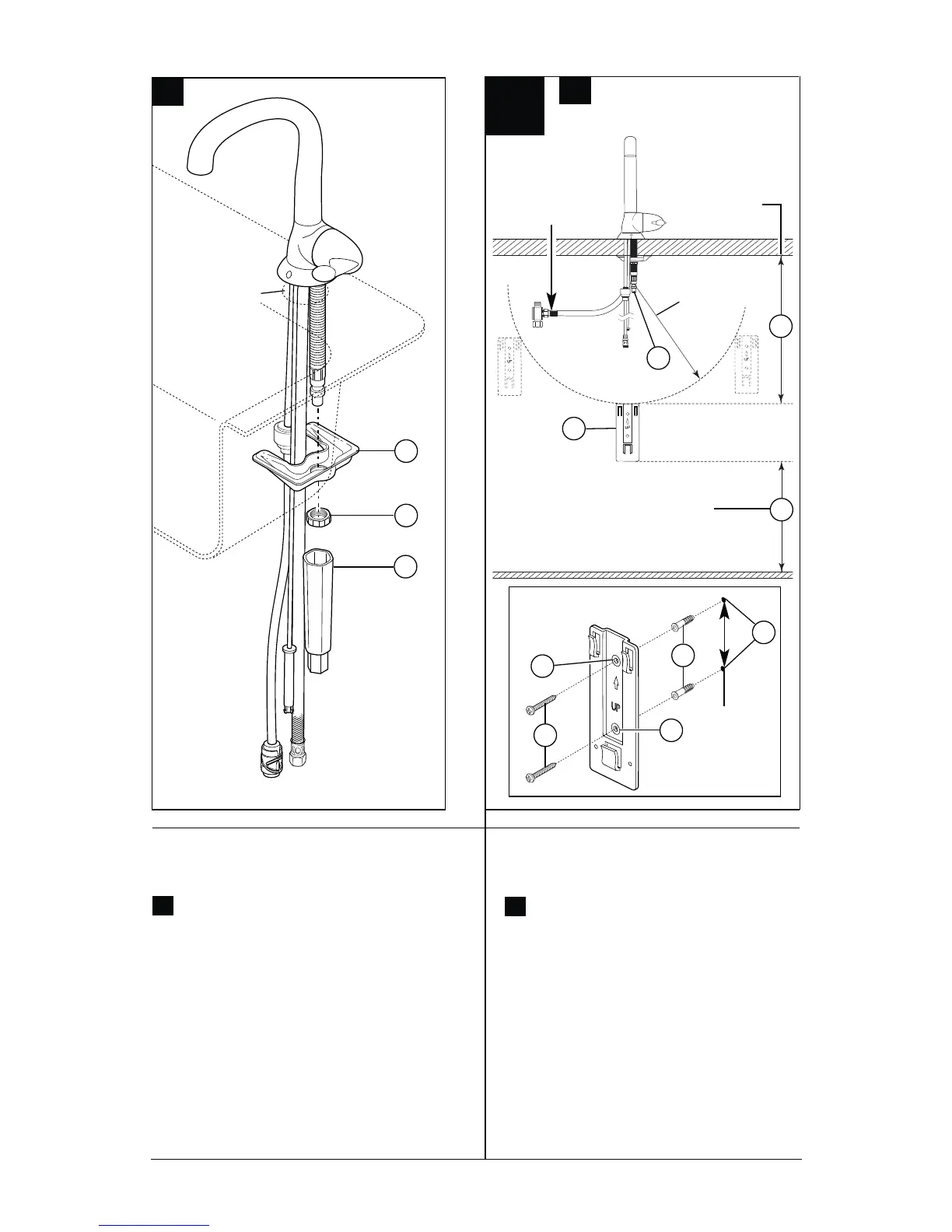

Feed tubes down through hole in sink
making sure that the gasket is properly
aligned in cavity of base. Install
mounting bracket (1) & nut (2).
Tighten with the provided wrench (3).
NOTE: The wrench provided is
designed to be used with a variety of
tools: flat/phillips head screwdrivers,
wrenches, etc.
2
1
2
A.
Filtration Unit Installation
Decide on the placement of the
mounting bracket (1) within a 25"
maximum distance from the quick
connect spout nipple (2). Allow a
minimum of 5" from the bottom of
the mounting surface (3) and a 10"
minimum from the bottom of the
cabinet (4). Mark the positions of
the two mounting bracket holes (5).
If plastic anchors are needed, drill
two 1/4" (6 mm) holes (6) and insert
the anchors (7). Install the bracket
using the two screws enclosed (8).
2.5"
(63.5 mm)
5
5
6
7
8
A.
D.
D.
1-800-345-DELTA (3358)
www.deltafaucet.com
4
3
10" (254 mm)
Min. From Bottom of Cabinet
5" (127 mm)
Min. From
Bottom of
Mounting
Surface
25" (635 mm)
Maximum
IMPORTANT:
Connect to
the cold water
supply ONLY.
1.1" (28 mm)
Minimum
Hole Size
1
2
3
4
