10
Fig. 12
Fig. 11
Fig. 10
B
A
D
E
C
G
F
K
H
M
ELECTRICAL CONNECTIONS
The planer comes wired for 220 volt operation, but it can
be wired for 440 volts. Before connecting your machine
to an electrical power system, make certain the motor
rating agrees with the electrical system it is to be con-
nected to.
NOTE: All electrical connections should be done by a
qualified electrician and conform to the National Electric
Code and all local codes and ordinances.
NOTE: Power cord and plug are not shipped with the
planer. The standard machine is shipped wired for 220
volt operation. To wire the machine:

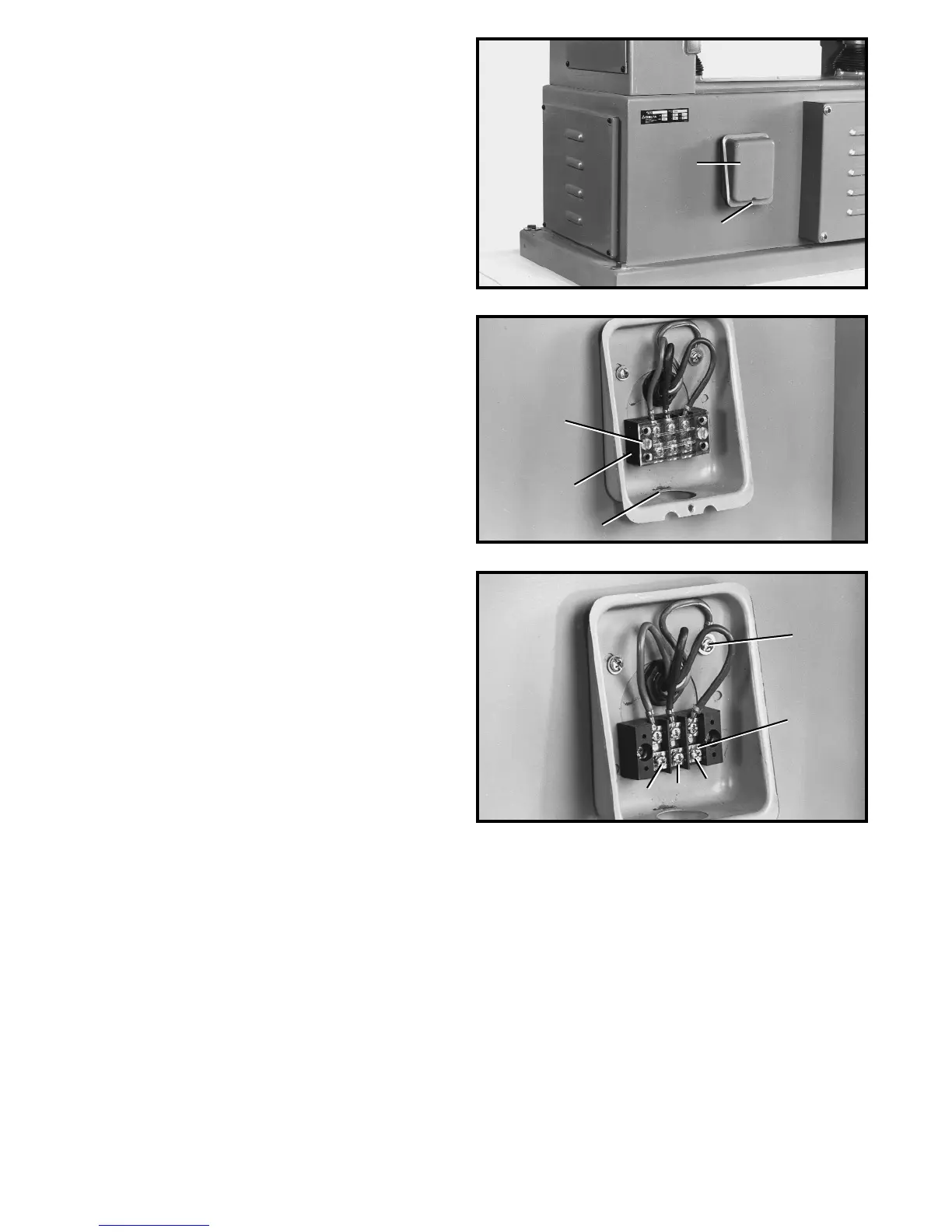

1. Loosen screw (A) Fig. 10, and remove cover (B) from
terminal box located at the rear of the machine.
Bring power line up through hole (C) Fig. 11, in the
terminal box. NOTE: Strain relief and power cord
clamp are not supplied with the machine. Remove
plastic shield (D) Fig. 11, from terminal strip (E).
2. Connect the three power lines to terminals (F), (G),
and (K) Fig. 12, and the green ground wire to termi-
nal (H). After applying power to the machine, jog the
power on and off to check if the machine is rotating
correctly. If the cutterhead is not rotating correctly,
interchange any two of the three power lines con-
nected to terminals (F), (G), and (K).
