FEED ROLLER SPEEDS
Your planer is equipped with feed roller speeds of 20
and 30 feet per minute depending on belt placement on
the pulleys. As a rule, a faster feed rate is used for gen-
eral planing operations, while a slower feed rate
(because it provides more cuts per inch of stock) gives a
finer and smoother finish to the workpiece.
1. To engage the feed rollers, simultaneously push but-
ton (A) Fig. 16, and pull downward on handle (B).
2. To disengage the feed rollers, simultaneously push
button (A) Fig. 17, and move handle (B) to the raised
position, as shown.
3. To change feed roller speeds, disengage the feed
rollers as explained in STEP 2.
4. DISCONNECT THE MACHINE FROM
THE POWER SOURCE.
5. Open two doors (C) and (D) Fig. 18, located on the
left side of the machine.

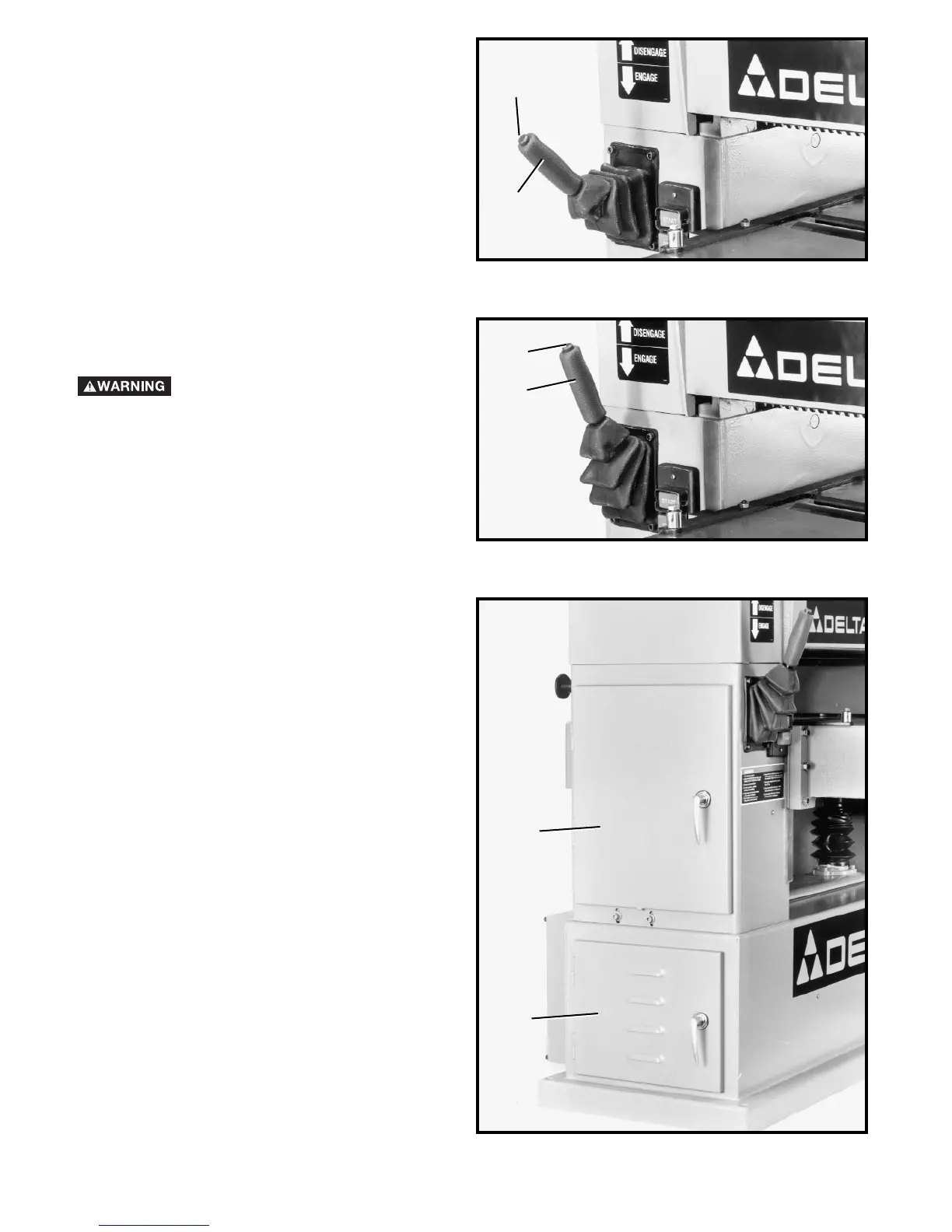

Fig. 16
Fig. 17
Fig. 18
A
B
A
B
C
D
