Delta 22-540 User Manual

6
UNPACKING AND CLEANING
Carefully unpack the tool and all loose items from the shipping container(s). Peel protective film from the table surface.
Remove and clean the protective coating from the cutterhead. Remove the protective coating from all unpainted
surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer
thinner for this purpose). After cleaning, cover the unpainted sufaces with a good quality paste wax.
CAUTION: CARE MUST BE TAKEN WHEN CLEANING THE CUTTERHEAD AS THE KNIVES ARE SHIPPED IN

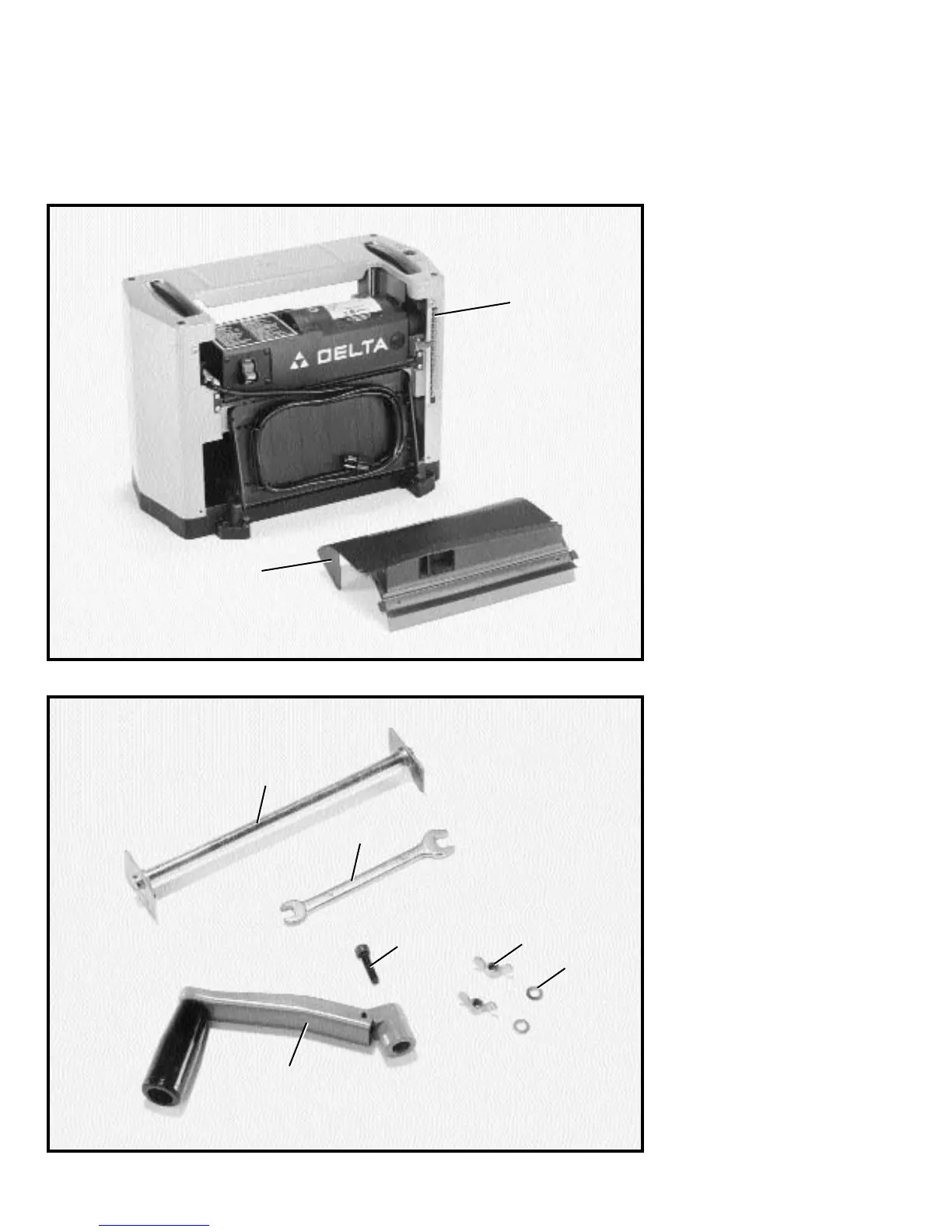

THE CUTTERHEAD AND THEY ARE VERY SHARP. Figs. 2 and 3, ILLUSTRATE THE PLANER AND ALL LOOSE
ITEMS SUPPLIED WITH THE MACHINE.
1 - 12 Planer
2 - Chip Deflector
Fig. 2
Fig. 3
3 - Knife Setting Gage
4 - 8mm and 10mm
Open-End Wrench
5 - M5 x 20mm Hex
Socket Head Screw
6 - M5 Wing Nut (2)
7 - M5 Flat Washer (2)
8 - Elevating Handle
1
4
7
2
8
6
5
3

Delta 22-540 Specifications

General

Type	Portable Planer
Motor	15 Amp
Cutterhead Speed	10, 000 rpm
Feed Rate	26 feet per minute
Number of Knives	2
Model	22-540
Dust Port Size	4 inches
Max Cutting Depth	1/8 inch
