ASSEMBLY INSTRUCTIONS

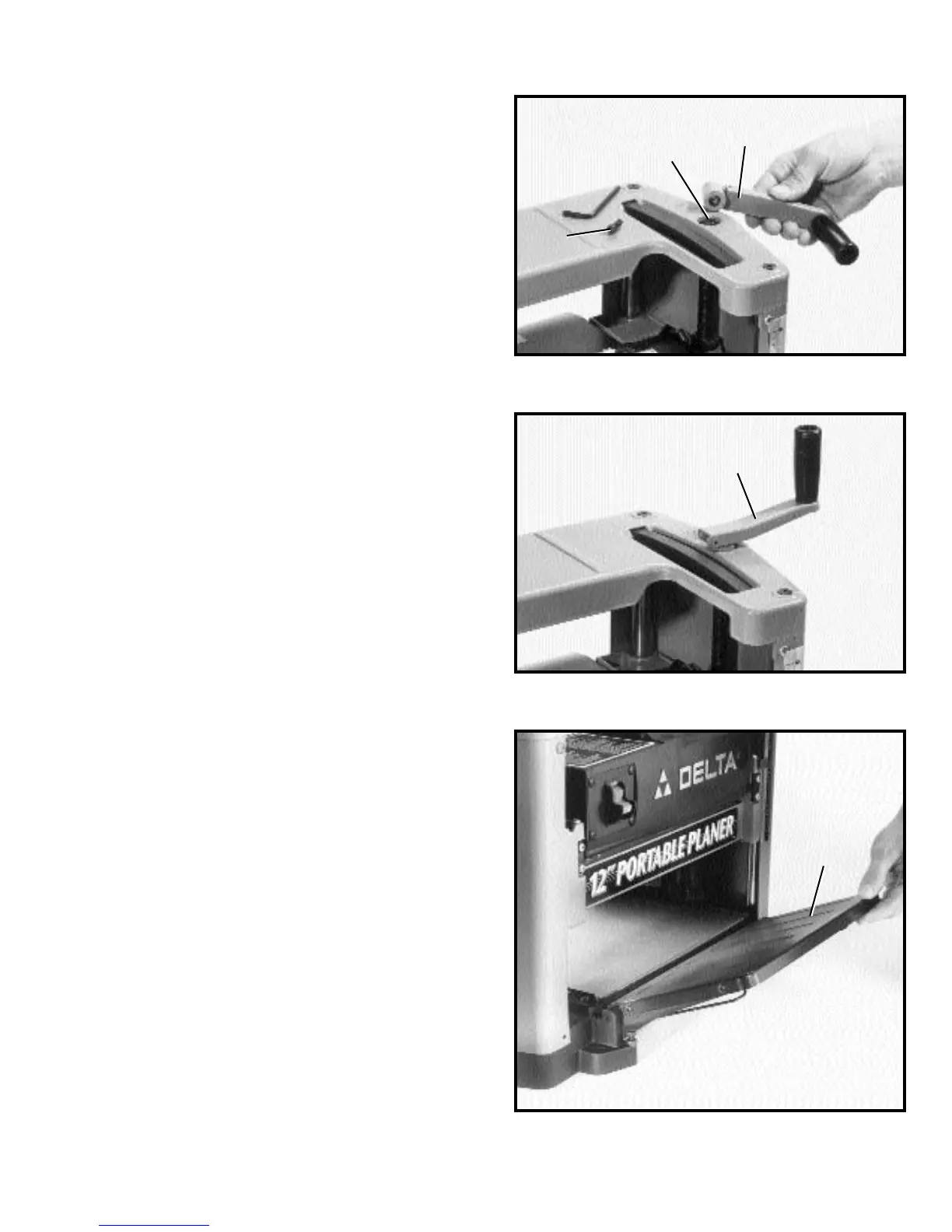

Fig. 4
Fig. 5
Fig. 6
ASSEMBLING RAISING AND
LOWERING HANDLE
1. Assemble raising and lowering handle (A) Fig. 4, to
shaft (B) and fasten in place with screw (C). NOTE: Make
certain the flats of the handle and flat on shaft are
aligned with each other.
2. Flip handle (A) upward as shown in Fig. 5.
LOWERING
EXTENSION TABLES
The infeed and outfeed extension tables (A) Fig. 6, are
shipped attached to the machine in the raised position.
Lower the tables (A) on both sides of the planer
as shown in Fig. 6. The top surface of extension tables
should be level with the planer table. To check and
adjust if necessary, refer to section “LEVELING
EXTENSION TABLES” of this manual.
A
B
C
A
A

Delta 22-540 Specifications

General

Type	Portable Planer
Motor	15 Amp
Cutterhead Speed	10, 000 rpm
Feed Rate	26 feet per minute
Number of Knives	2
Model	22-540
Dust Port Size	4 inches
Max Cutting Depth	1/8 inch
