Delta 22-580 User Manual

12

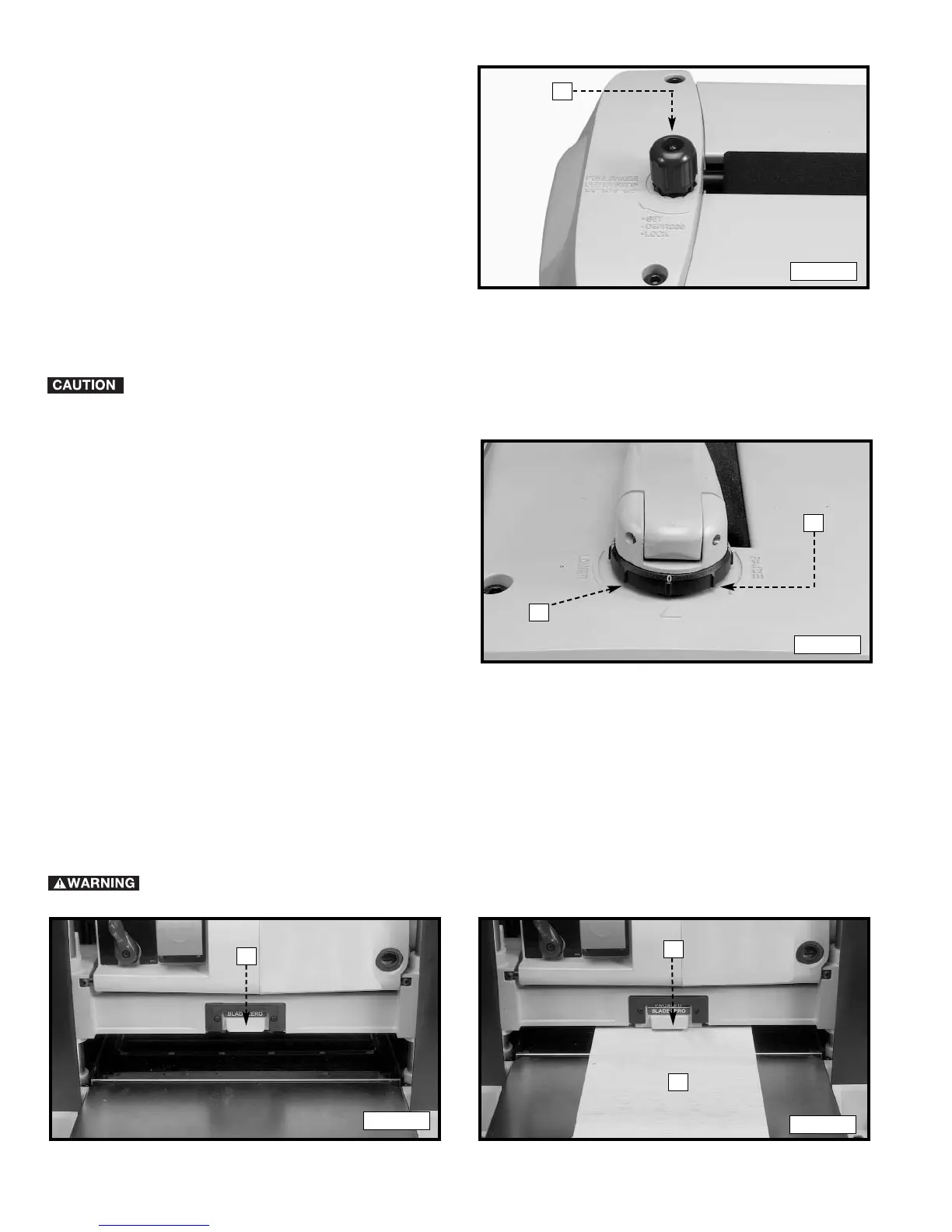

1. You can use the depth stop (A) Fig. 15 to set the
cutterhead to a pre-determined thickness. The stop
can be set at any depth from 1/8" to 6-1/2" for
repetitive planing.
2. To set the depth stop, lower the cutterhead to the
desired depth.
3. Rotate the depth stop knob (A) Fig. 15 clockwise,
while applying light downward pressure, until it
stops.
NOTE: If you rotate the depth stop knob past the
stopping point, the cutterhead adjusting handle will
start to move.
4. Push down on the depth stop knob and turn the
knob approximately 1/4 turn clockwise until the depth stop engages.
5. Raise the cutterhead to allow for the workpiece. As it is planed down, the cutterhead will stop at the height at which
the depth stop was engaged.
6. To disengage the depth stop, raise the cutterhead 1/2 turn, and turn the depth stop knob counter-clockwise.
Disengage the depth stop when it is not being used.
The blade zero indicator marks exactly where the cutterhead and the workpiece make contact, and allows you to
measure your cuts precisely. To set the indicator:
1. Push down on the zero indicator (A) Fig. 17 to engage.
2. Place the end of the board (B) Fig. 18 underneath the blade zero indicator(A).
3. Lower the cutterhead until the workpiece contacts the bottom of the zero indicator (A) Fig. 18
4. When the zero indicator has been contacted, it will disengage.
NOTE: Lower the cutterhead slowly when using the zero indicator so that the cutterhead does not go beyond the
disengagement spot.
Do not plane with the blade zero indicator engaged.
The cutterhead adjusting handle has an adjustment ring (A)
Fig. 16. To use the adjustment ring to make fine
adjustments:
1. Measure the thickness of a planed board.
2. Set the zero position of the ring to align with the arrow.
3. Rotate the handle to the desired depth of cut, as
indicated on the ring. Each indicator on the ring is
equivalent to 1/128" for making minute cuts.
4. Plane the workpiece.
Fig. 15
Fig. 16
Fig. 17
Fig. 18
FULL RANGE DEPTH STOP
ADJUSTABLE INDEXING RING
BLADE ZERO INDICATOR
A
A
A
A
B
B

Delta 22-580 Specifications

General

Type	Benchtop Planer
Motor	15 Amp
Cutting Width	13 inches
Maximum Cutting Depth	1/8 inch
Cutterhead Speed	10, 000 RPM
Feed Rate	26 feet per minute
Number of Knives	2
Dust Port Size	2.5 inches
