LUBRICATION OF GEARS

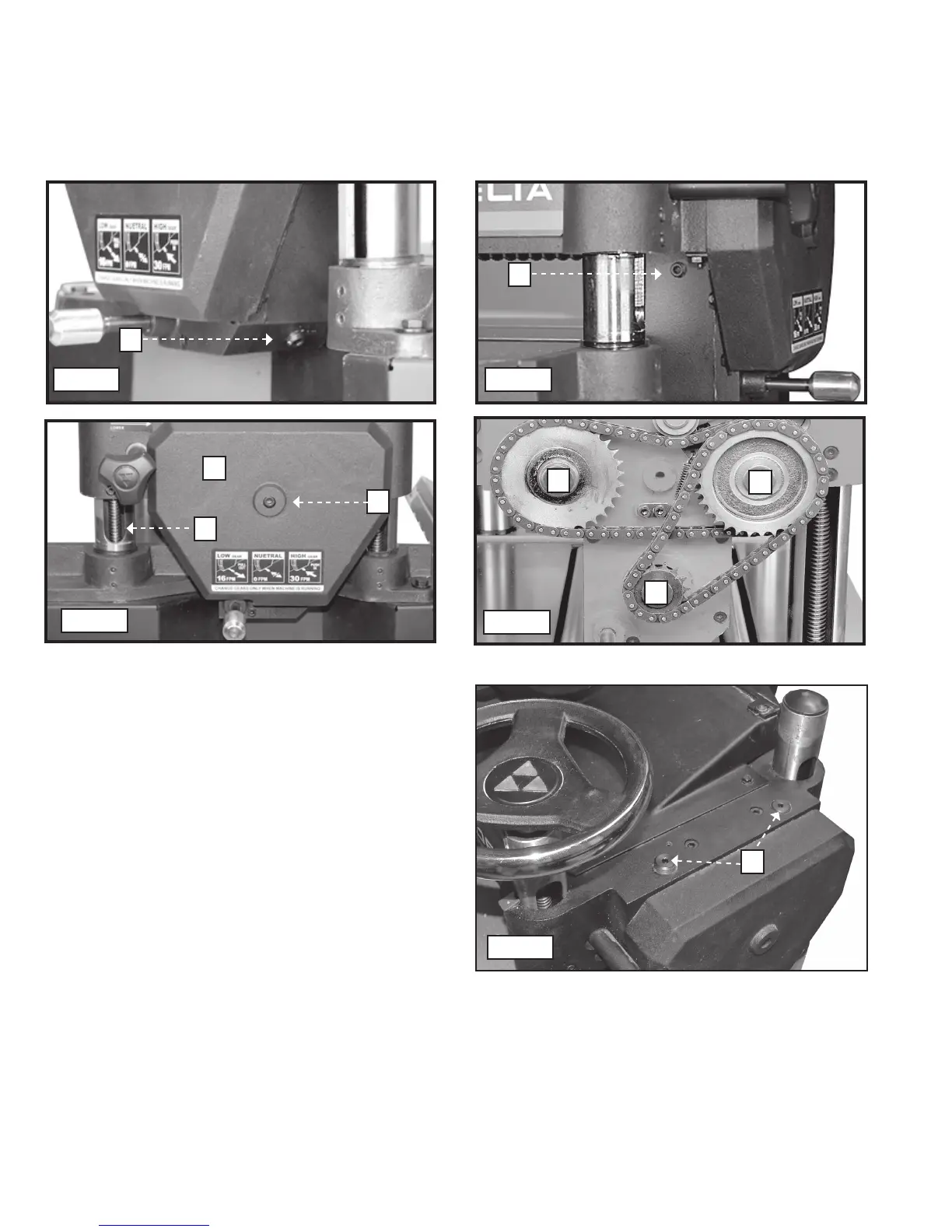

Fig. 62 Fig. 63
Fig. 64
Fig. 65
A
B
D
C
E
F
F
F
LUBRICATION OF INFEED/OUTFEED
ROLLERS
The infeed and outfeed rollers can be lubricated through
top of the planer head.
NOTE: The other two holes are located on the other side
of the planer head, just above the ends of the infeed and
outfeed rollers.
66 every 50 hours of use.
