8
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE
- provided
- provided
- provided
- provided
Assembly for this machine takes approximately 1 hour.
For your own safety, do not connect the machine to the power source until the machine is completely
assembled and you read and understand the entire instruction manual.
- provided
- provided
7. 10, 12, 14, 17 mm Sockets - not provided
8. 2 -
2 x 4’s - not provided

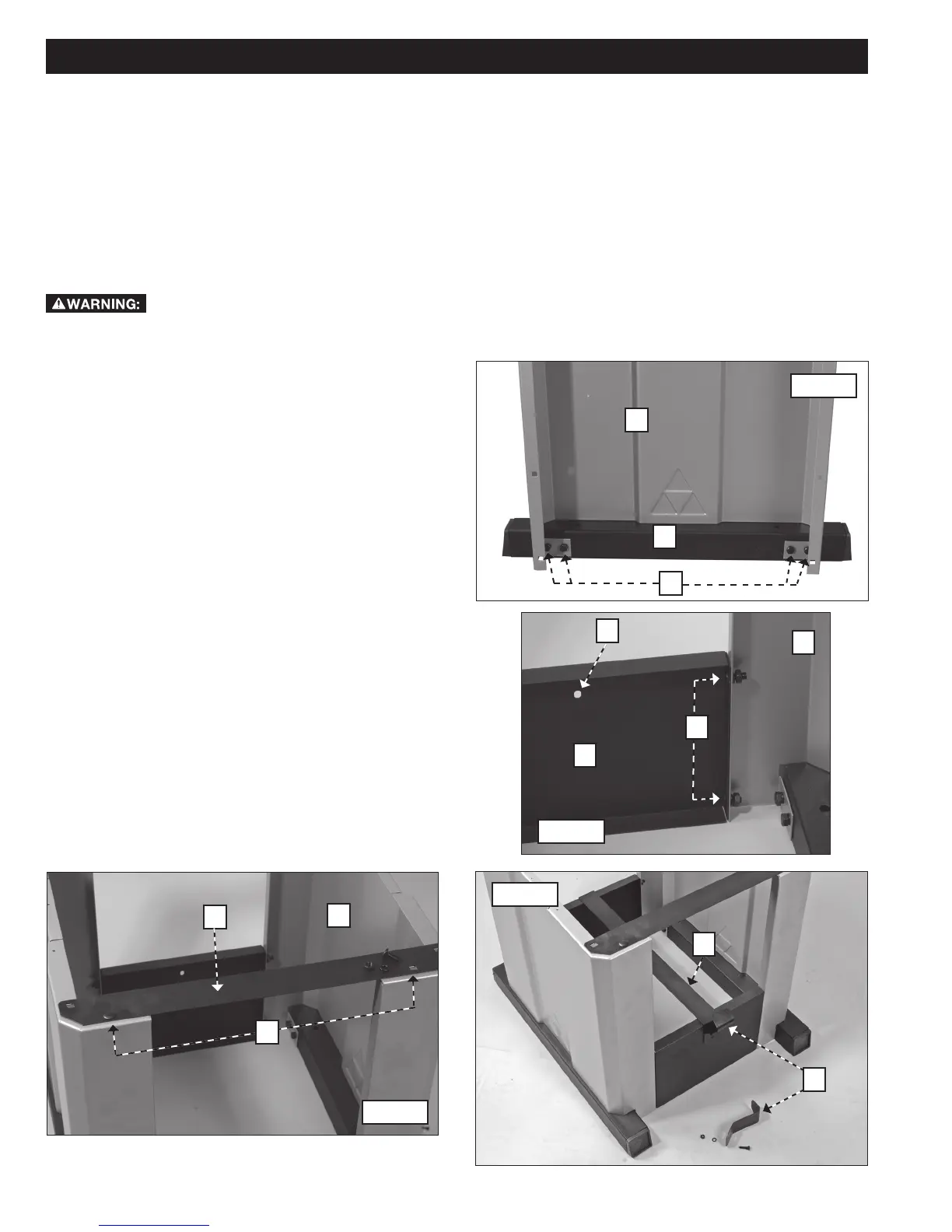

HOW TO ASSEMBLE STAND
NOTE:
oriented as shown in Fig. 2.
To assemble, place M8 carriage head bolt through end
an M8 lock washer and M8 hex nut onto end of M8
carriage head bolt and tighten in place. Repeat for all
four holes in each end panel.
carriage head bolts down through top bracket and then
the side panel. Place M8 lock washers and then M8 hex
nuts onto carriage head bolts and tighten.
shown in Fig. 4. Insert two M6 hex head bolts through
clips, then leg support and then end panel. Place M6
lock washer then M6 hex nut on M6 hex head bolt and
Fig. 1
Fig. 2
A
B
C
A
D
E
F
Fig. 3
G
H
A
Fig. 4
I
J
