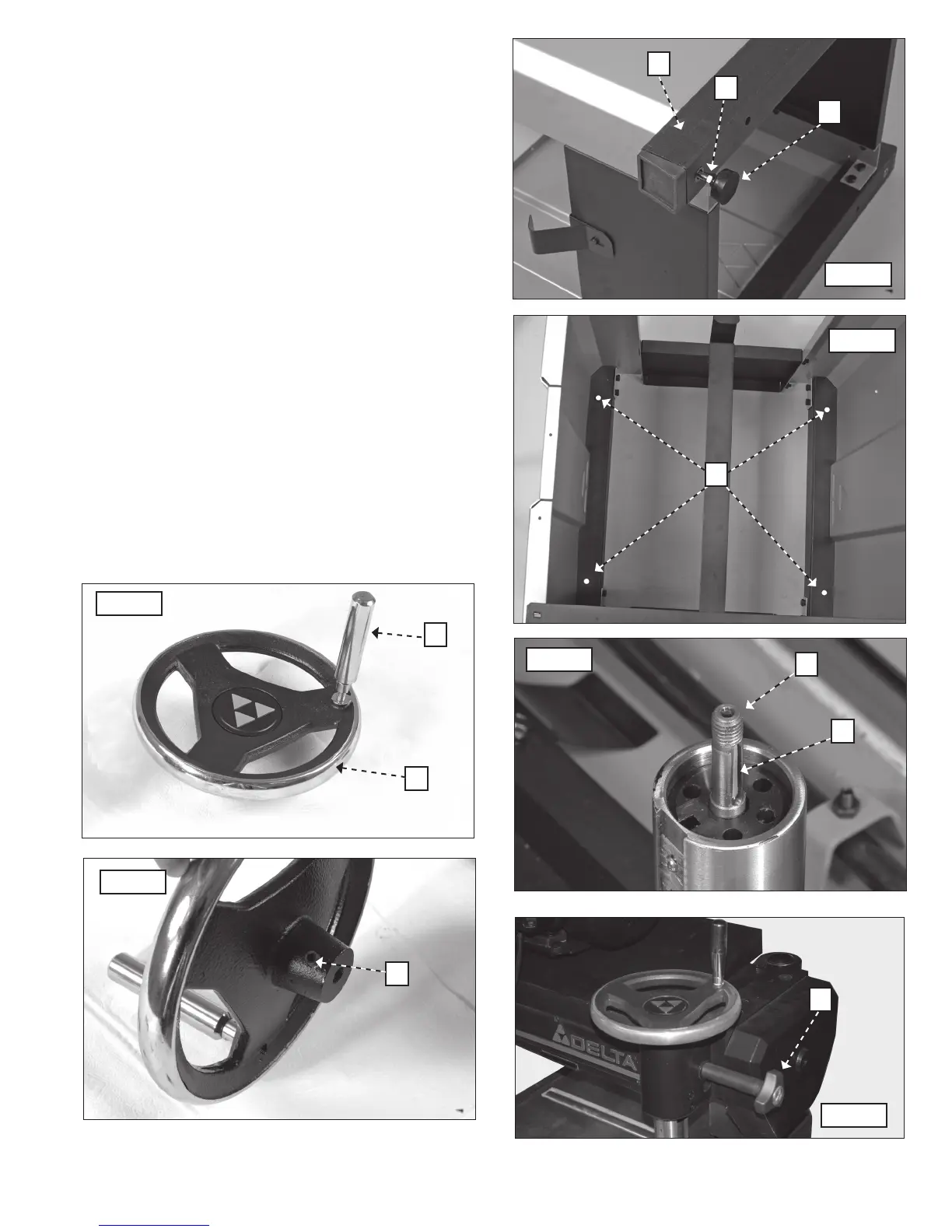

ATTACHING LEVELING FEET
1. Turn stand over on its side and attach four leveling feet
2. Turn machine upright and rotate leveling feet until
machine is level.
3. Tighten jam nuts.
ATTACHING PLANER STAND TO FLOOR
If you desire, you can secure the stand to the floor. You can
ATTACHING HANDWHEEL
Use 12 mm open end wrench on flats to tighten.
Fig. 8 in elevation shaft.
NOTE:
3. Raise head assembly and remove shipping brace.
M
Fig. 5
Fig.6
S
Fig. 10
K
L
N
B
O
P
R
Q
Fig.7
Fig. 8
Fig. 9
To Next Page
