7
ATTACHING THE SWITCH
A push-button switch (mounted in a switch box), and a cord
set are supplied with the unit. To attach the switch to the band
saw arm, do the following:
1.
DISCONNECT TOOL FROM POWER SOURCE.

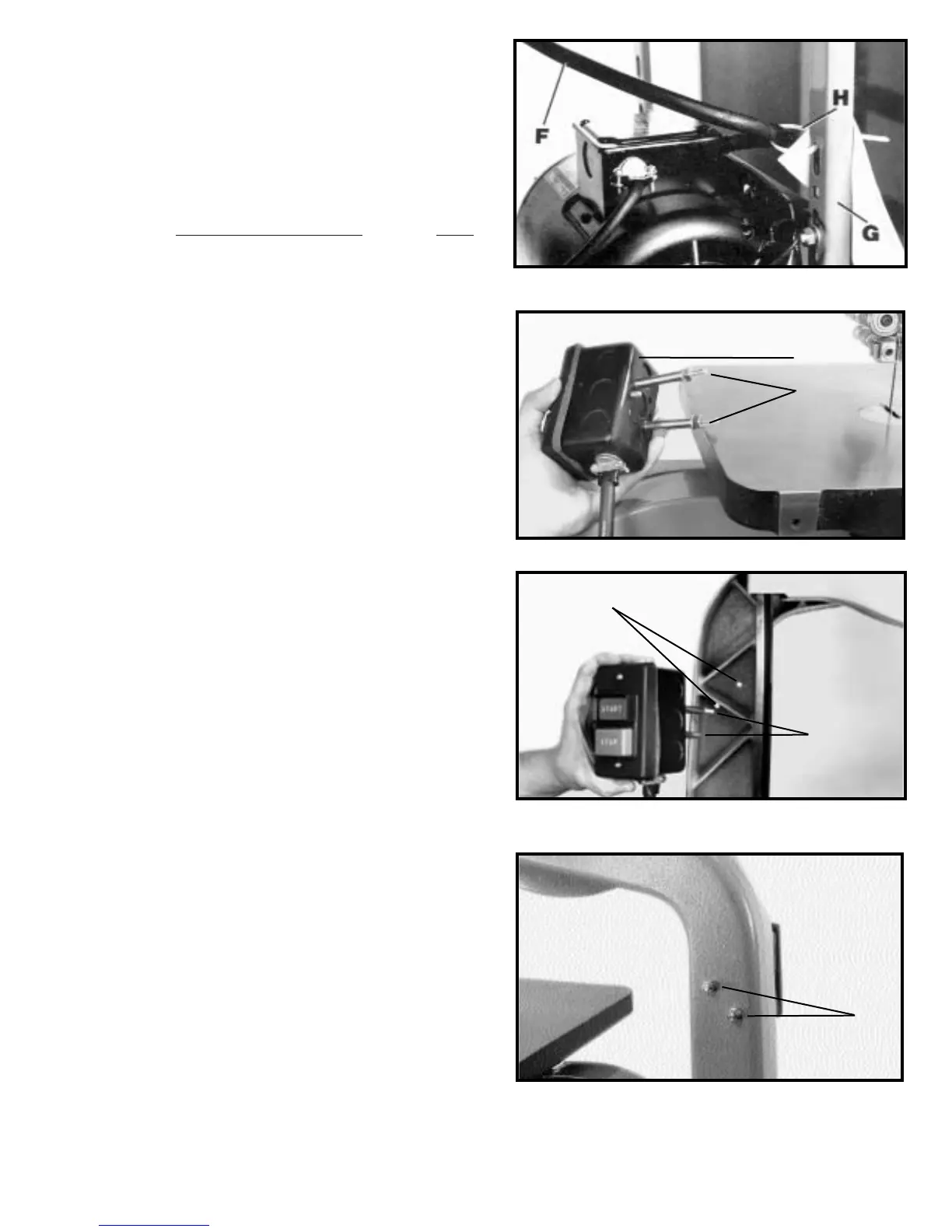

2. CAUTION: The on/off switch-to-motor cord (F) Fig. 11 is
tied to the vertical mounting post (G) opposite the motor pulley.
This cable tie (H) prevents the switch-to-motor cord (F) from
contacting the belt or motor pulley during operation of the unit.
IMPORTANT: Leave this cable tie in place.
Remove it ONLY
when using the Accessory Height Attachment with the tool.
3. Remove the two outer hex nuts and lock washers (A) Fig.
12, from the two screws extending out from the back of the
switch box (B).
4. Insert two screws (C) Figs. 13, located on back of switch
box, into two holes (D) located in the band saw arm.
5. Use the two nuts and lockwashers (E) Fig. 14, removed in
STEP 3, to fasten the switch box to the bandsaw arm (Fig. 14).
Fig. 11
Fig. 12
Fig. 13
Fig. 14
A
B
C
D
E
