6. Remove the screw and cable clamp (E) Figs. 15 and 16 from
the lower arm of the band saw.
7. Insert the switch cord (F) Fig. 16, into the clamp (E)
(removed in STEP 6), and fasten the switch cord (F) to the
bandsaw.
IMPORTANT: Be certain to prevent contact between the on/off
switch-to-motor cord (F) Fig. 16 and the motor pulley or belt. If
necessary, adjust the cord, then tighten the cable tie (H) Fig.11.
8. Attach the two side panels removed earlier.
STARTING AND
STOPPING SAW
To start the tool, press the “START” button (K) Fig. 17. To stop
the tool, press the “STOP” button (L) Fig. 17.
LOCKING SWITCH IN
THE OFF POSITION
IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use, using a padlock (M) Fig. 18 with a
3/16" diameter shackle.

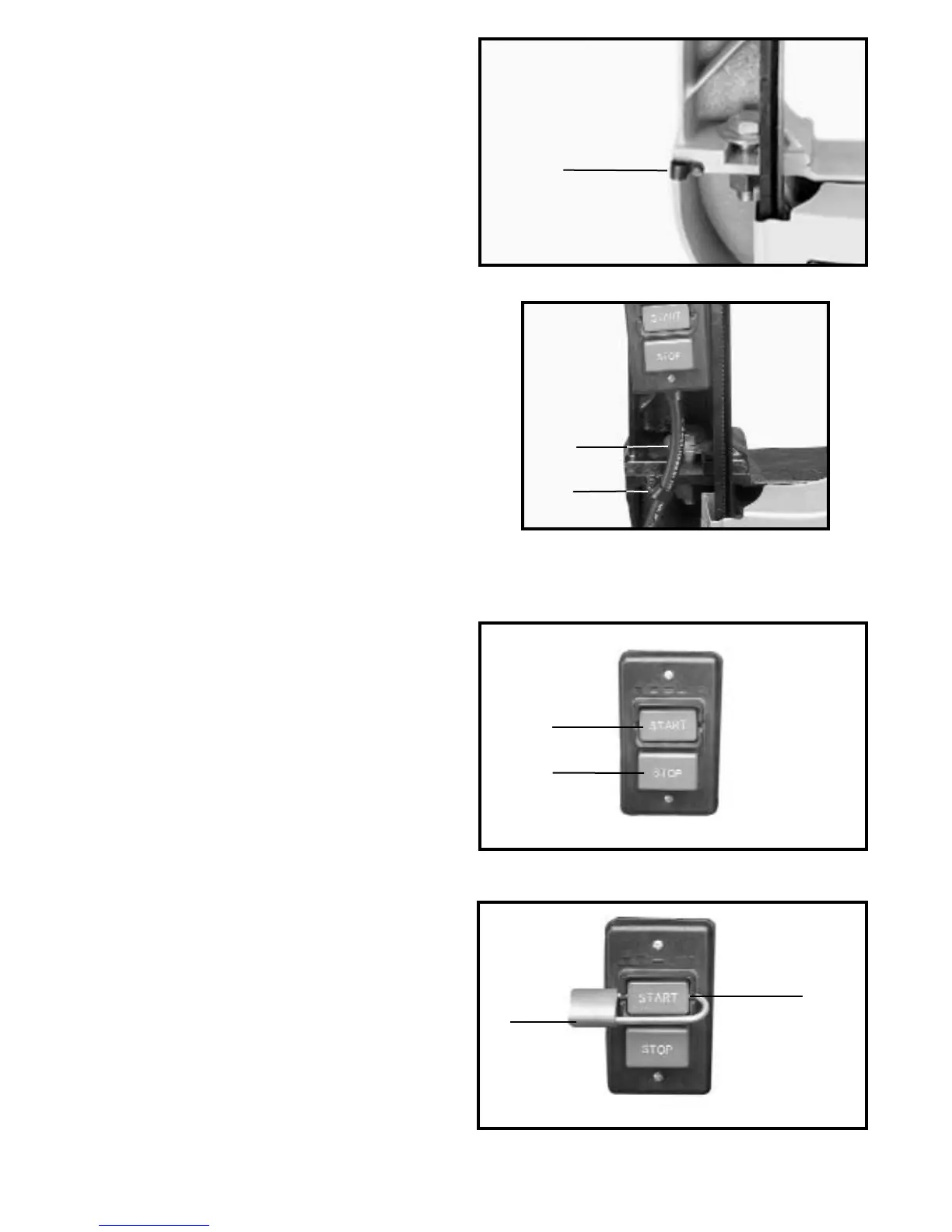

Fig. 15
Fig. 16
E
E
F
K
L
K
M
