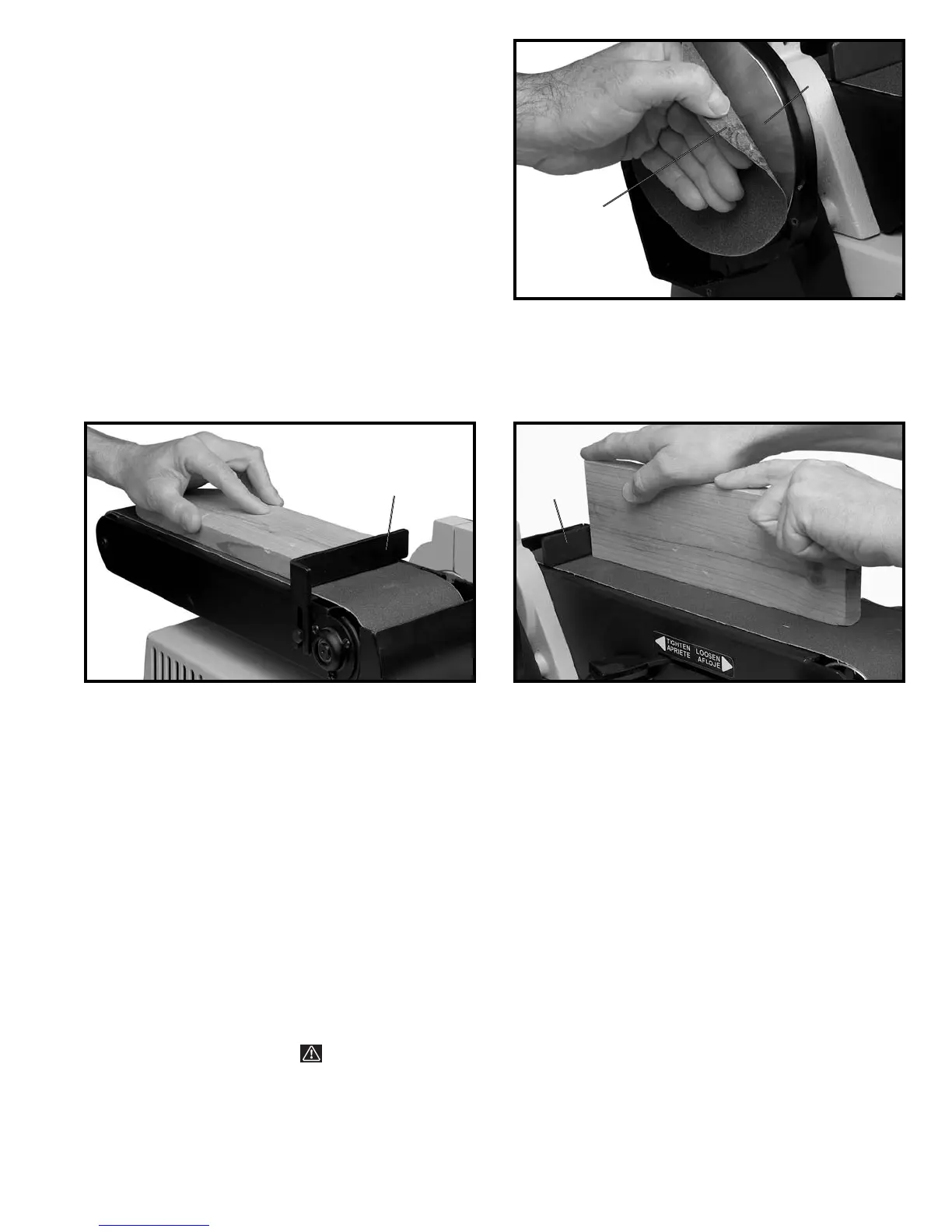

4. Peel off old disc (E) as shown in Fig. 44.
5. Make sure the disc plate (F) Fig. 44, is clean and
peel backing from new sanding disc. Press the new
sanding disc firmly into position on disc plate (F) and
replace lower cover and table assembly which were
removed in STEPS 2 and 3.
OPERATION
Fig. 45 Fig. 46
SURFACING OR EDGE SANDING
WITH SANDING BELT
When surfacing, see Fig. 45, or edge sanding, see Fig.
46, the sanding arm is in the horizontal position and the
backstop (A) Fig. 45 and Fig. 46, must always be used to
prevent the workpiece from being carried along the belt.
Always hold the workpiece firmly, keeping your fingers
away from the sanding belt. Always keep the end of the
workpiece against the backstop and move the
workpiece evenly across the sanding belt. Apply only
enough pressure to allow the sanding belt to remove
material. Use extra caution when sanding very thin
pieces.
WARNING: THE EDGE OF THE BACKSTOP MUST
BE POSITIONED A MAXIMUM OF 1/16 INCH AWAY
FROM THE SANDING BELT TO AVOID TRAPPING
THE WORK OR FINGERS BETWEEN THE BACKSTOP
AND SANDING BELT.
E
F
A
A
