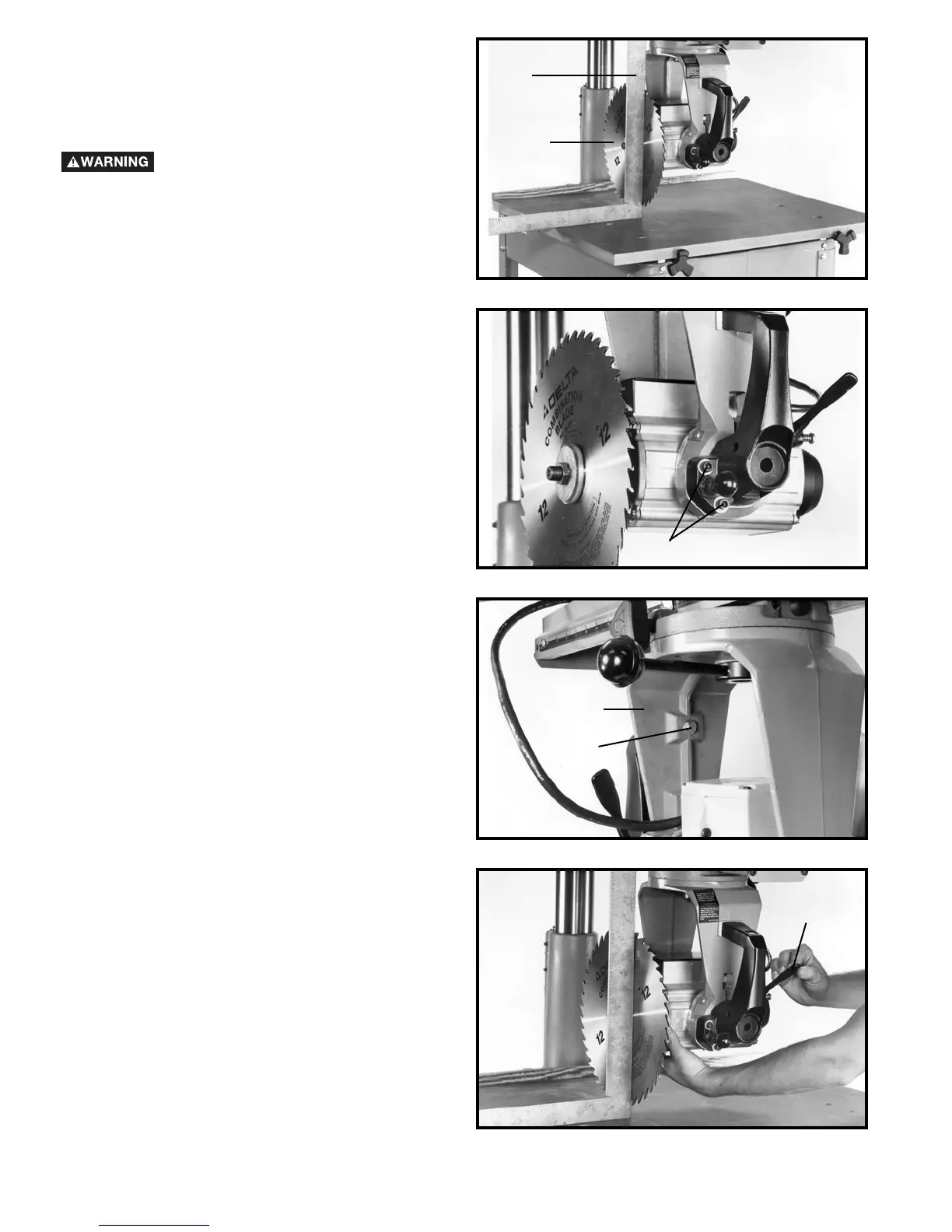

ADJUSTING BLADE SQUARE WITH
TABLE TOP
The saw blade must be square with the table top in
order to produce accurate work. To check if the blade is
square with the table:
1. DISCONNECT MACHINE FROM
POWER SOURCE.
2. Remove the blade guard and place the cuttinghead
in a cross-cut position as shown in Fig. 42.
3. Place a steel square (A) Fig. 42, against saw blade
(B) and table, and check to see if the blade (B) is square
with the table. Make certain the square is between the
teeth of the saw blade.
4. If the blade is not square with the table an
adjustment is necessary. Loosen two bolts (C) Fig. 43.
5. Loosen screw (D) Fig. 44, located inside of yoke (E).
6. Hold cuttinghead with left hand as shown in Fig. 45,
loosen bevel clamp handle (F) and tilt the motor until the
saw blade is flush against the square.
A
B
C
E
D
F
