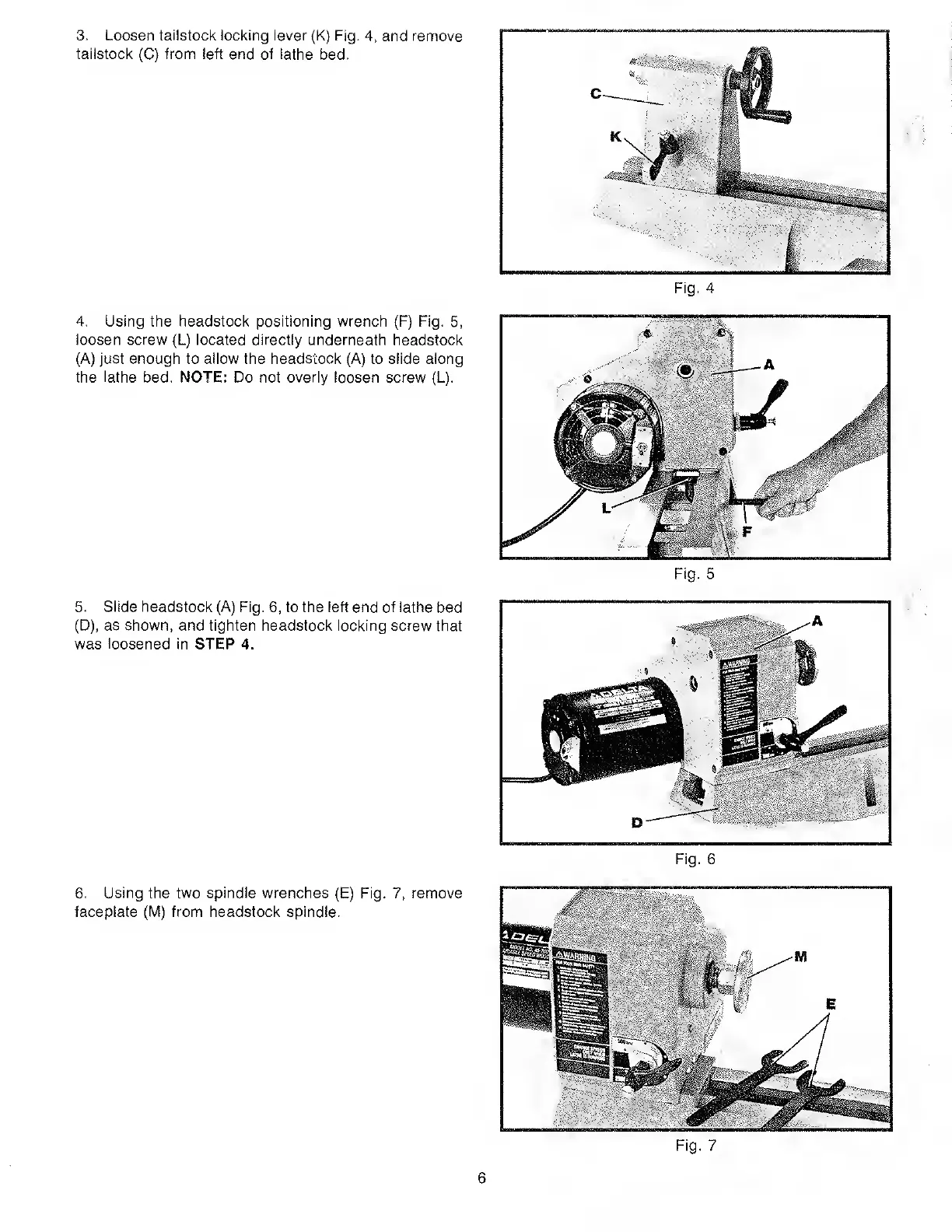

3.
L
oosen
tailstock
locking
lever
(K)
Fig.
4,
and
remove
tailstock
(C)
from
left
end
of
lathe
bed.
4.
U
sing
the
headstock
positioning
wrench
(F)
Fig.
5,
loosen
screw
(L)
located
directly
underneath
headstock
(A)
just
enough
to
allow
the
headstock
(A)
to
slide
along
the
lathe
bed.
NOTE:
Do
not
overly
loosen
screw
(L).
5.
S
lide
headstock
(A)
Fig.
6,
to
the
left
end
of
lathe
bed
(D),
as
shown,
and
tighten
headstock
locking
screw
that
was
loosened
in
STEP
4.
Fig.
4
6.
U
sing
the
two
spindle
wrenches
(E)
Fig.
7,
remove
faceplate
(M)
from
headstock
spindle.
6
Fig.
7
