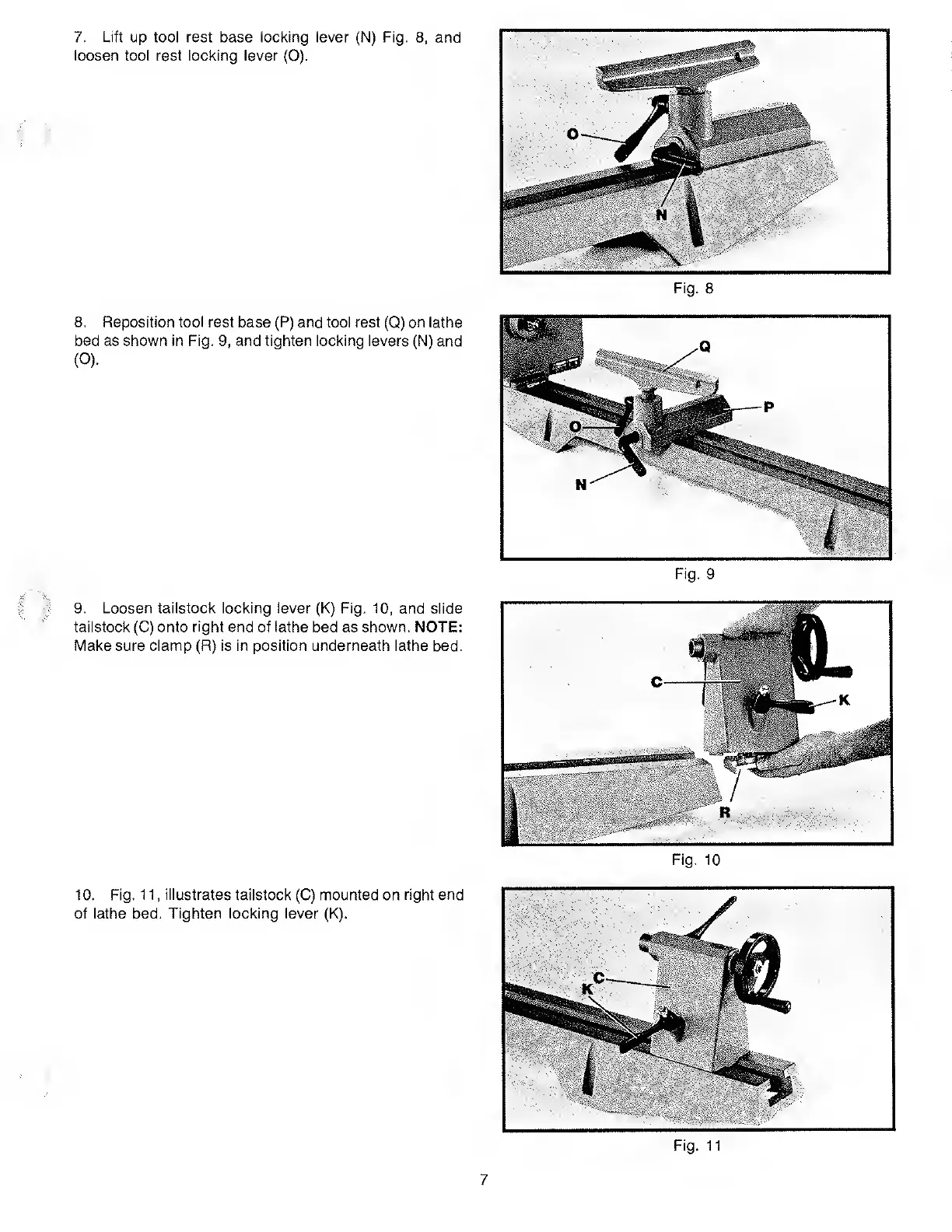

7. L ift up tool rest base locking lever (N) Fig. 8, and
loosen tool rest locking lever (0).
8. R eposition too! rest base (P) and tool rest (Q) on lathe
bed as shown in Fig. 9, and tighten locking levers (N) and
(O).
9. L oosen tailstock locking lever (K) Fig. 10, and slide
tailstock (C) onto right end of lathe bed as shown. NOTE:
Make sure clamp (R) is in position underneath lathe bed.
10. F ig. 11, illustrates tailstock (C) mounted on right end
of lathe bed. Tighten locking lever (K).
