Amplon MX Series

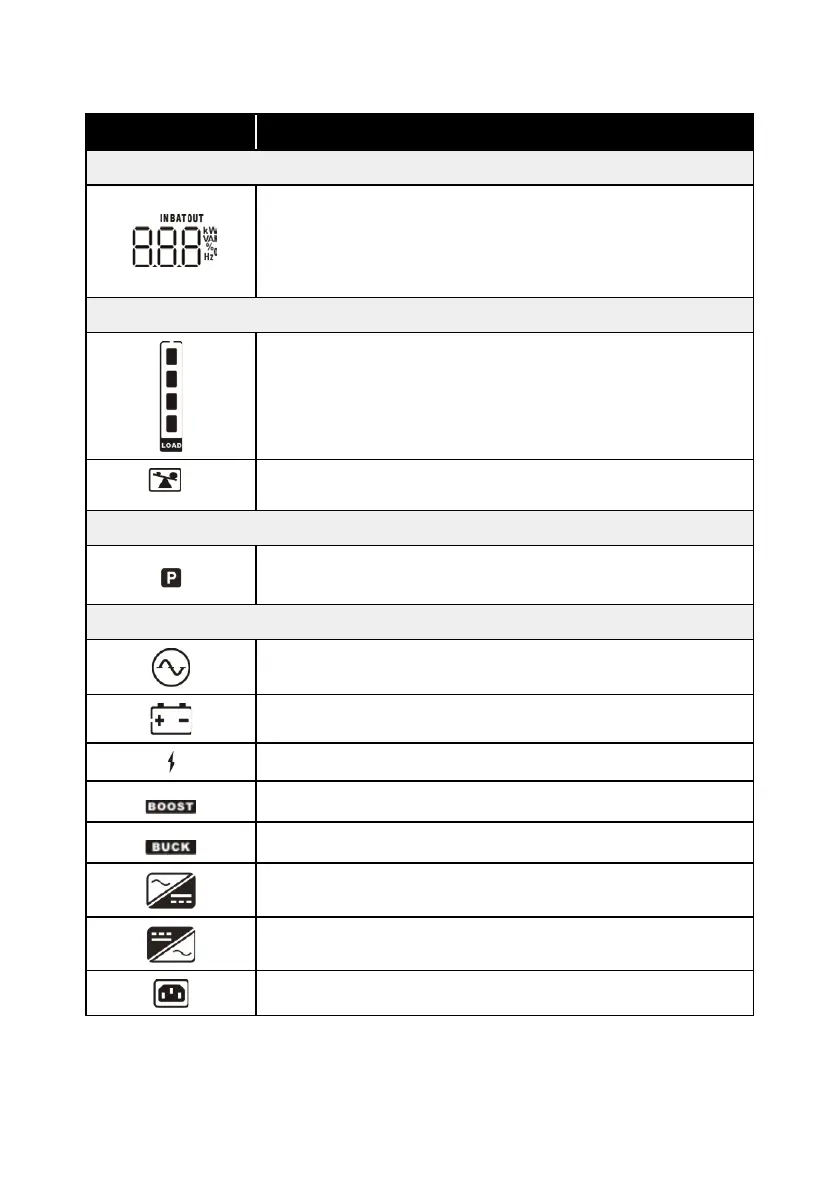

Display Function
Input, Battery, Temperature, Output & Load information
Indicate the input voltage, input frequency, battery voltage,
battery capacity, ambient temperature, output voltage,
output frequency, load current and load percentage.
k: kilo, W: watt, V: voltage, A: ampere, %: percent, ℃: centigrade degree, Hz: frequency
Load information
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-
100%.
Indicates overload.
Programmable outlets information
Indicates that programmable management outlets are
working.
Mode operation information
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Indicates the inverter circuit is working.
Indicates the output is working.
Indicates the AC to DC circuit is working.
Indicates the inverter circuit is working.
Indicates the output is working.
