2.4 Setup the UPS
Step 1: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using
extension cords.
z
z
The power cord is attached to the UPS. For the type of power cord, please refer
to the table below.
UPS Type of Power Cord
1.1kVA Plug 10A Schuko or AU
2kVA Plug 16A Schuko or AU
3kVA Plug 16A Schuko or AU
Step 2: UPS output connection
There two kinds of outputs: programmable outlets and general outlets. Please
connect non-critical devices to the programmable outlets and critical devices to the
general outlets. During power failure, you may extend the backup time to critical
devices by setting shorter backup time for non-critical devices.

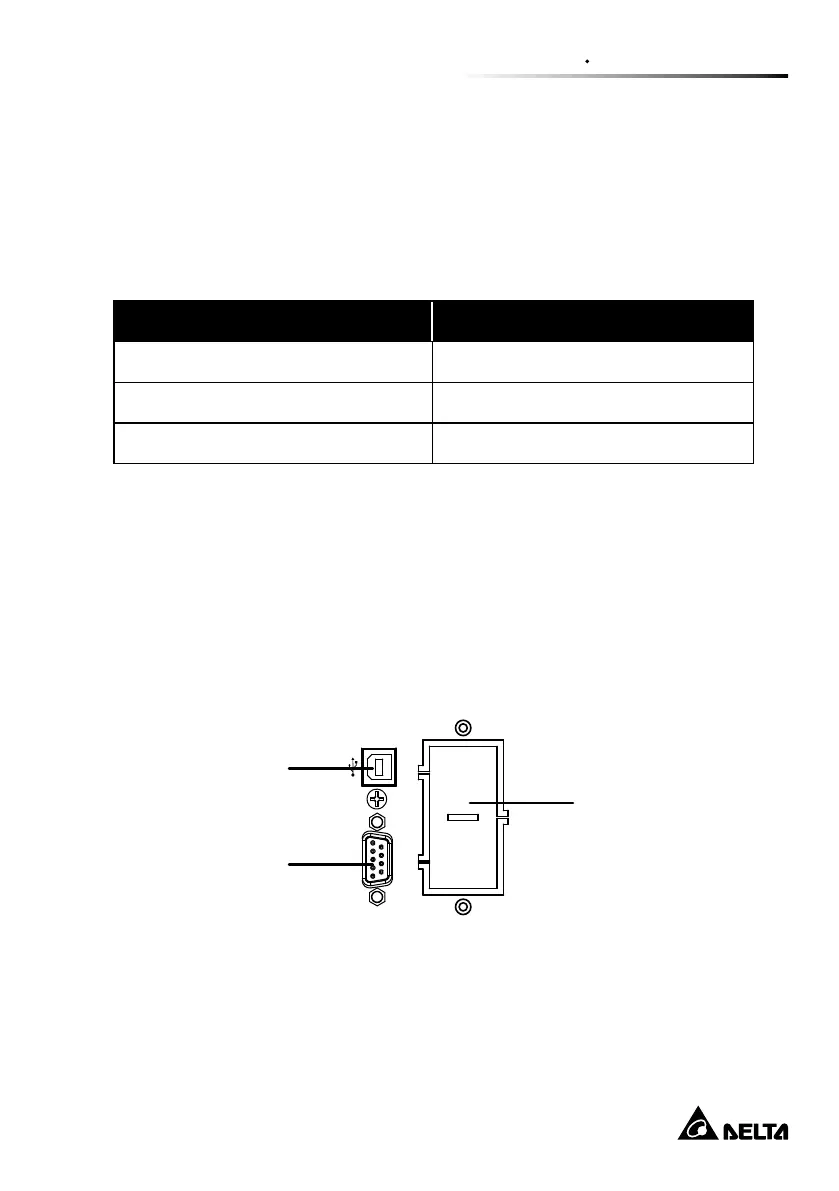

Step 3: Communication connection
RS-232
MINI SLOT
USB port
RS-232 port
Mini slot
