Amplon MX Series

2.6 Battery Kit Assembly (option)

NOTE :

Please assemble battery kit rst before installing it inside of UPS.

Please select correct battery kit procedure below to assemble it.

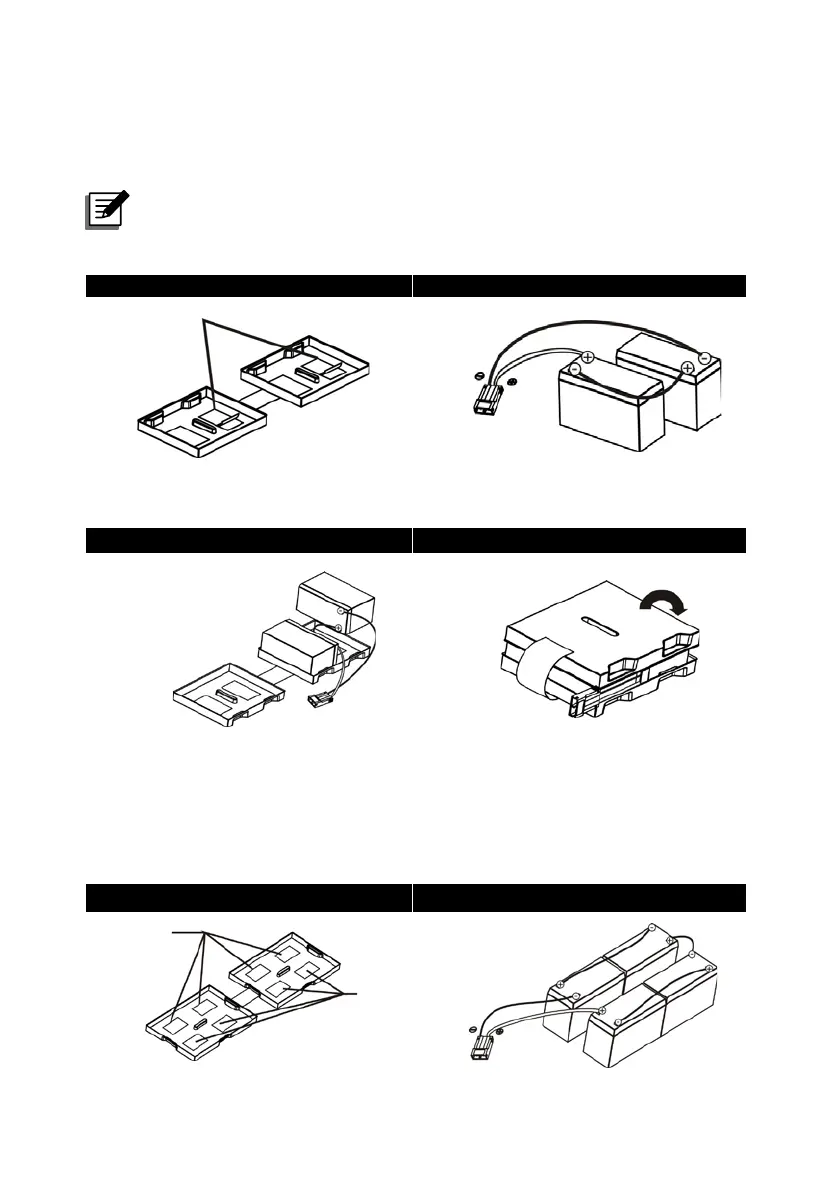

2-battery kit

Step 1 Step 2

Remove adhesive tapes. Connect all battery terminals by follow-

ing below chart. .

Step 3 Step 4

Put assembled battery packs on one

side of plastic shells and insert one

more defect battery on the space.

Cover the other side of plastic shell as

below chart. Then, battery kit is assem-

bly well.

4-battery kit

Step 1 Step 2

Remove adhesive tapes Connect all battery terminals by follow-

ing below chart.

Tapes

Delta Amplon MX Series User Manual
