Delta AS16AP11P-A User Manual

Chapter 2 Specifications and System Configuration
2-12
2_
Number
Name
Description
1
20-pin MIL connector
Connects the external terminal module and a wiring module
2
Terminals
Input/Output terminals for wiring
3
2-pin power input terminal
Power input terminal for wiring
4
Output LED indicator
If there is an output signal, the output LED indicator is ON.
5
Relay output
Relay output
6
Clip
Hangs the external terminal module on a DIN rail
7
Set screw
Fixes the base

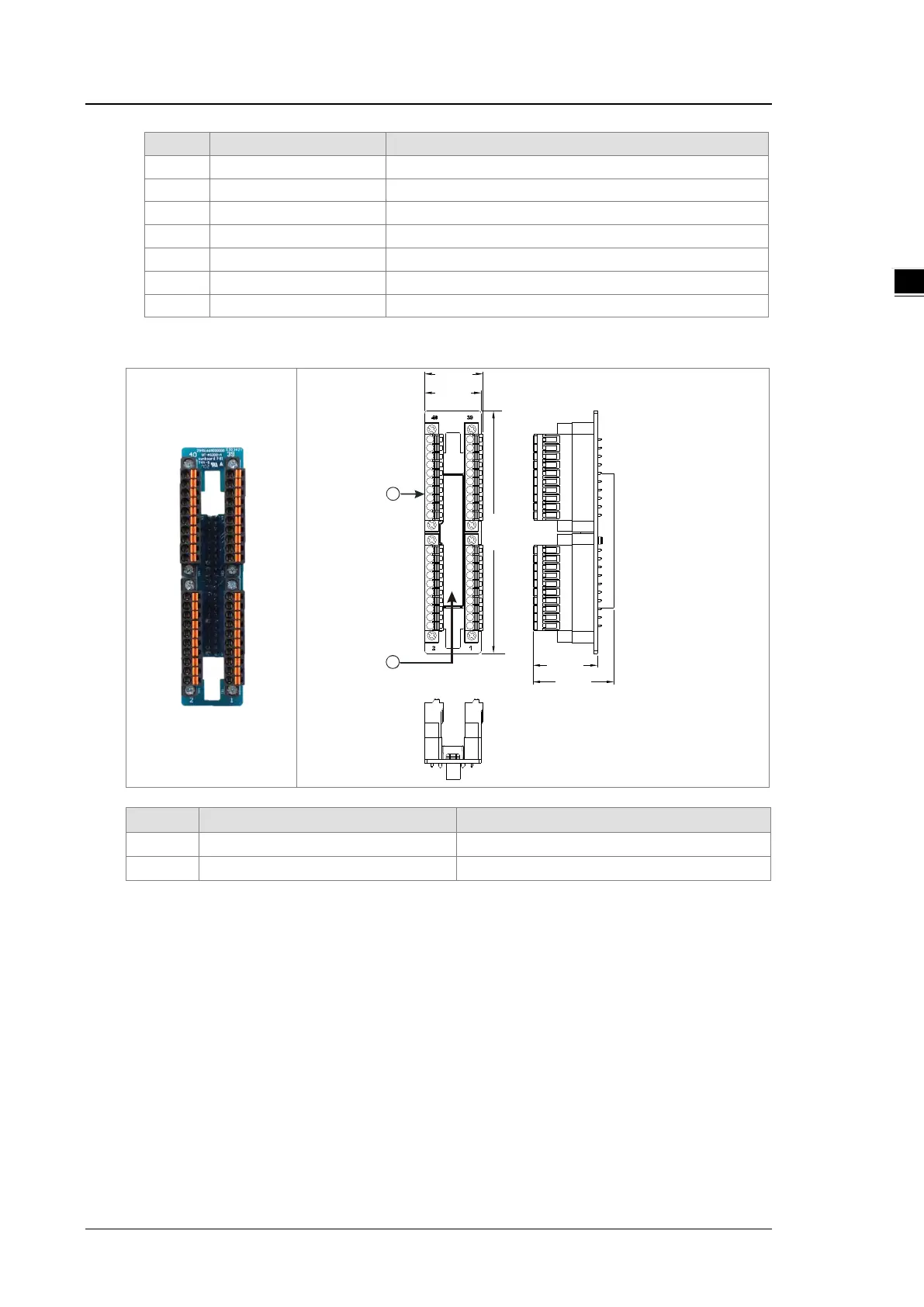

 Spring clamp/MIL connector terminal block UB-10-IO32D for AS332T-A/AS332P-A/AS324MT-A
23 6.
24 35.
26.9
33.7
101
1
2
Unit: mm
Number Name Description
1 Terminal block for output
Terminal block
2 40-pin MIL connector Connects the module and the wiring module
