ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-201

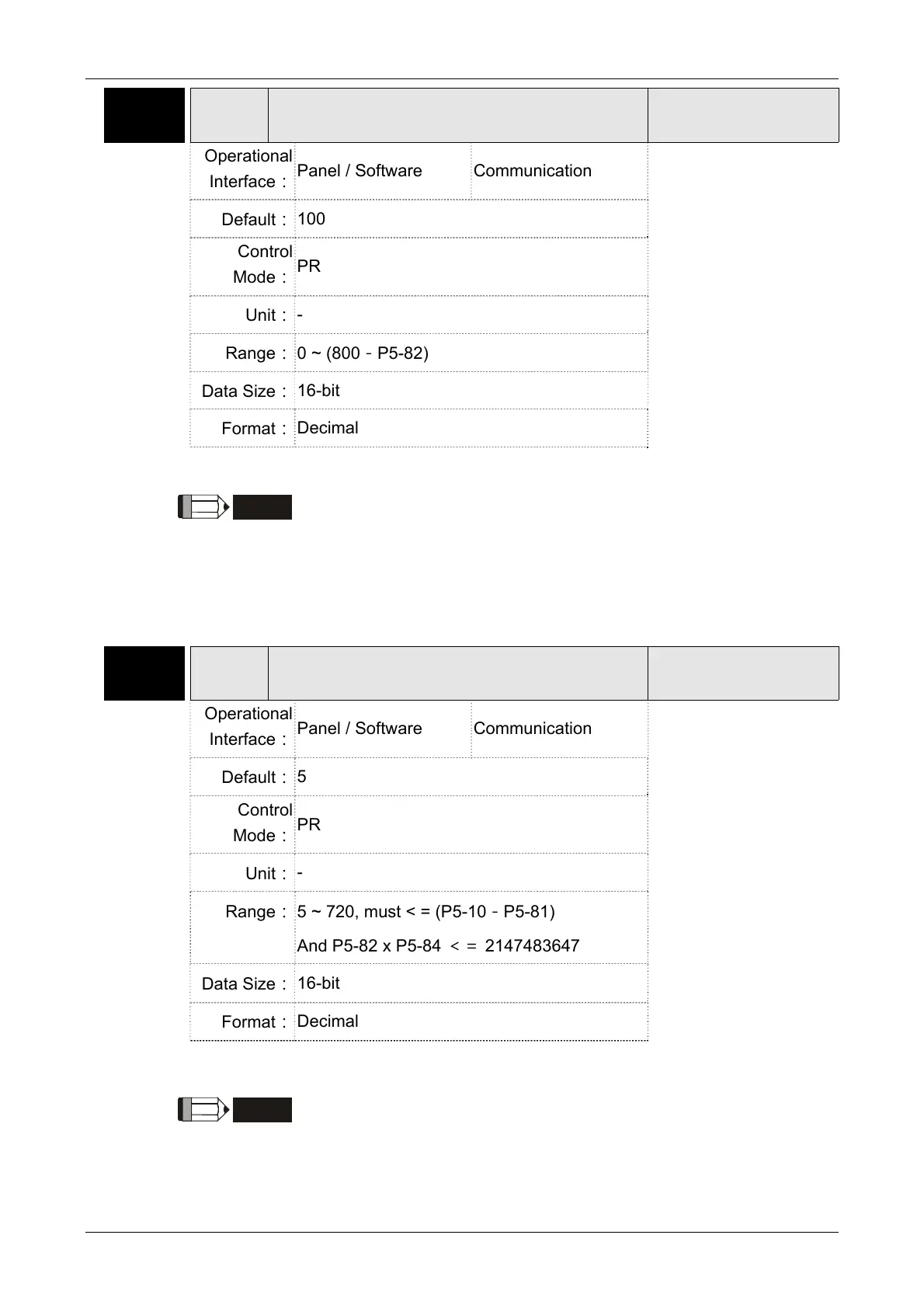

P5-81 ECHD E-CAM: Start Address of Data Array
Address: 05A2H
05A3H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
100
Control
Mode：
PR
Unit：
-
Range： 0 ~ (800－P5-82)
Data Size：
16-bit
Format：
Decimal
Settings：
The first data of E-Cam table is saved in the address of data array.
NOTE
1. Version V1.015 (before): This parameter cannot be modified when
E-Cam is activated (P5-88, X = 1).
2. Version V1.015 (included or after): This parameter can be set
anytime, but will be effective only when pre-engaged → engaged.
3. A2L does not support this function.
P5-82 ECMN E-CAM: Area Number N (at least >=5)
Address: 05A4H
05A5H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
5
Control
Mode：
PR
Unit：
-
Range： 5 ~ 720, must < = (P5-10－P5-81)
And P5-82 x P5-84 ＜＝ 2147483647
Data Size：
16-bit
Format：
Decimal
Settings：
It means the E-Cam curve is divided into N area, and the table should
include N+1 data.
NOTE
1. This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
2. A2L does not support E-Cam function.
