Chapter 8 Parameters ASDA-A2
8-202 Revision February, 2017

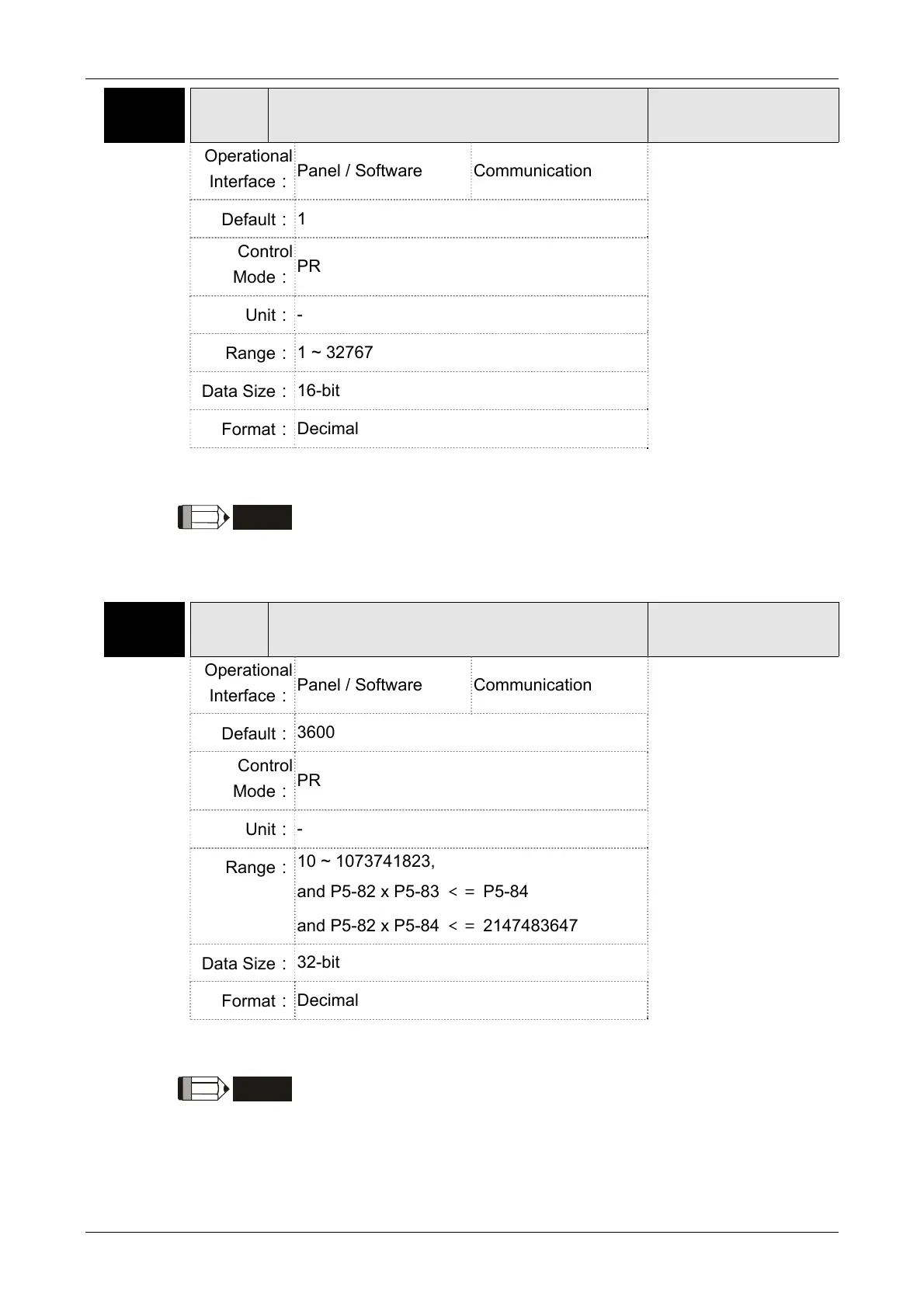

P5-83 ECMM E-CAM: Master Gear Ratio Setting M
Address: 05A6H
05A7H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
1
Control
Mode：
PR
Unit：
-
Range：
1 ~ 32767
Data Size：
16-bit
Format：
Decimal
Settings：
When receiving pulse number P of the Master, E-Cam will rotate M
circle, which means the M cycle of the E-Cam table.
NOTE
1. This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
2. A2L does not support E-Cam function.
P5-84 ECMP E-CAM: Master Gear Ratio Setting P
Address: 05A8H
05A9H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
3600
Control
Mode：
PR
Unit：
-
Range：
10 ~ 1073741823,
and P5-82 x P5-83 ＜＝ P5-84
and P5-82 x P5-84 ＜＝ 2147483647
Data Size：
32-bit
Format：
Decimal
Settings：
When receiving pulse number P of the Master, E-Cam will rotate M
circle, which means the M cycle of the E-Cam table.
NOTE
1. This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
2. This parameter can be modified anytime, and has no limit that
mentioned above.
3. A2L does not support E-Cam function.
