ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-57

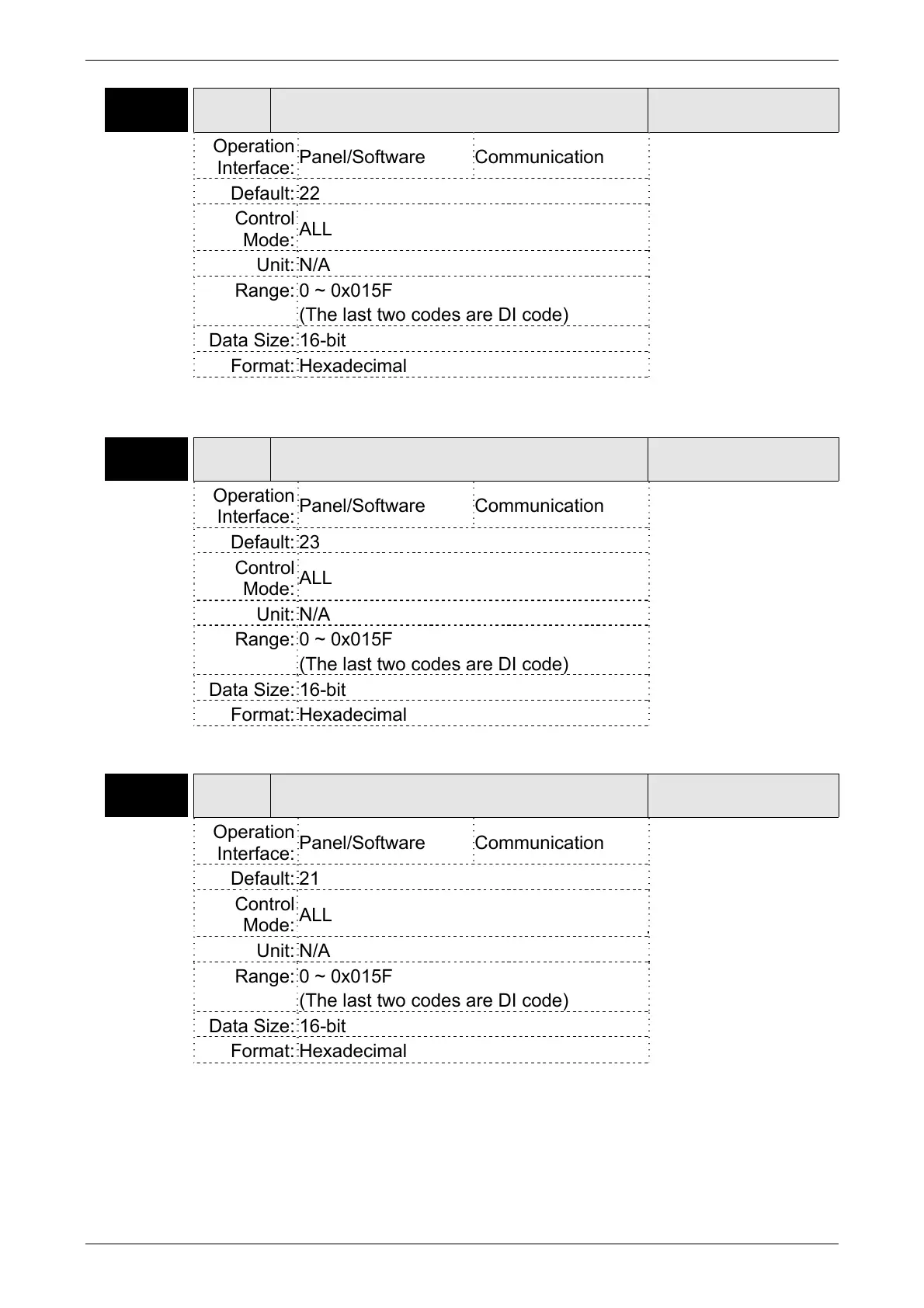

P2-15 DI6
DI6 Funcitonal Planning
Address: 021EH
021FH
Operation
Interface:
Panel/Software Communication
Related Section:
Table 7.1
Default: 22
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x015F
(The last two codes are DI code)
Data Size: 16-bit
Format: Hexadecimal
Settings: Refer to P2-10 for explanation.
P2-16 DI7
DI7 Funcitonal Planning
Address: 0220H
0221H
Operation
Interface:
Panel/Software Communication
Related Section:
Table 7.1
Default: 23
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x015F
(The last two codes are DI code)
Data Size: 16-bit
Format: Hexadecimal
Settings: Please refer to the description of P2-10
P2-17 DI8
DI8 Funcitonal Planning
Address: 0222H
0223H
Operation
Interface:
Panel/Software Communication
Related Section:
Table 7.1
Default: 21
Control
Mode:
ALL
Unit: N/A
Range: 0 ~ 0x015F
(The last two codes are DI code)
Data Size: 16-bit
Format: Hexadecimal
Settings: Please refer to the description of P2-10
