Delta ASD-B2-0121-B

ASDA-B2 Chapter 3 Wiring
Revision May, 2018 3-41

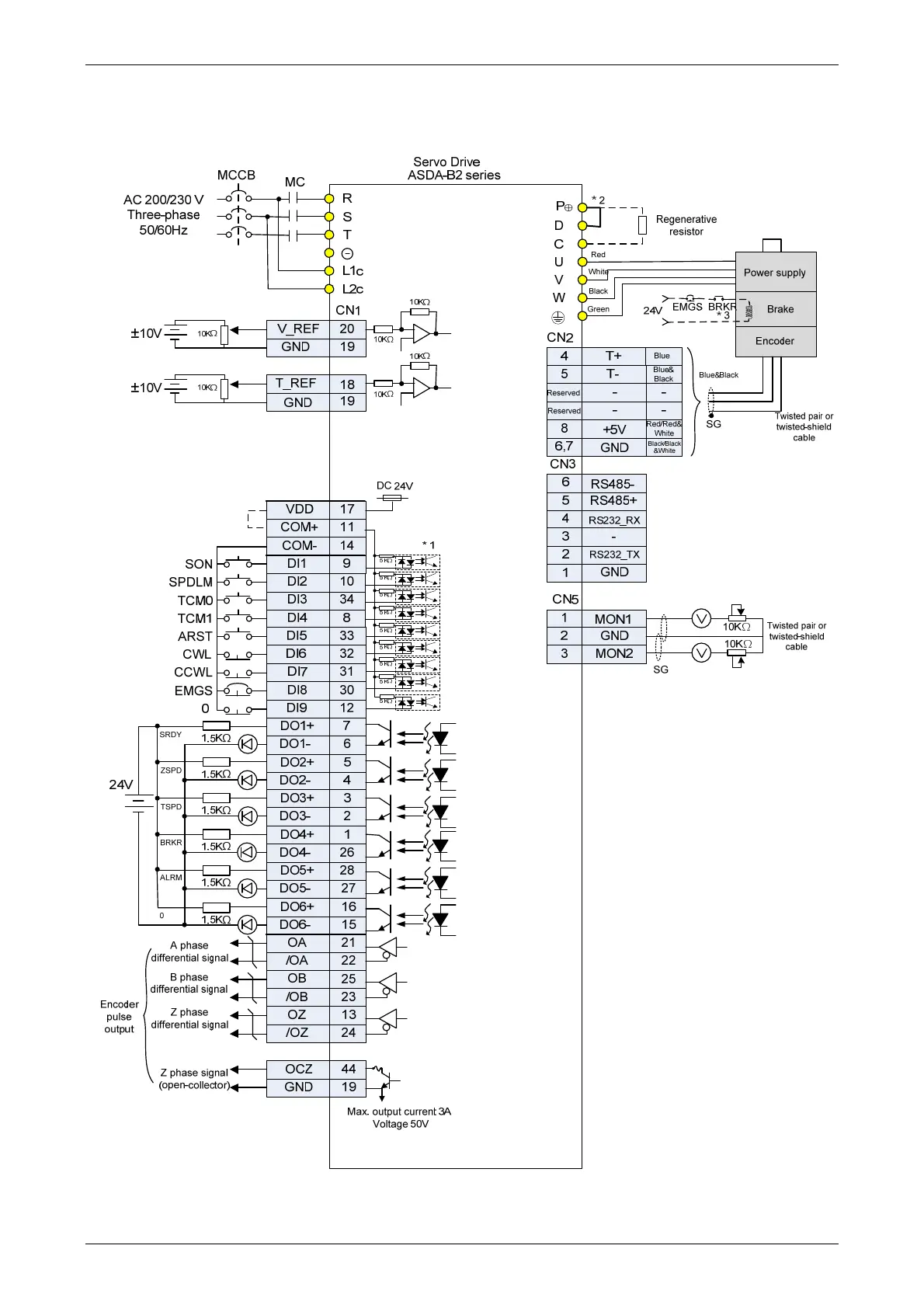

3.7.3 Torque Control Mode
Please note:
*1. Please refer to C9 ~ C12 wiring
diagrams (SINK / SOURCE mode) in
section 3.3.3.
*2. The servo drive provides built-in
regenerative resistor.
*3. The brake coil has no polarity.
