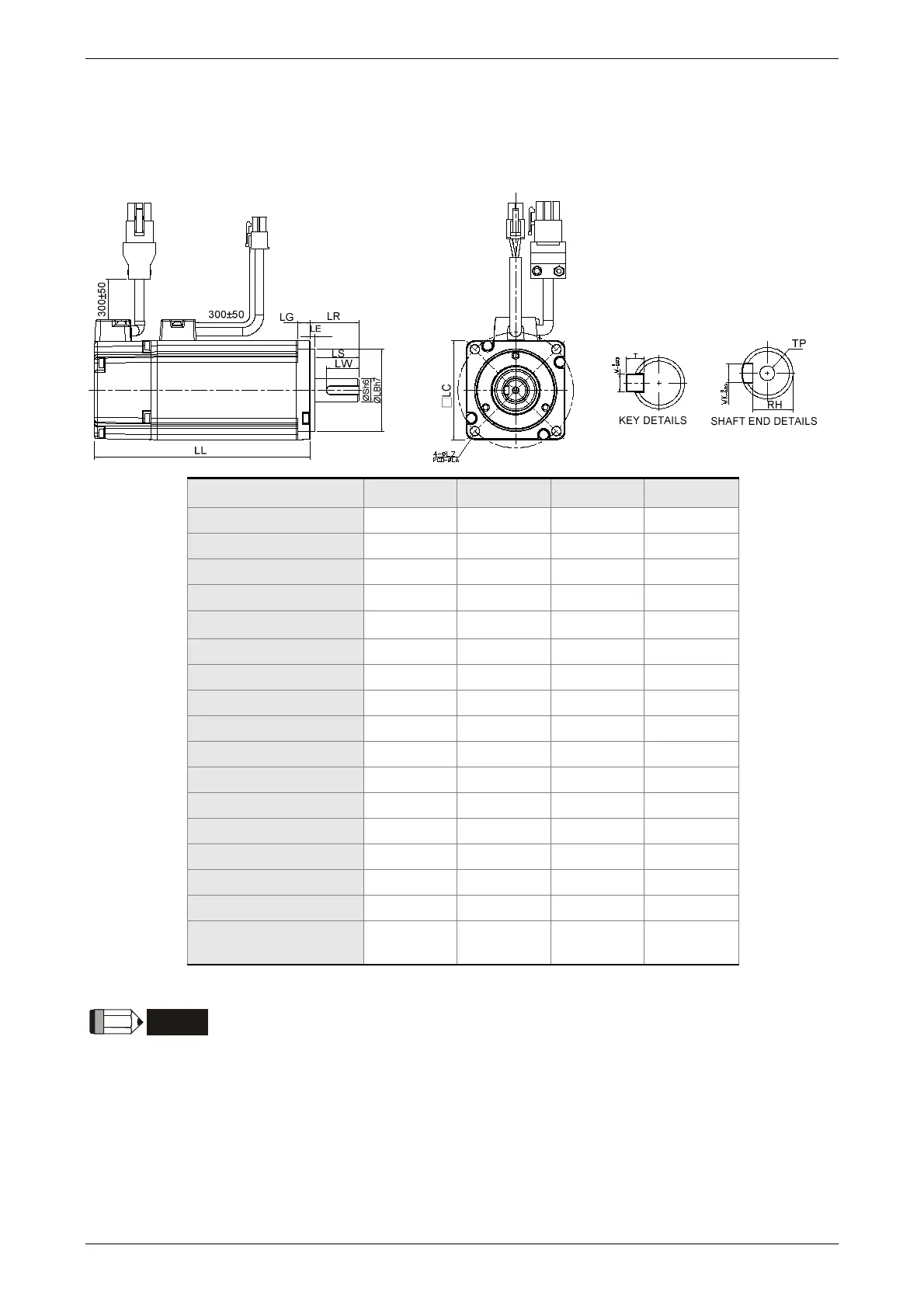

10.6 Dimensions of Servo Motors
Motor Frame Size: 86 mm and below Models (Units: mm)
Model
C△0401□S C△0602□S C△0604□S C△0604□H
LC 40 60 60 60
LZ 4.5 5.5 5.5 5.5
LA 46 70 70 70
S
)
(
.
8
0
0090
+
++
+
−
−−
−
)
(
.
14
0
0110
+
++
+
−
−−
−
)
(
.
14
0
0110
+
++
+
−
−−
−
)
(
.
14
0
0110
+
++
+
−
−−
−
LB
)
(
.
30
0
0210
+
++
+
−
−−
−
)
(
.
50
0
0250
+
++
+
−
−−
−
)
(
.
50
0
0250
+
++
+
−
−−
−
)
(
.
50
0
0250
+
++
+
−
−−
−
LL (without brake) 100.6 105.5 130.7 145.8
LL (with brake) 136.6 141.6 166.8 176.37
LS 20 27 27 27
LR 25 30 30 30
LE 2.5 3 3 3
LG 5 7.5 7.5 7.5
LW 16 20 20 20
RH 6.2 11 11 11
WK 3 5 5 5
W 3 5 5 5
T 3 5 5 5
TP
M3
Depth 8
M4
Depth 15
M4
Depth 15
M4
Depth 15
(1) Dimensions are in millimeters.
(2) Dimensions and weights of the servo motor may be revised without
prior notice.
(3) The boxes () in the model names represent shaft end / brake or the
number of oil seal.
(4) Please refer to Chapter 1 for the boxes (△) in the model names
(which represents encoder type).
NOTE
