Delta ASD-B2-0121-B

ASDA-B2 Chapter 7 Parameters
Revision May, 2018 7-73

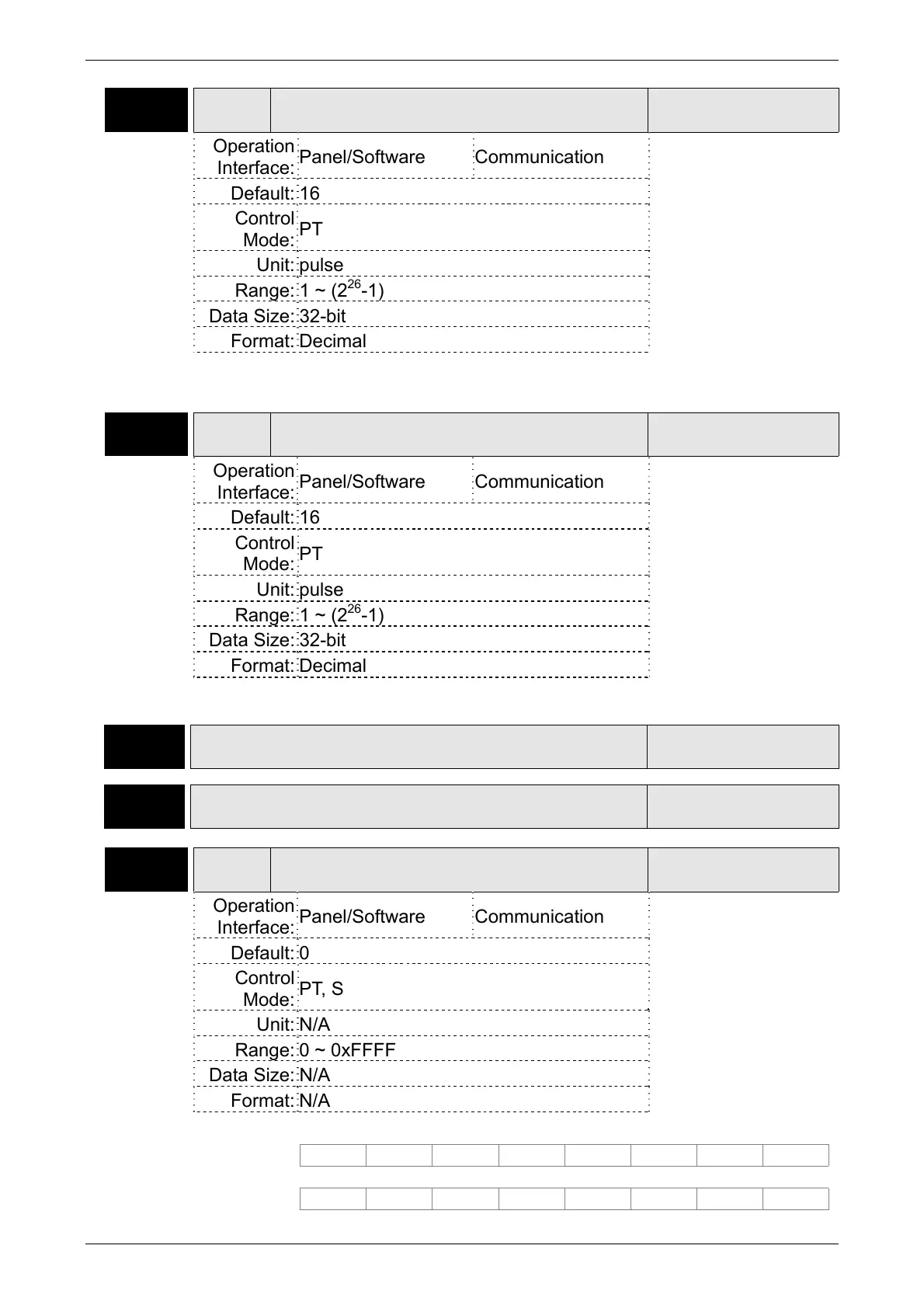

P2-61
GR5
Gear Ratio (Numerator) (N3)
Address: 027AH
027BH
Operation
Interface:
Panel/Software Communication
Related Section: N/A
Default: 16
Control
Mode:
PT
Unit: pulse
Range: 1 ~ (2
26
-1)
Data Size: 32-bit
Format: Decimal
Settings: Please refer to the description of P2-60.
P2-62
GR6
Gear Ratio (Numerator) (N4)
Address: 027CH
027DH
Operation
Interface:
Panel/Software Communication
Related Section: N/A
Default: 16
Control
Mode:
PT
Unit: pulse
Range: 1 ~ (2
26
-1)
Data Size: 32-bit
Format: Decimal
Settings: Please refer to the description of P2-60.
P2-63 Reserved
Address: 027EH
027FH
P2-64 Reserved
Address: 0280H
0281H
P2-65
GBIT Special-bit Register
Address: 0282H
0283H
Operation
Interface:
Panel/Software Communication
Related Section: N/A
Default: 0
Control
Mode:
PT, S
Unit: N/A
Range: 0 ~ 0xFFFF
Data Size: N/A
Format: N/A
Settings:
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit9 Bit8
