2.4 Ambient temperature
The inverter can be operated in an ambient temperature from -22 °F to 140 °F (-30°C to
+60°C). The following diagram illustrates how the output power of the solar inverter is reduced
automatically in accordance with ambient temperature.
The device should be installed in a well-ventilated, cool and dry location.
Due to tolerrance of temperature sensor and efficiency difference under different PV voltage, this
derating curve may be a litter different from actual behaviors of unit.

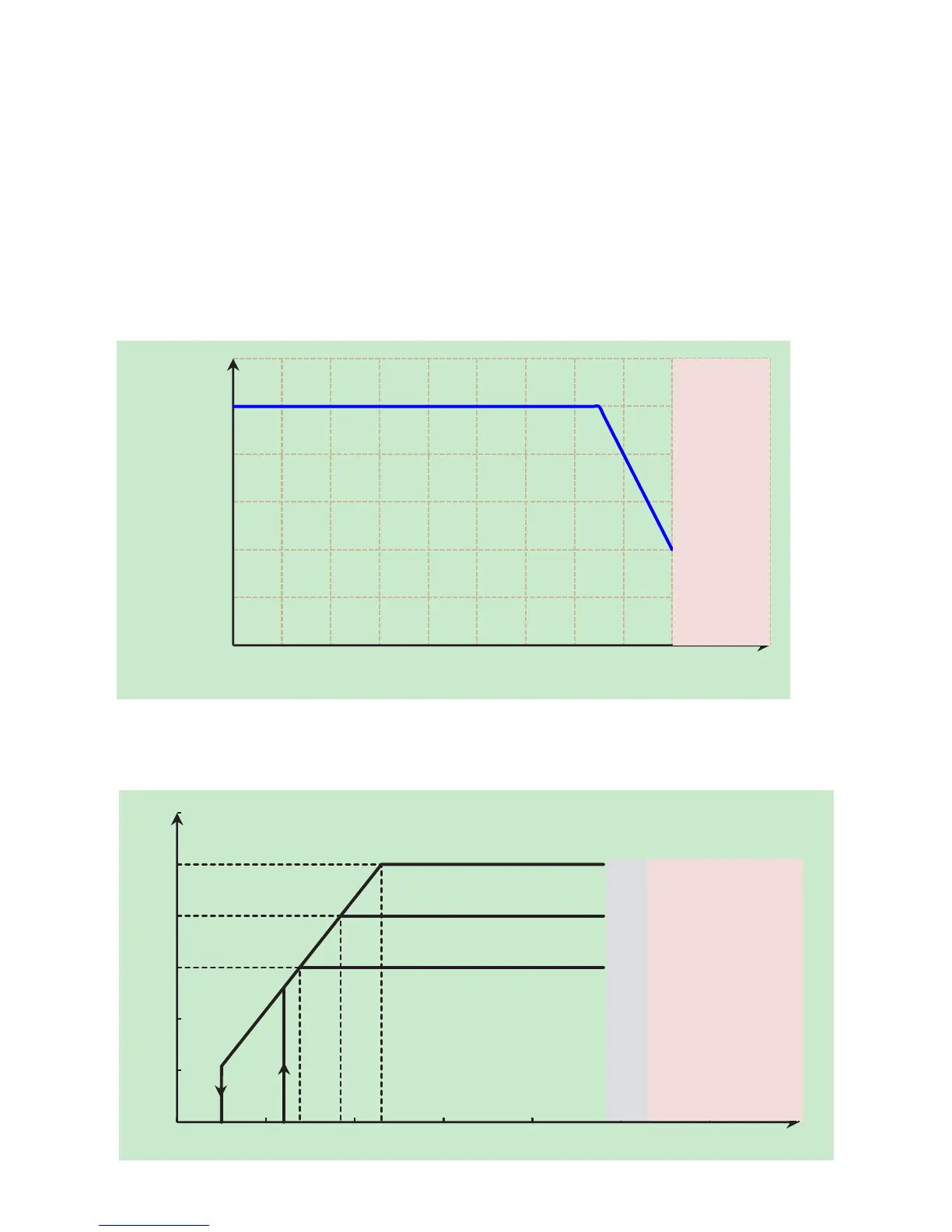

Figure 1: Typical derating curve of M series solar inverter
2.5 Solar inverter PV input DC voltage range
0.00%
20.00%
40.00%
60.00%
80.00%
100.00%
120.00%
-30 -20 -10 0 10 20 30 40 50 60 70 80
Maximum output power of unit
Ambient Temperature/°C
Non-
Operating
Range
0
1000
2000
3000
4000
5000
6000
0 100 200 300 400 500 600 700
Non-
operating
range
50V 150V 190V 230V
Voc*:Range of open
M5-TL-AU
M4-TL-AU
M3-TL-AU
Pac/W
Vin/V
120V 530V
Voc*
Range
