3.3 Mounting the inverter

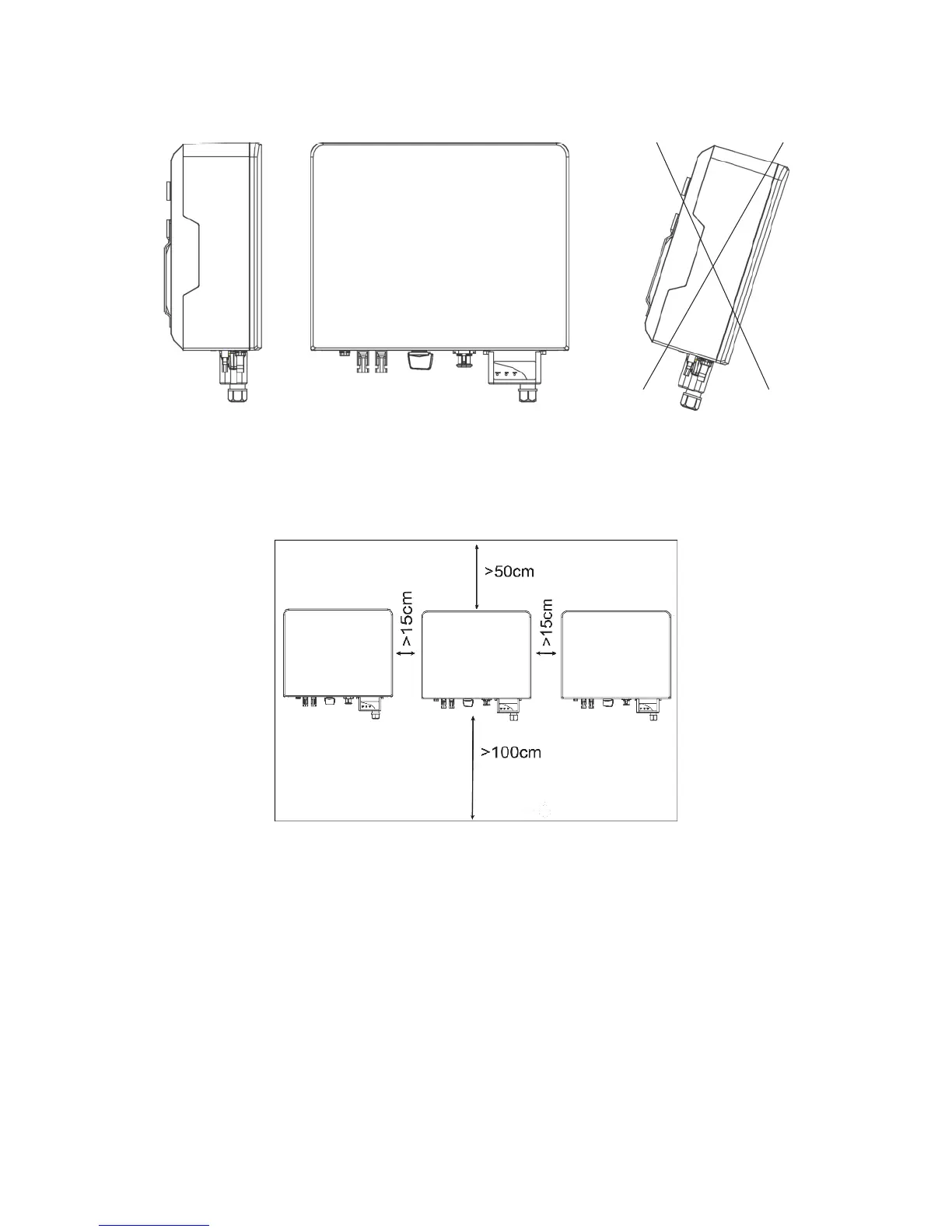

Figure 7. Mounting the inverter vertically
Please make sure the inverter is installed vertically, especially if it is to be installed outdoors.
Figure 8. Inverter installation clearance
Please ensure the inverter is mounted with safe clearance and larger margin shall be left with higher
ambient temperature.
