Delta AU Series - General Safety for Electrical Connections; AC Grid Connection Requirements; External DC Switch Installation

21
3.5 Install protective ground wire
·The inverter housing is grounded, as shown in Fig.12
·Cross-sectional area of wire: 4mm²-6mm².
·Screw torque: 1.4 N.m

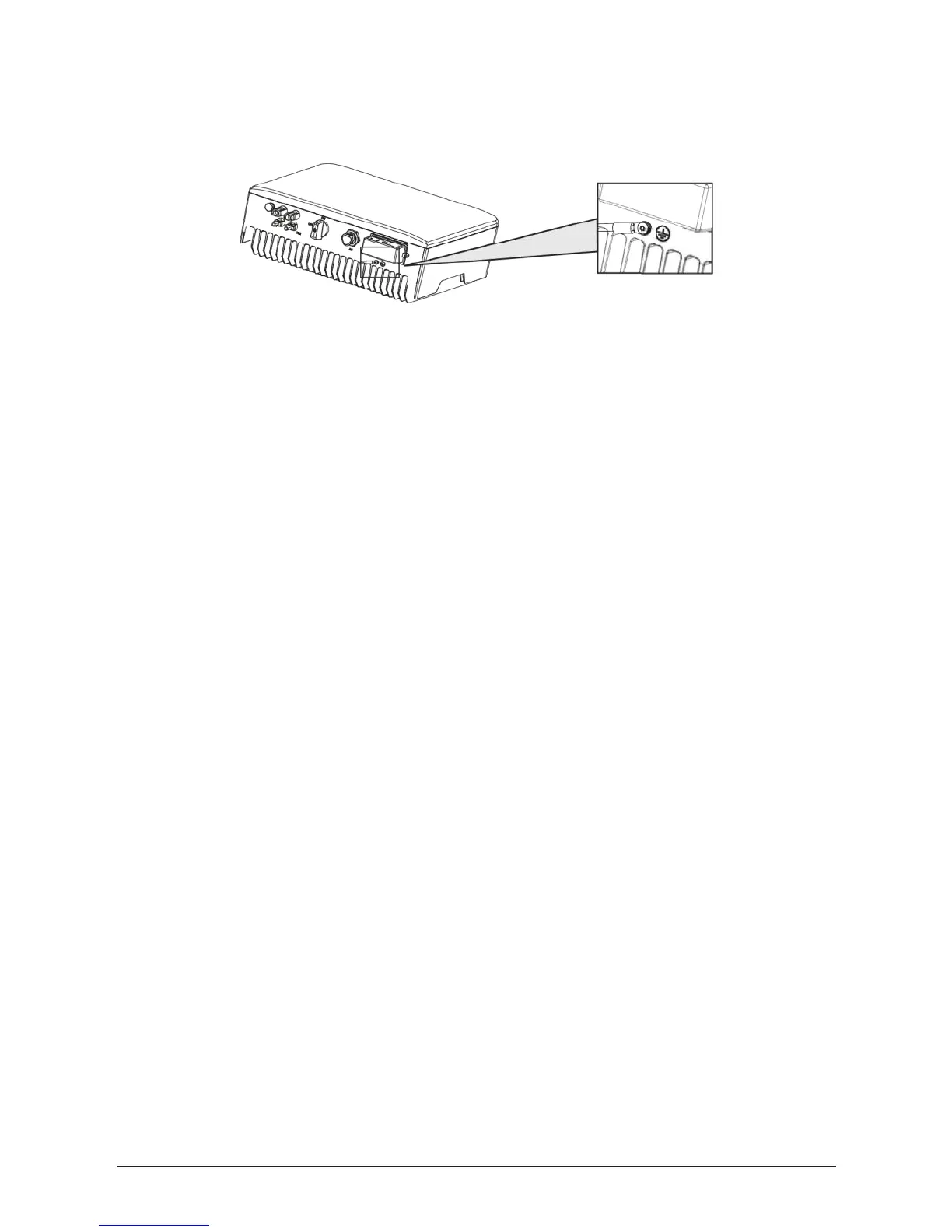

Figure 12 Protective grounding
