Delta AU Series - Installation Procedures

13

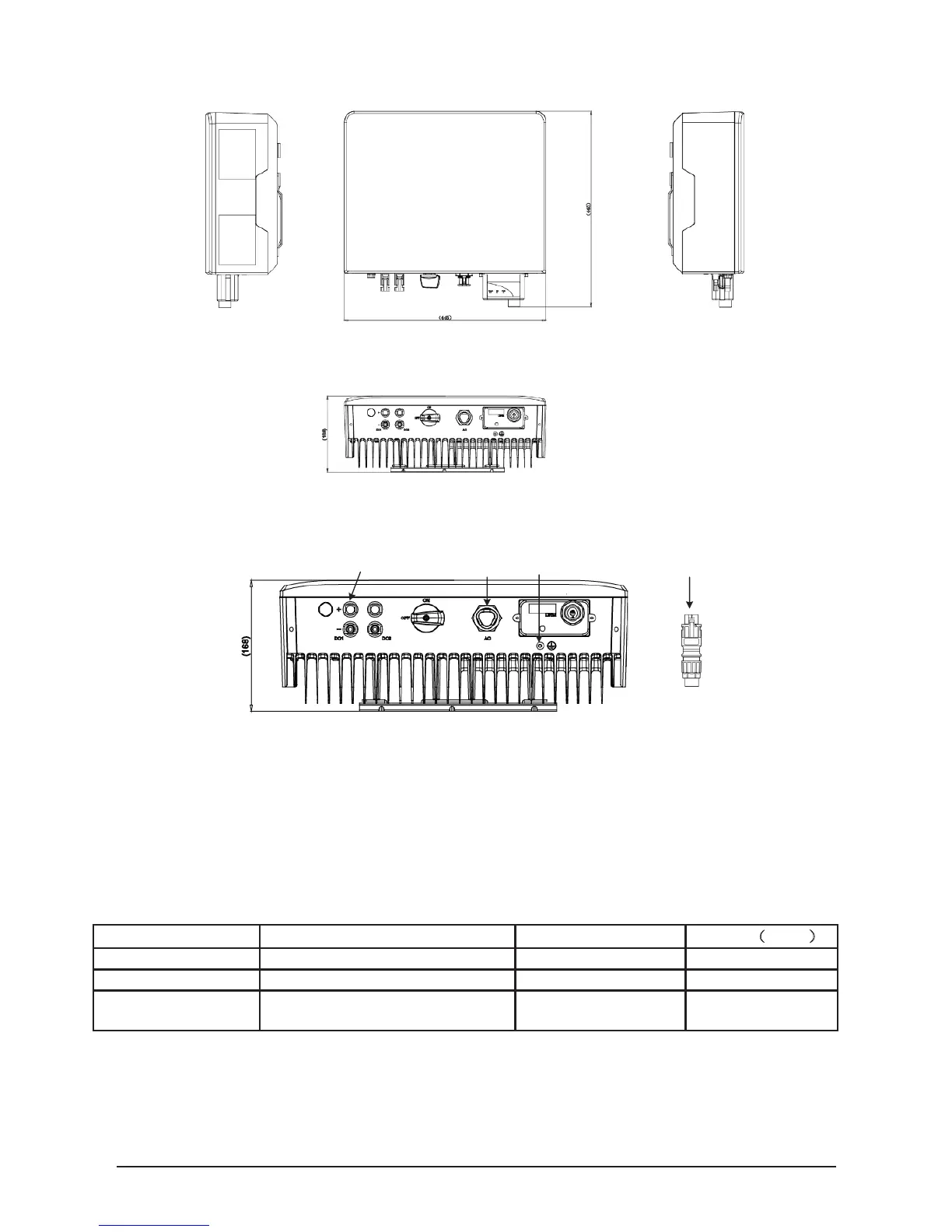

Figure 5. Dimensions of M series inverter
Figure 6. Wiring terminals of M series inverter
(1) PV terminals
(2) AC terminal (Output Side)
(3) Grounding terminal
(4) AC terminal (Wiring side)
The connection terminal is as below:
Model
Manufacturer
Wiring
（
AWG
）
AC terminal
PRC 3-FC-FS6 8-21-1410661
Pheonix
10
DC terminal MALE
32.0013P0001-UR
MC
14
DC terminal
FEMALE
32.0012P0001-UR MC 14
(1) (2) (3) (4)
