Delta Din- rail Power Meter DPM- D510 User Manual
2- 8
Rated voltage
V1
20V L-N ~ 400V L-N
35V L-L ~ 690V L-L
-
V2
V3
Vn
Control power
L1/+
100 ~ 240 Vac
400 mA MAX
L2/-
Rated current
I1+
- 1A ~ 5A
I1-
I2+
I2-
I3+
I3-
RS-485
D+
-7 ~ +12 VDC -
D-

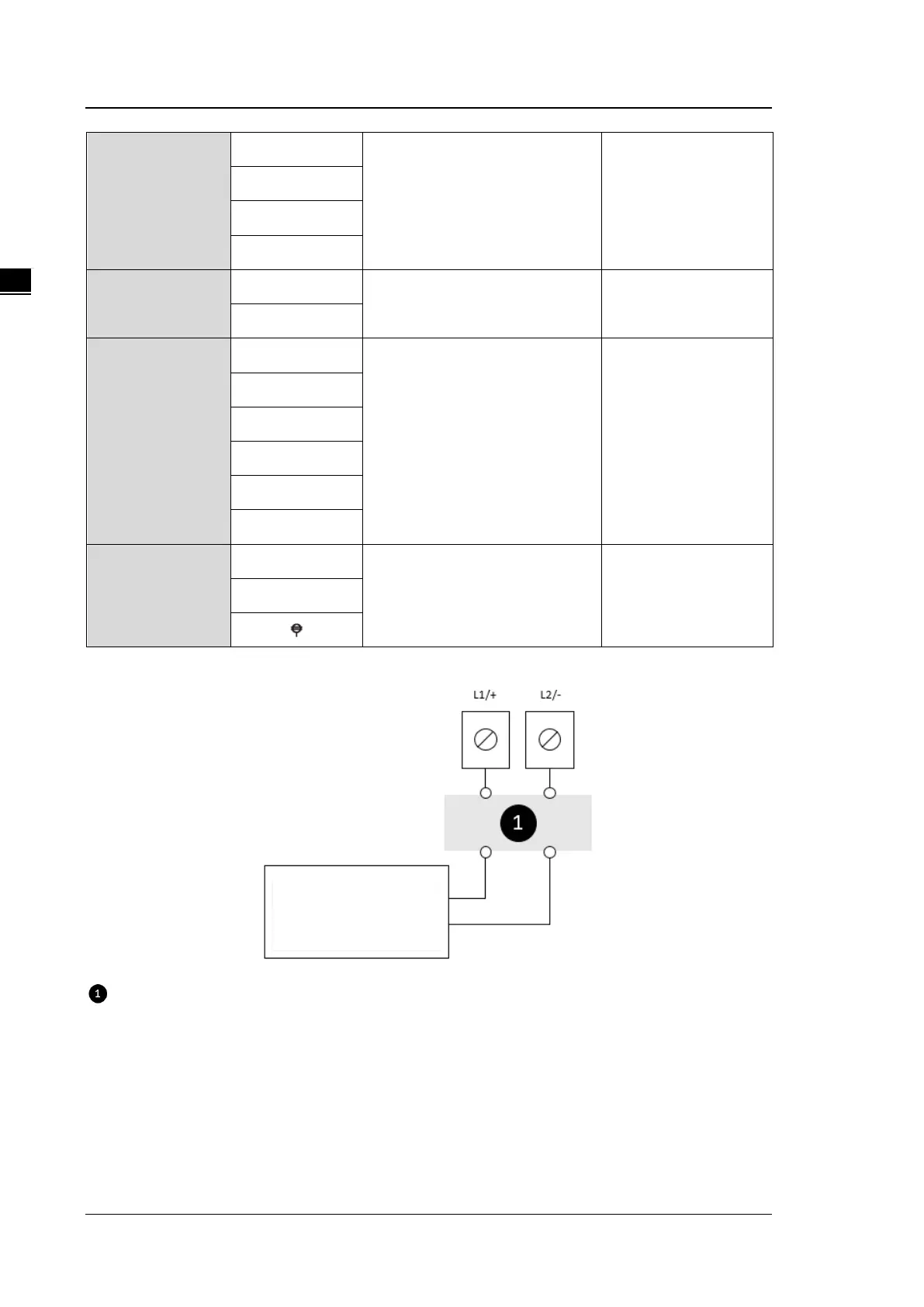

Wiring Descriptions
250 mA fuse:
※ Either positive or negative charge can be used on L1/+ and L2/-. When using a neutral wire for AC power,
you need to connect the neutral wire to the L2/-.
※ Always use a fuse on L1/+. When using an ungrounded neutral wire to connect to the power, use a fuse on
L2/-. If you are using a Power Transformer (PT) or a Current Transformer (CT), use fuses on the primary
and secondary windings.
※ The rated voltage / current of the fuse, breaker, and device should be the same to prevent damage to
electrical equipment or other property.
