Delta DPM-D510 - A.4 DCT2000 Series

Delta Din-rail Power Meter DPM-D510 User Manual
A- 6
_
A
A.4 DCT2000 Series
Electromagnetic Compatibility: UL, UL2808.

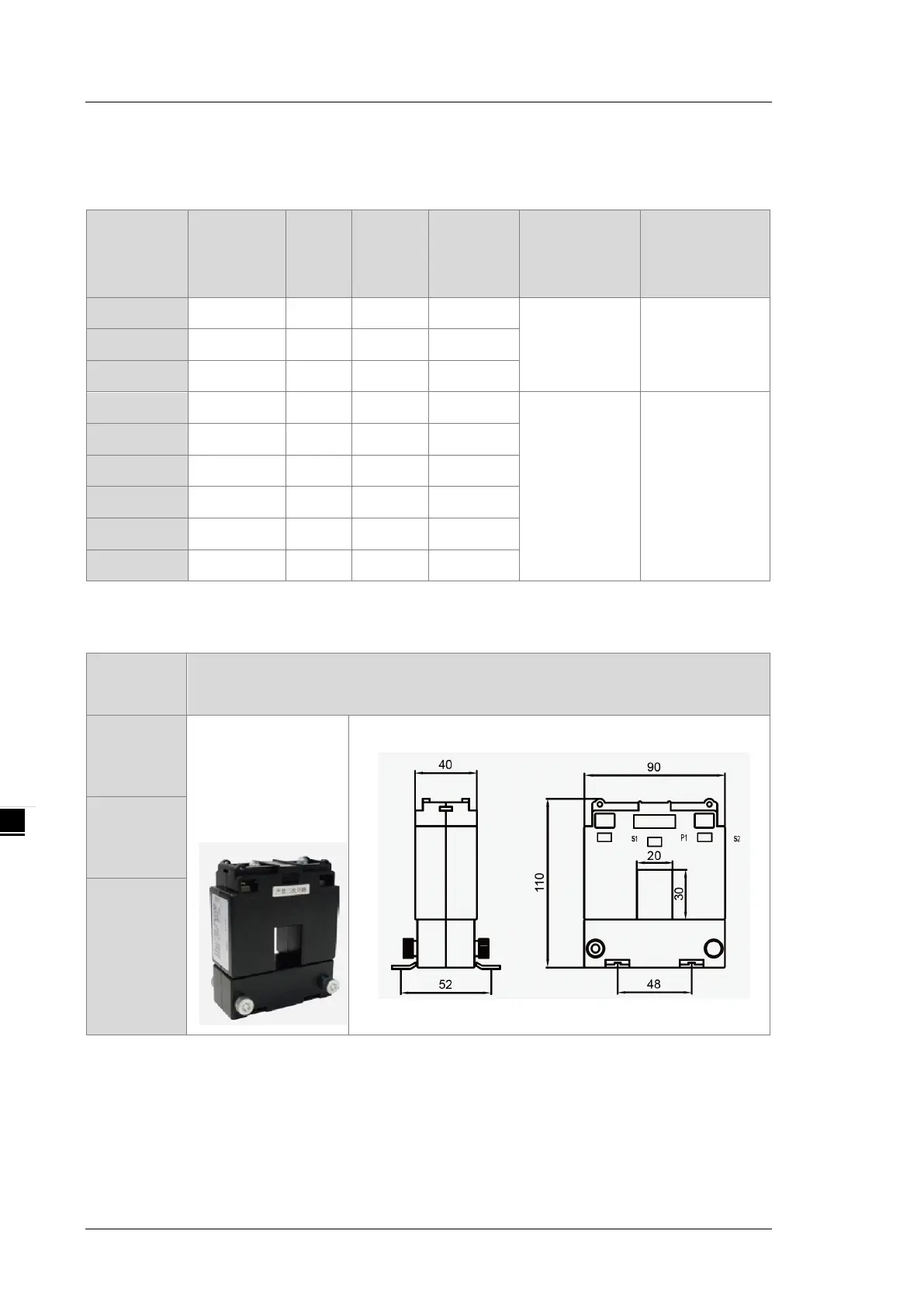

Model
Number
Measurement
Accuracy
Primary
Current
Secondary
Current
Rated Burden
(VA)
External
Dimension*1
(mm)
Size of Opening*1
(mm)
DCT-S201B 1.0% 100 A 5 A 1
90 x 40 x 110 20 x 30
DCT-S211B 0.5% 200 A 5 A 1
DCT-S221B 0.5% 300 A 5 A 1.5
DCT-S231B 0.5% 400 A 5 A 1.5
115 x 57 x 158 50 x 80
DCT-S241B 0.5% 500 A 5 A 2.5
DCT-S251B 0.5% 600 A 5 A 2.5
DCT-S261B 0.5% 750 A 5 A 2.5
DCT-S2C1B 0.5% 800 A 5 A 3.75
DCT-S271B 0.5% 1000 A 5 A 5
*1: See the following table for detailed information on the external dimensions and sizes of opening.
Model
Number
Dimension (mm)
DCT-S201B
External Dimension:
90 x 40 x 110
Size of Opening:
20 x 30
DCT-S211B
DCT-S221B
