Delta DPM-D510 - Page 26

Chapter 3 Installation
3- 9
3_

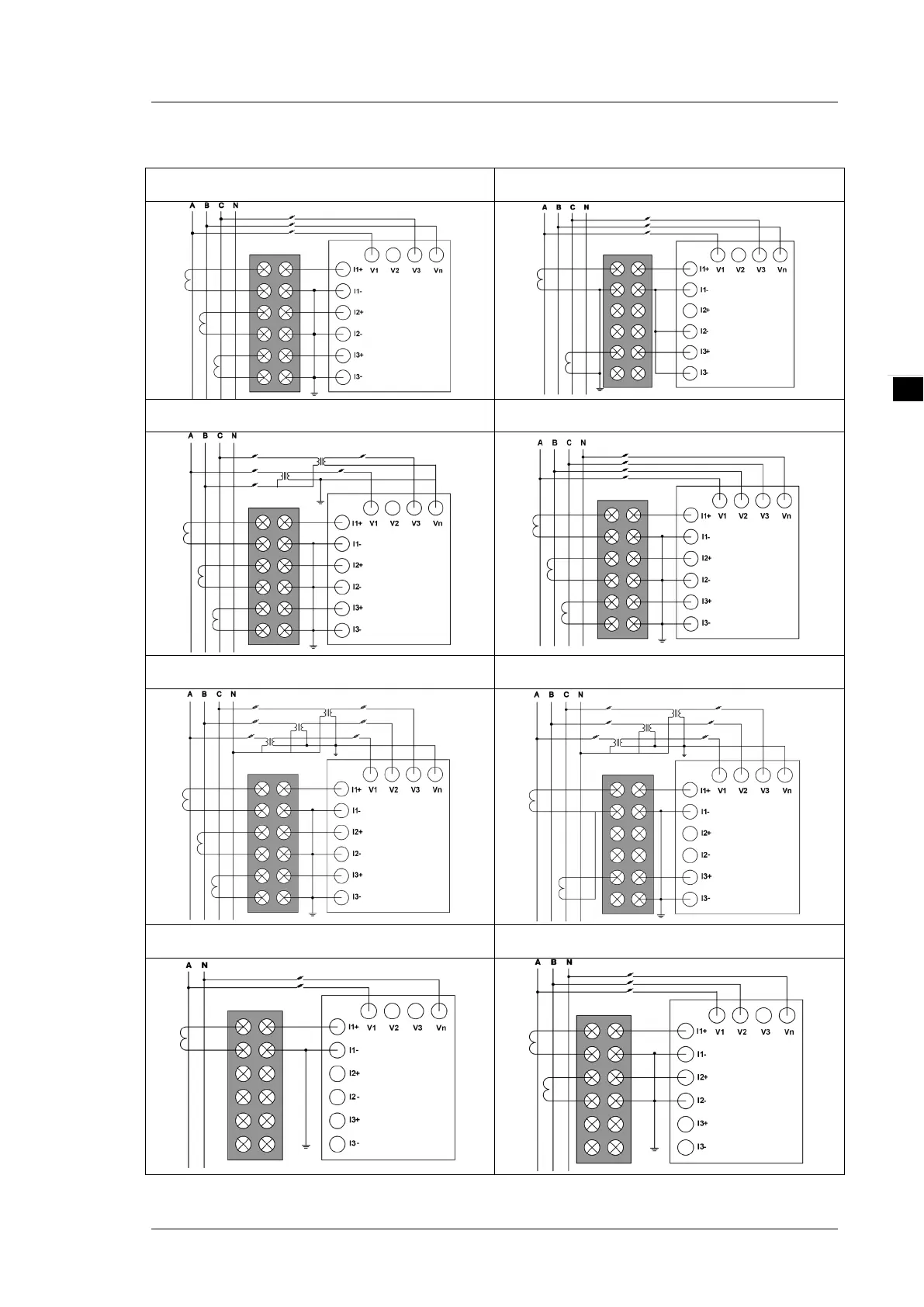

 Connection Diagrams
3PH3W, Δ connection, 3 CT, No PT 3PH3W, Δ connection, 2 CT, No PT
3PH3W, Δ connection, 3 CT, 2 PT 3PH4W, Y connection, 3 CT, No PT
3PH4W, Y connection, 3 CT, 3 PT 3PH4W, Y connection, 2 CT, 3 PT
1PH2W, 1 CT 1PH3W, 2 CT
