1 Analog Input Module DVP04AD-E2

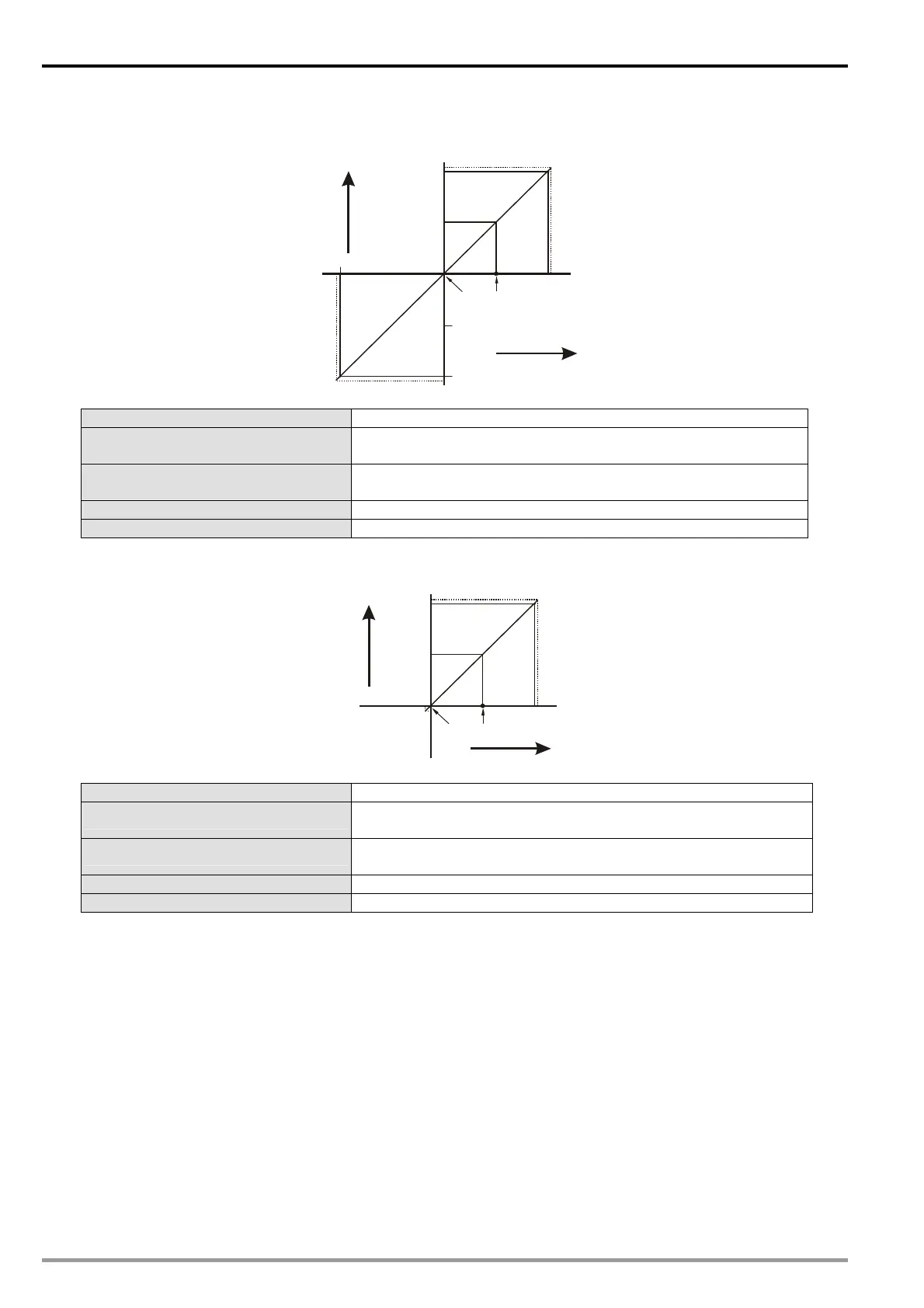

1.7.2 Current Input Mode:
 Mode 4 (H’0004): (-20mA~ +20mA)
+32000
+16000
-16000
20mA
-32000
-20mA
10mA
0
Gain
Offset
Digital
output
Curren t input
+32384
-32384
Mode 4 of CR#2~ CR#5 -20mA ~ +20mA, Gain = 10mA (16,000), Offset = 0mA (0).
Gain (CR#28 ~ CR#31)
The corresponding current input value when the digital output
value = 16,000.
Offset (CR#34 ~ CR#37)
The corresponding current input value when the digital output
value = 0.
Range of digital conversion -32,000 ~ +32,000
Max./Min. output range of digital data -32,384 ~ +32,384
 Mode 5 (H’0005): (0 ~ +20mA)
+32000
+16000
20mA
10mA
0
GainOffset
Digital
output
Current input
+32384
-384
Mode 5 of CR#2~ CR#5 0mA ~ +20mA, Gain = 10mA (16,000), Offset = 0mA (0).
Gain (CR#28 ~ CR#31)
The corresponding current input value when the digital output
value = 16,000.
Offset (CR#34 ~ CR#37)
The corresponding current input value when the digital output
value = 0.
Range of digital conversion 0 ~ 32,000
Max./Min. output range of digital data -384 ~ +32,384
DVP-ES2 Module Manual
1-12
