Delta DVP-ES2 Manual

2 Analog Output Module DVP02DA-E2/DVP04DA-E2

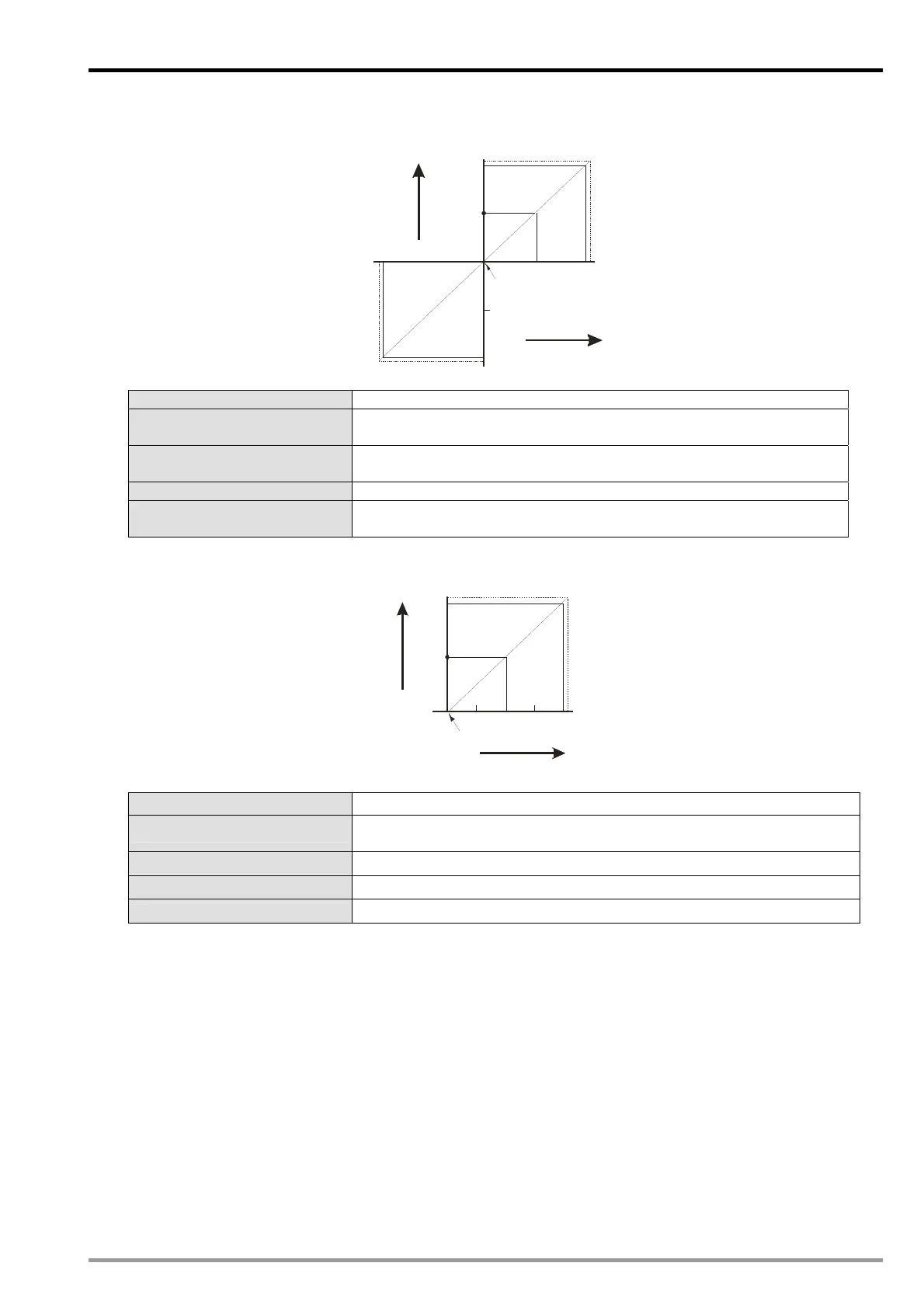

2.7.1 Voltage Output Mode
 Mode 0 (H’0000): (-10V ~ +10V)
10V
+3 2,000
0
Offset
5V
Gain
+1 6,000
Voltage
output
Digital input
-10 V
-5V
-32 ,0 00
+3 2,767
-32 ,7 68
Mode 0 of CR#2~ CR#5 -10V ~ +10V, Gain = 5V (16,000), Offset = 0V (0).
Gain (CR#28 ~ CR#31)
The corresponding voltage output value when the digital input value =
16,000.
Offset (CR#34 ~ CR#37)
The corresponding voltage output value when the digital input value =
0.
Range of digital conversion -32,000 ~ +32,000
Max./Min. input range of digital
data
-32,768 ~ +32,767
2.7.2 Current Output Mode
 Mode 1 (H’0001): (0mA ~ +20mA)
20mA
+3 2,000
0
Offset
Gain
+1 6,000
10mA
Current
output
Digita inputl
+3 2,767
Mode 1 of CR#2~ CR#5 0mA ~ +20mA, Gain = 10mA (16,000), Offset = 0mA (0).
Gain (CR#28 ~ CR#31)
The corresponding current output value when the digital input value =
16,000.
Offset (CR#34 ~ CR#37)
The corresponding current output value when the digital input value = 0.
Range of digital conversion
0 ~ +32,000
Max./Min. range of digital data
0 ~ +32,767
DVP-ES2 Module Manual
2-9
