Communication Module DVPSCM12/52-SL
DVP-PLC Operation Manual
31
7. Application
7.1 MODBUS
This chapter introduces how the SCM module connects to other Delta industrial products such as the
human-machine interfaces, the text panels, the PLCs, the motor drives, and the servo motors through the

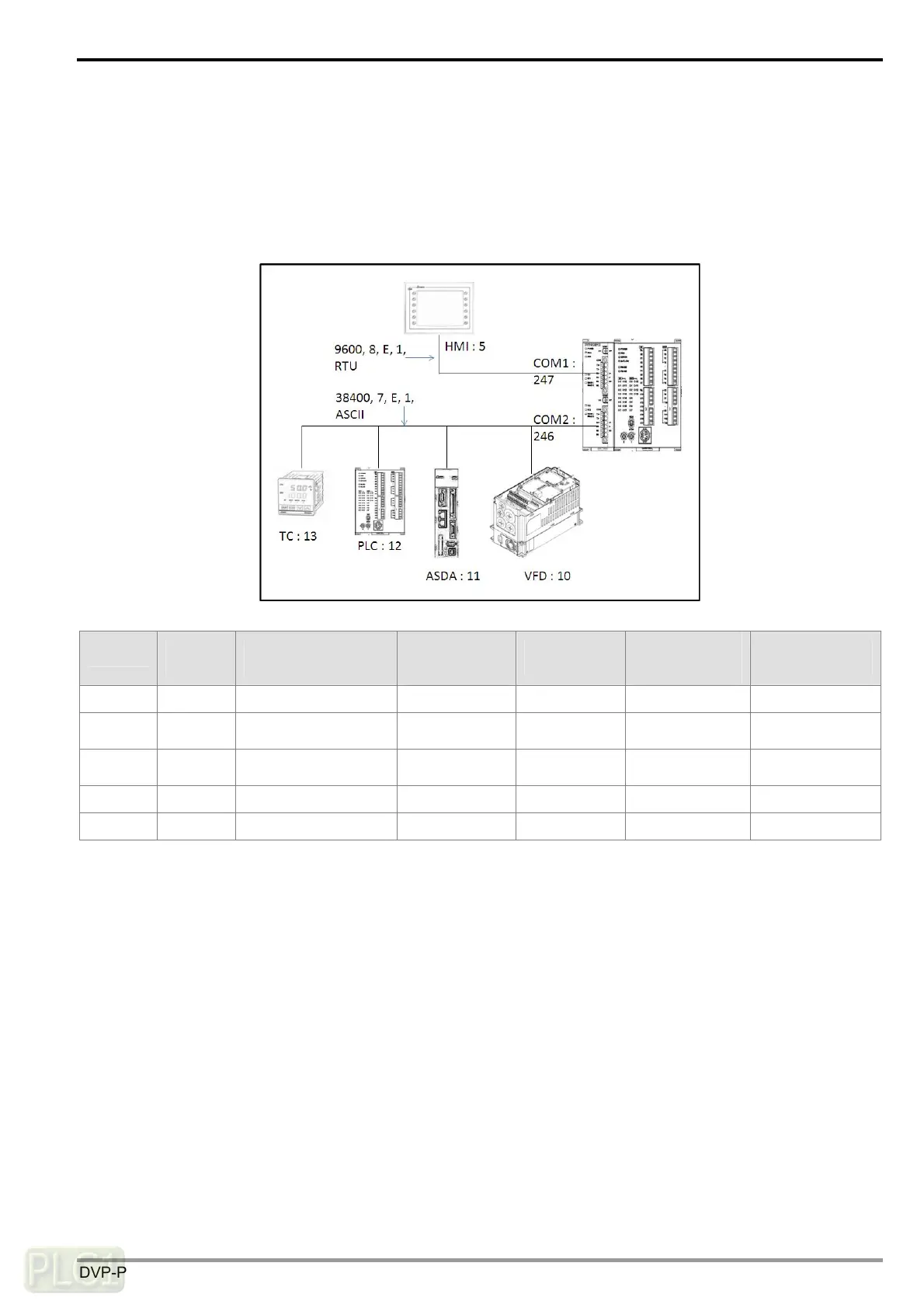

standard MODBUS. The connection diagram is as below:
Product
Station
address
Communication
protocol
Address from
which the
data is read
Register in
the MPU
Address into
which the data
is written
Register in the
MPU
HMI 5 9600, RTU, 8, E, 1 - -
VFD 10 38400, ASCII, 7, E, 1 2103H D100
2000H
2001H
D150~D151
ASDA 11 38400, ASCII, 7, E, 1
0101H
020AH
D200,D201
0101H
020AH
D250, D251
PLC 12 38400, ASCII, 7, E, 1 D100~D109 D300~D309 D200~D204 D350~D354
TC 13 38400, ASCII, 7, E, 1 1000H (PV) D400 1001H (SV) D451
