Delta DVPSCM Series User Manual

Communication Module DVPSCM12/52-SL
DVP-PLC Operation Manual
3
2. Product Appearance and Product Profile

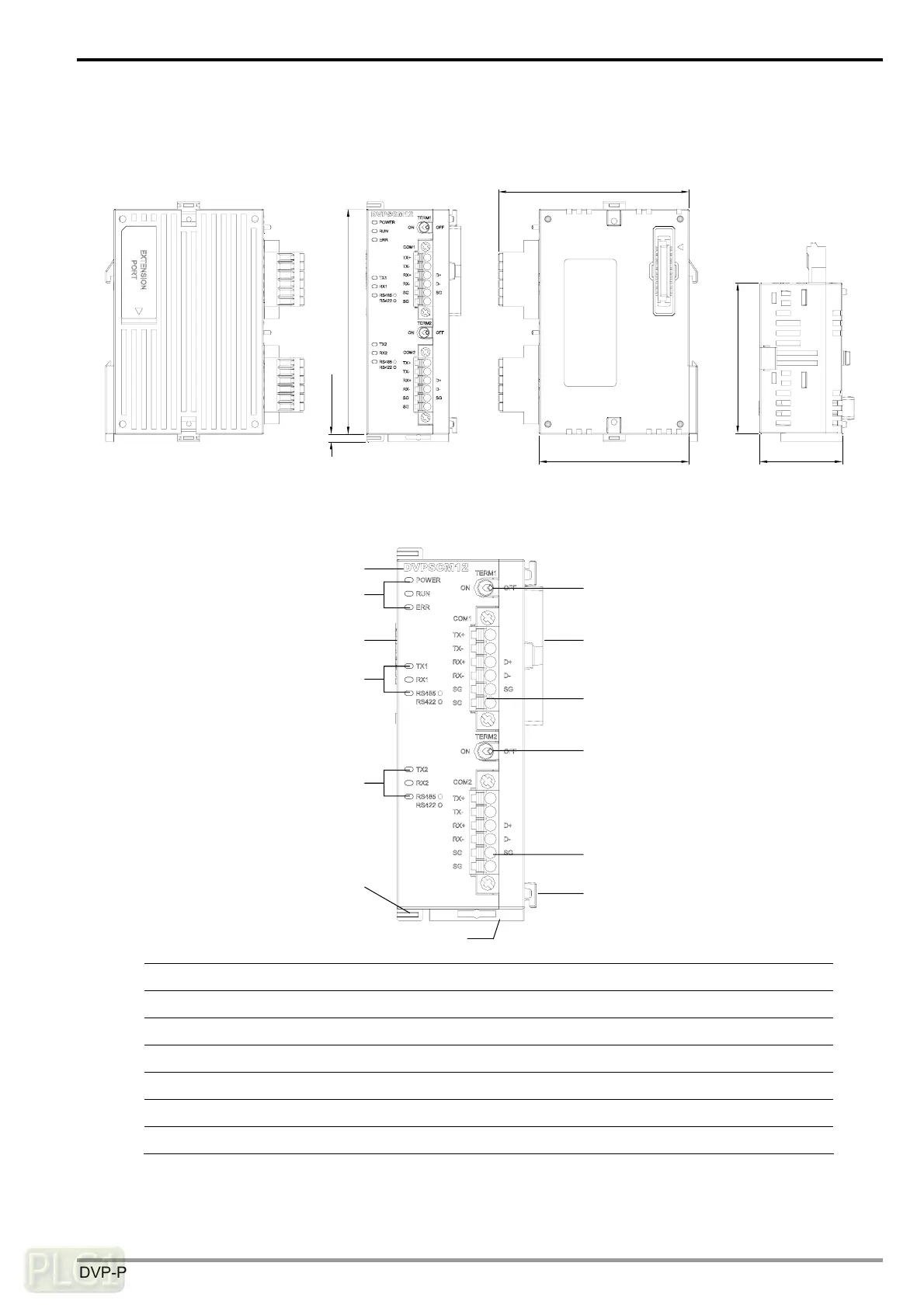

2.1 Dimensions
90 [3.543]
3 [0.118]
60 [2.362]
76.3 [3.004]
60 [2.362]
33.1 [1.303]
Unit: mm [inches]
2.2 Product Profile
1
2
3
4
5
6
7
8
9
10
11
12
13
1. Model name 8. Switch for terminal resistor 1
2. POWER, RUN, ERR LED indicators 9. Extension port for the MPU/left-side module
3. Extension port for the left-side module 10. RS-485⁄RS-422 communication port 1
4. TX1, RX1, RS-485⁄RS-422 LED indicators 11. Switch for terminal resistor 2
5. TX2, RX2, RS-485⁄RS-422 LED indicators 12. RS-485⁄RS-422 communication port 2
6. Fixing clip for the left-side module 13. Positioning hole for the I/O module
7. DIN rail clip
