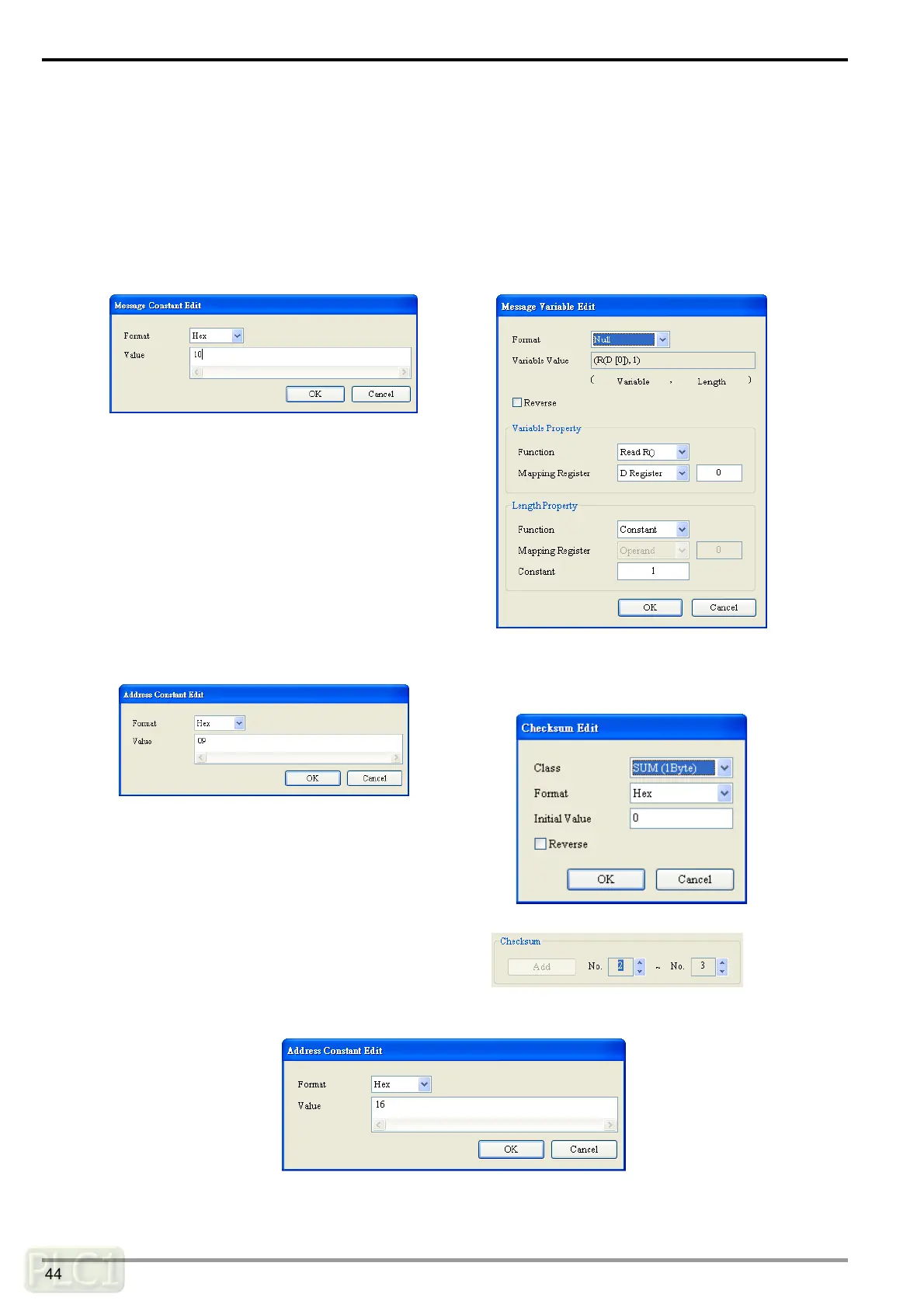

(3) Edit the UD Link.
【Type 1】
Only send the abbreviated record (abbreviated record):
『Start word』+『device address (IA)』+『Function code (FF)』+『Checksum (CS)』+『End marker』
Æ 10h + D0 + 09h + (IA+FF) + 16h
 Start word: 10h
 Read the device address from D0 (IA).
 Function code (FF): 09h
 Checksum (1byte; adding the previous two
items up):
 End word: 16h
