Delta DVPSCM Series User Manual

Communication Module DVPSCM12/52-SL
DVP-PLC Operation Manual
60

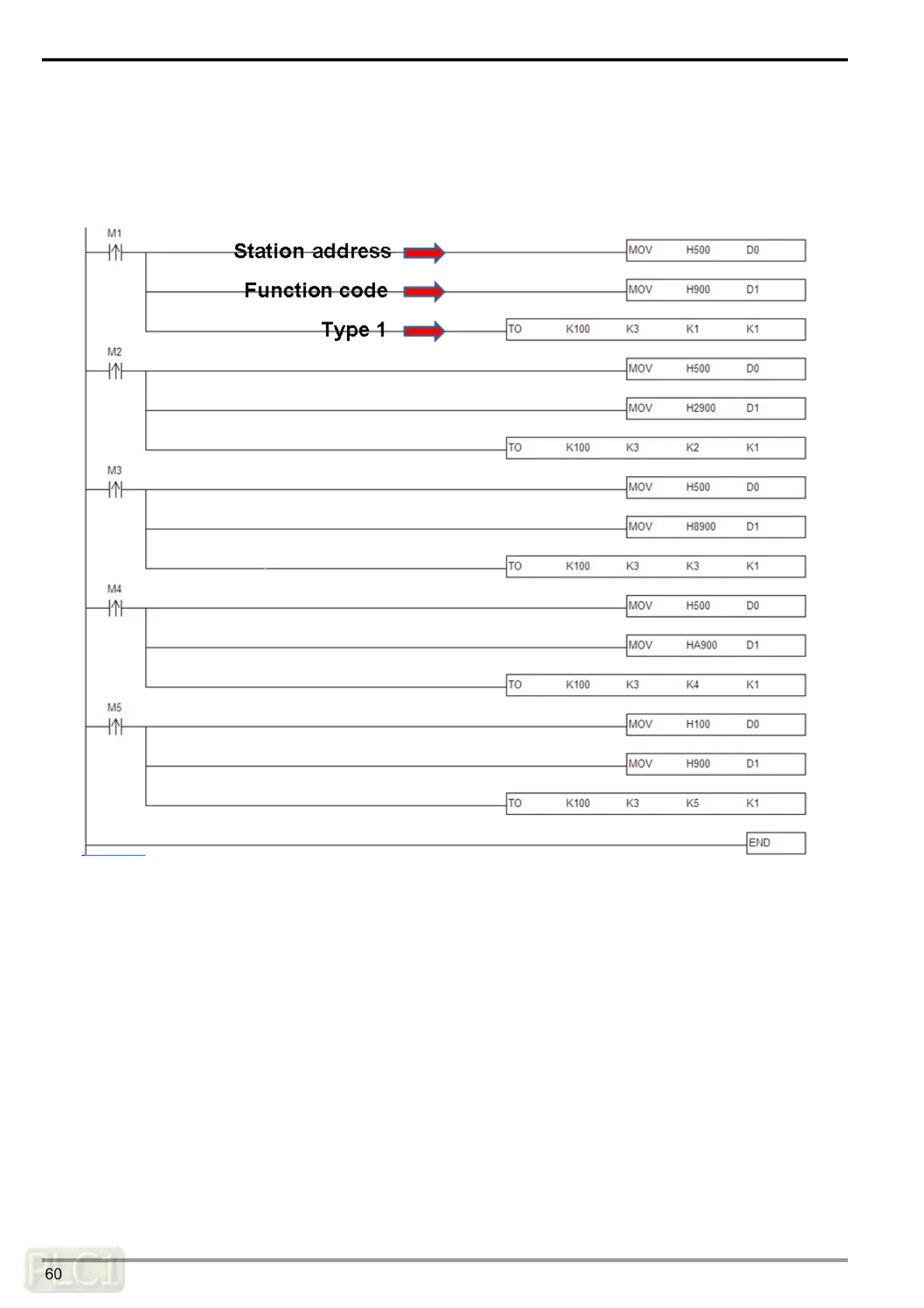

The sending of type 1~5 is controlled by M1~M5. Each triggering includes writing the station address of
the electricity meter and the function code into D0 and D1 respectively. When the data is written into the
registers, the higher bit precedes the lower bit. For example, the user has to enter H’0555 when the
station address is 5, and the same applies to the reading of the response address from D100.
