Delta Electronics Servo Press E-Series Installation and Maintenance Instructions
15
5. Wiring Instructions

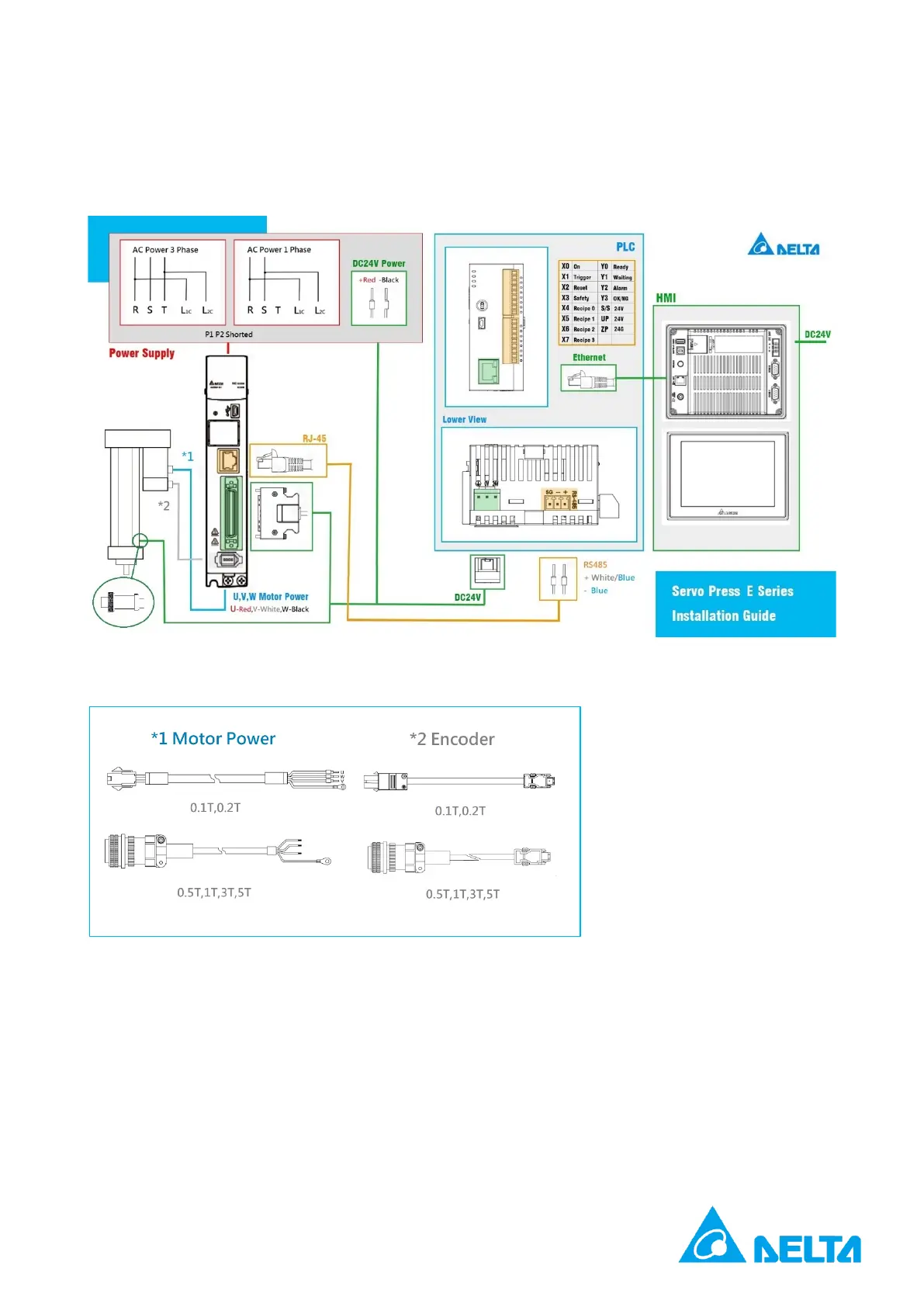

5.1 Circuit Diagram
*During configurations, it is recommended that the signal line (green) and the motor power line (blue)
be routed separately.
