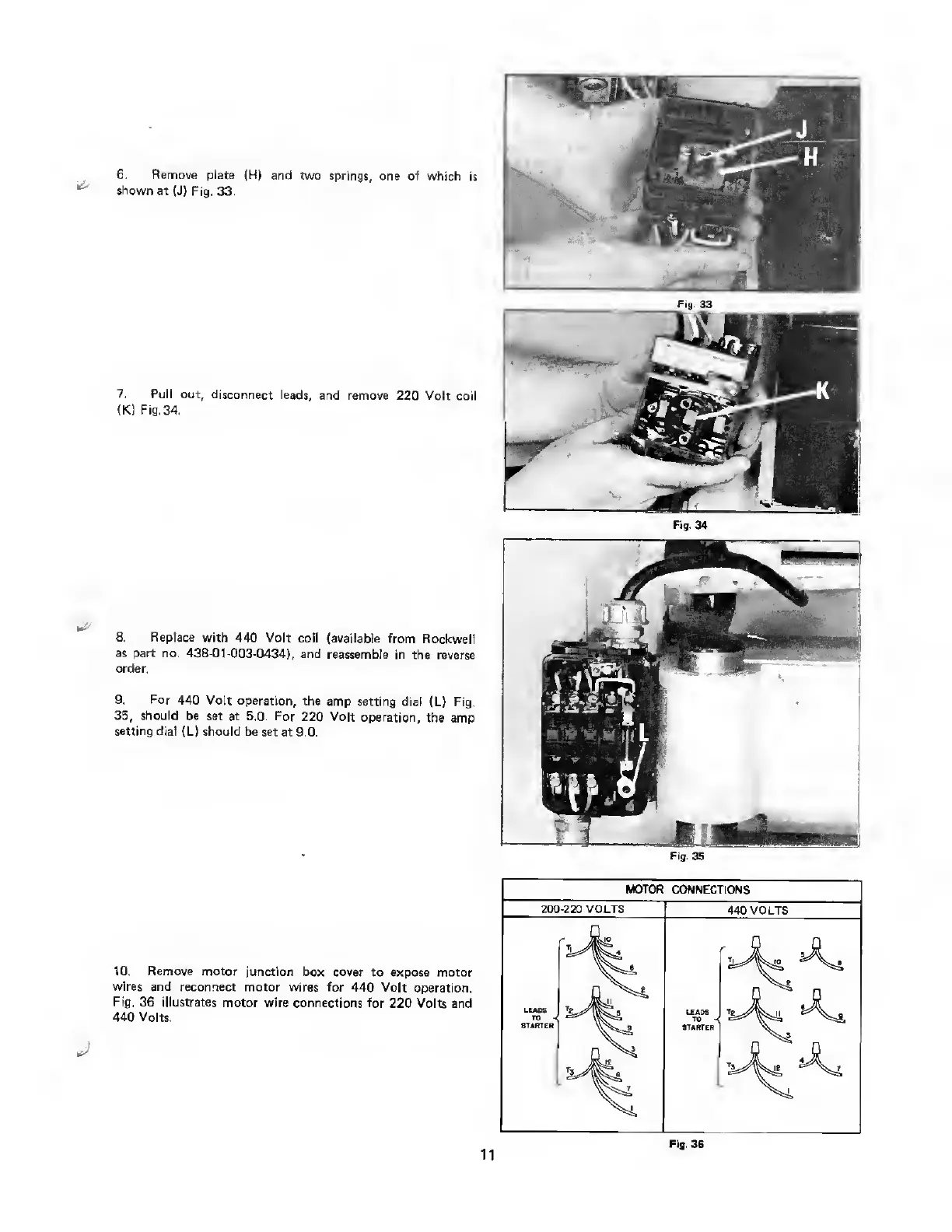

6. R emove plate (H) and two springs, one of which is
shown at (J) Fig. 33.
7. P ull out, disconnect leads, and remove 220 Volt coil
(K) Fig,34.
8. Replace with 440 Volt coil (available from Rockwell
as part no. 438-01-003-0434), and reassemble in the reverse
order.
9. For 440 Volt operation, the amp setting dial (L) Fig.
35, should be set at 5.0. For 220 Volt operation, the amp
setting dial (L) should be set at 9.0.
10. R emove motor junction box cover to expose motor
wires and reconnect motor wires for 440 Volt operation.
Fig. 36 illustrates motor wire connections for 220 Volts and
440 Volts.
Fig. 34
Fig. 35
11
Fig. 36
