RMC70 Startup Guide
30 Delta Computer Systems, Inc.
Wiring Power
Voltage: +24VDC ( 21.6 – 26.4VDC)
Current rating: Minimum 500 mA
UL and CUL Requirements
For UL and C-UL compliance, the power supply must be Class 2. Class 2
power supplies are limited to 100W output. No additional fusing is
required if a class 2 power supply is used.
RMC75E and RMC75P
RMC75S
Tighten the wire clamp screws on the terminal blocks to 7 lb-in (0.8
Nm).

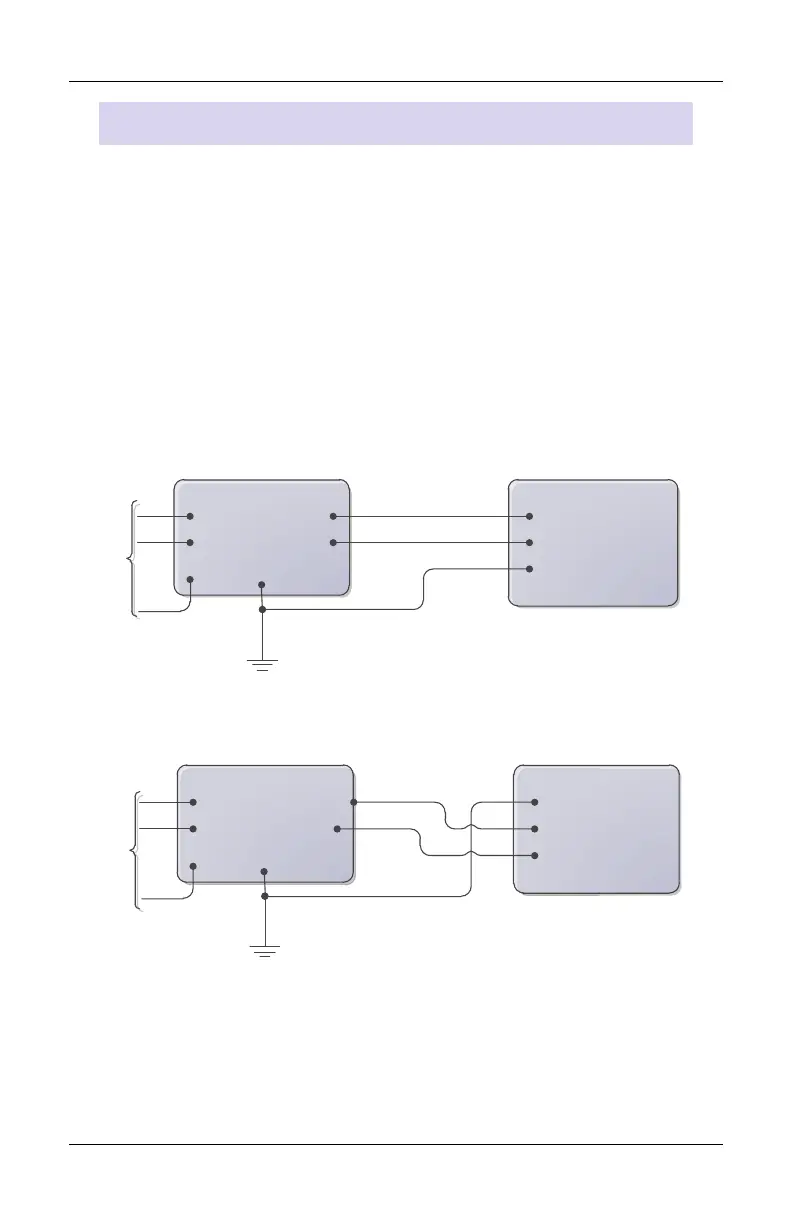

RMC75E or RMC75PPower Supply
+24 VDC
Cmn
Protective Earth
Ground
+24 Vdc PS
PS Return
Case
AC
Line
RMC75SPower Supply
+24 VDC
Cmn
Protective Earth
Ground
Case
+24 Vdc PS
PS Return
AC
Line
To Next Page
