Appendix A: Wiring
deltamotion.com 37
12-pin Axis
Connector
+Analog Out
-Analog Out
Pwr Common
+Pwr
Power Supply
+Pwr
Cmn
+Analog In
Jumper for 4-20 mA
-Analog In
Cmn
+10Vdc Exciter
Case
Signal Common
12-
pin Axis
Connector
+Analog Out
Common
Power Supply
+24 VDC
Cmn
+Analog In
Jumper for 4-
20 mA
-Analog In
Cmn
+10Vdc Exciter
Case
+Pwr

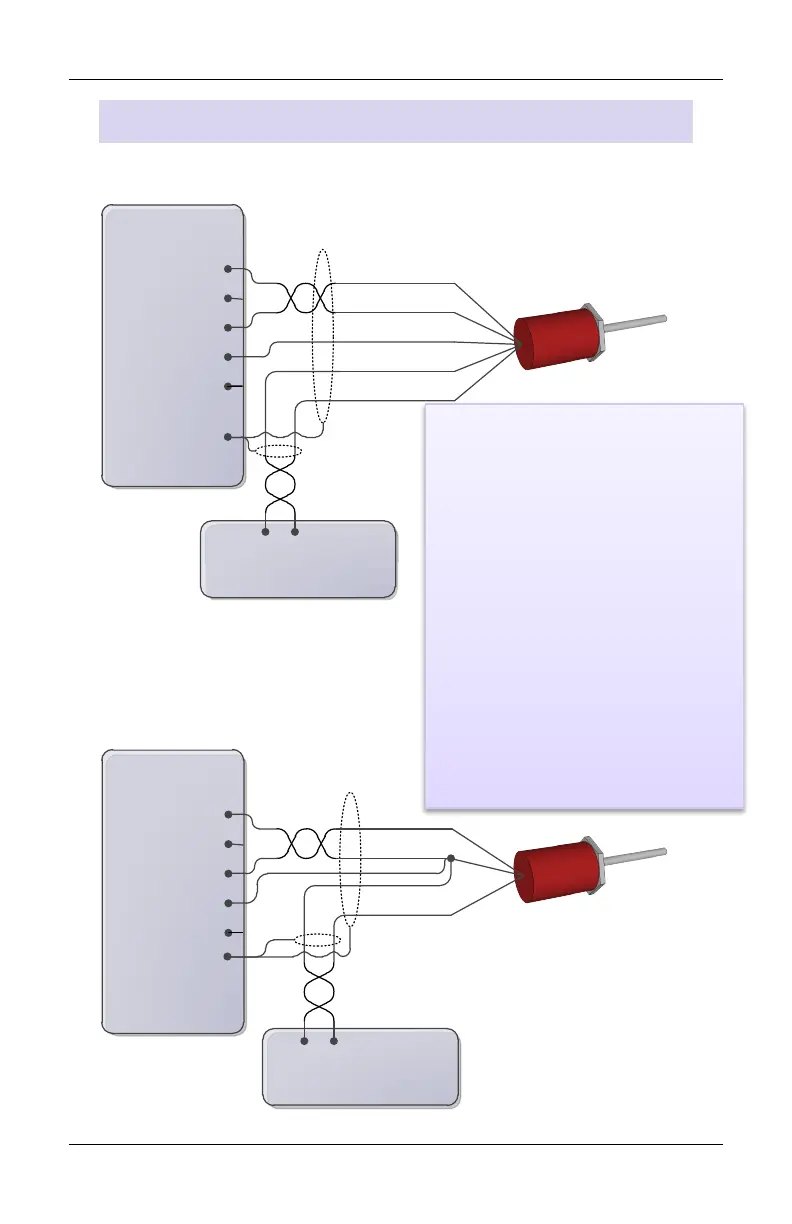

AA Module Voltage Transducer Wiring
Voltage Transducer, 4- or 5-Wire
Voltage Transducer, 3-Wire
To reduce electrical interference:
• -Analog In and Cmn must be
connected, either internal to the
transducer or externally as close
as possible to the transducer.
• Use individually shielded
twisted-pair wire.
• Connect cable shield to earth
ground on one end only.
• If transducer has only one
common, connect Pwr Supply
Common and RMC Cmn to it. For
best results, make this
connection at the transducer.
