FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION
MANUAL.
8

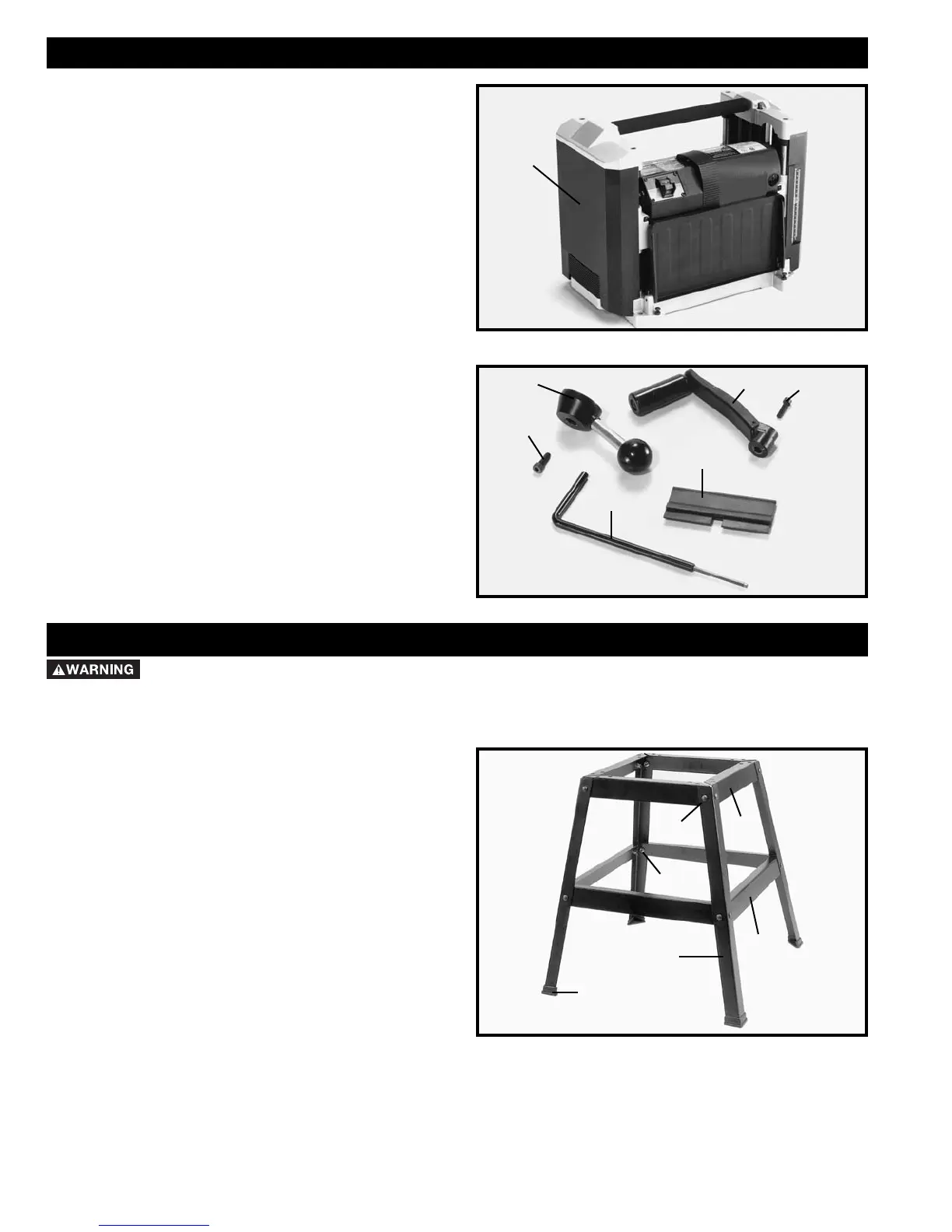

PLANER PARTS
1 - 12½" Portable Planer
2 - Cutterhead raising and lowering handle
3 - M5x.8x20mm hex socket head screw
4 - Cutterhead lock handle
5 - M6x20mm specia hex socket head screw
6 - Wrench and handle assembly
7 - Knife transfer tool
Fig. 1
Fig. 2
1
2
3
4
5
6
7
ASSEMBLY
STAND
A - Top Brace 17-7/8" (4)
B - Bottom brace 22-1/4" (4)
C - Leg (4)
D - Rubber feet (4)
E - Carriage bolt M8x1.25x16mm (16)
F - Flange nut M8x1.25 (20)
* - Hex head flange screw M8x1.25x35mm (4) (For fastening
planer to stand) * not shown
1. Align the holes in the bottom braces (B) Fig. 3 with
the holes in the legs (C), insert a carriage bolt (E) through
the leg and the bottom brace, and thread the flange nut
(F) onto the carriage bolt. Repeat this process for the
remaining holes in the bottom braces and table legs. Do
not completely tighten hardware at this time.
2. Assemble the top braces (A) Fig. 3 to the legs (C) in
the same manner as step 1.
3. Insert the rubber feet (D) Fig. 3 onto the end of the
legs (C) and tighten all hardware at this time.
Fig. 3
A
B
C
D
E
F
