8

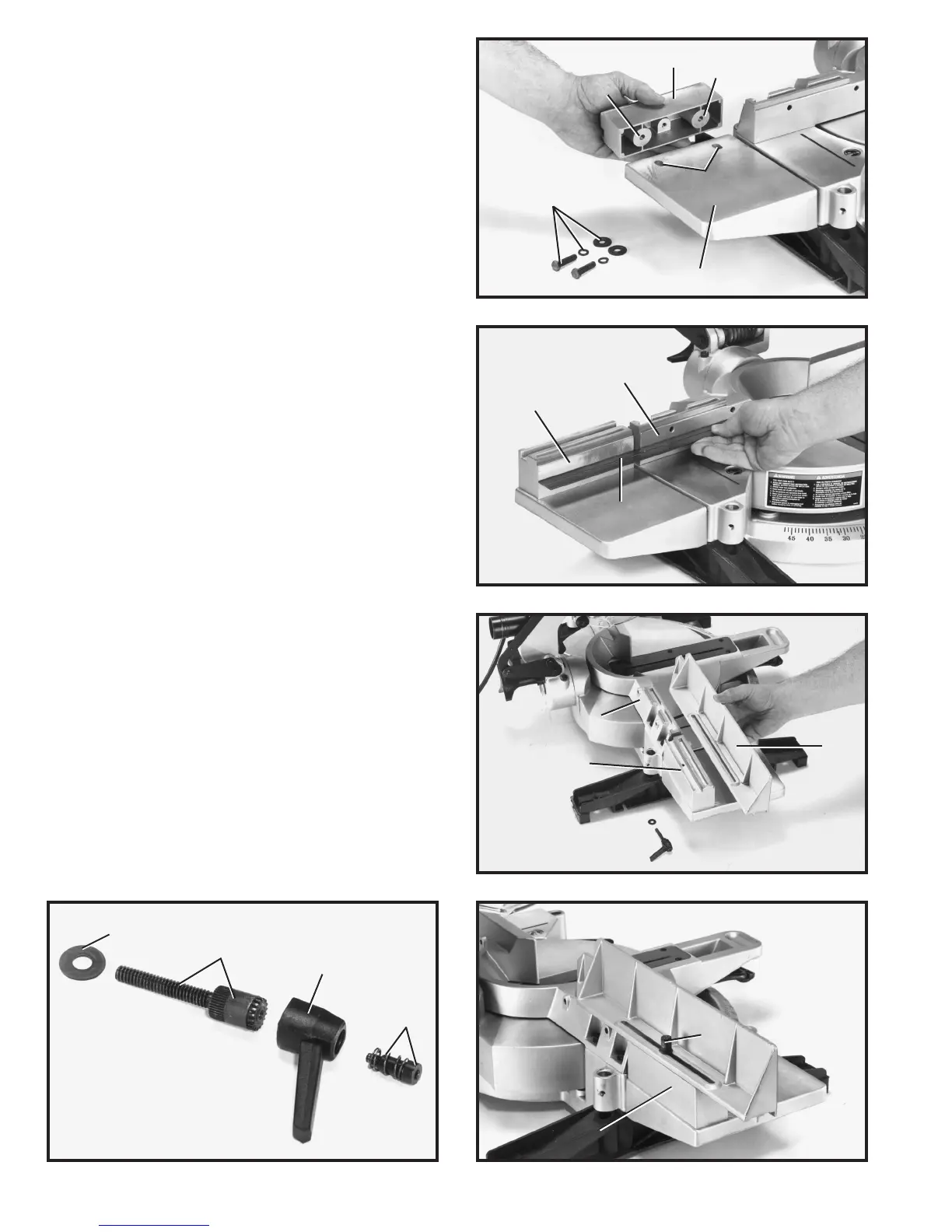

4. Assemble the fence slide support (E) Fig. 7D, to the
extension t able (B) using the two 1-1/4 long hex head
screws, 5/16 lockwashers and 5/16 flat washers (F).
Bring screws up through the two holes (G) in t able exten -
sion and thread them into the two threaded holes (H) on
bottom of fence slide support. NOTE: Do not completely
tighten screws at this time.
Fig. 7D
Fig. 7E
Fig. 7F
Fig. 7HFig. 7G
5. Using a straight edge (C) Fig. 7E, make cert ain
fence slide support (E) is level with saw fence (J) as
shown, and tighten the two screws that were assembled
in STEP 4.
6. Position the fence slide (K) Fig. 7F, in position on top
of saw fence (J) and fence slide support (E). Slide fence
slide (K) back and forth several times to check alignment
of fence slide support (E) and make final adjustment to
fence slide support if necessary.
7. Remove screw and spring (L) Fig. 7G, and lock
handle (M) from locking stud (N) as shown.
8. Place 1/4 flat washer (O) Fig. 7G, onto locking stud
(N) and insert locking stud (N) Fig. 7H, through slot in
fence slide and thread locking stud into threaded hole in
fence slide support (E) as shown.
H
F
B
G
E
H
J
E
J
E
K
O
N
M
L
N
E
