10 - English

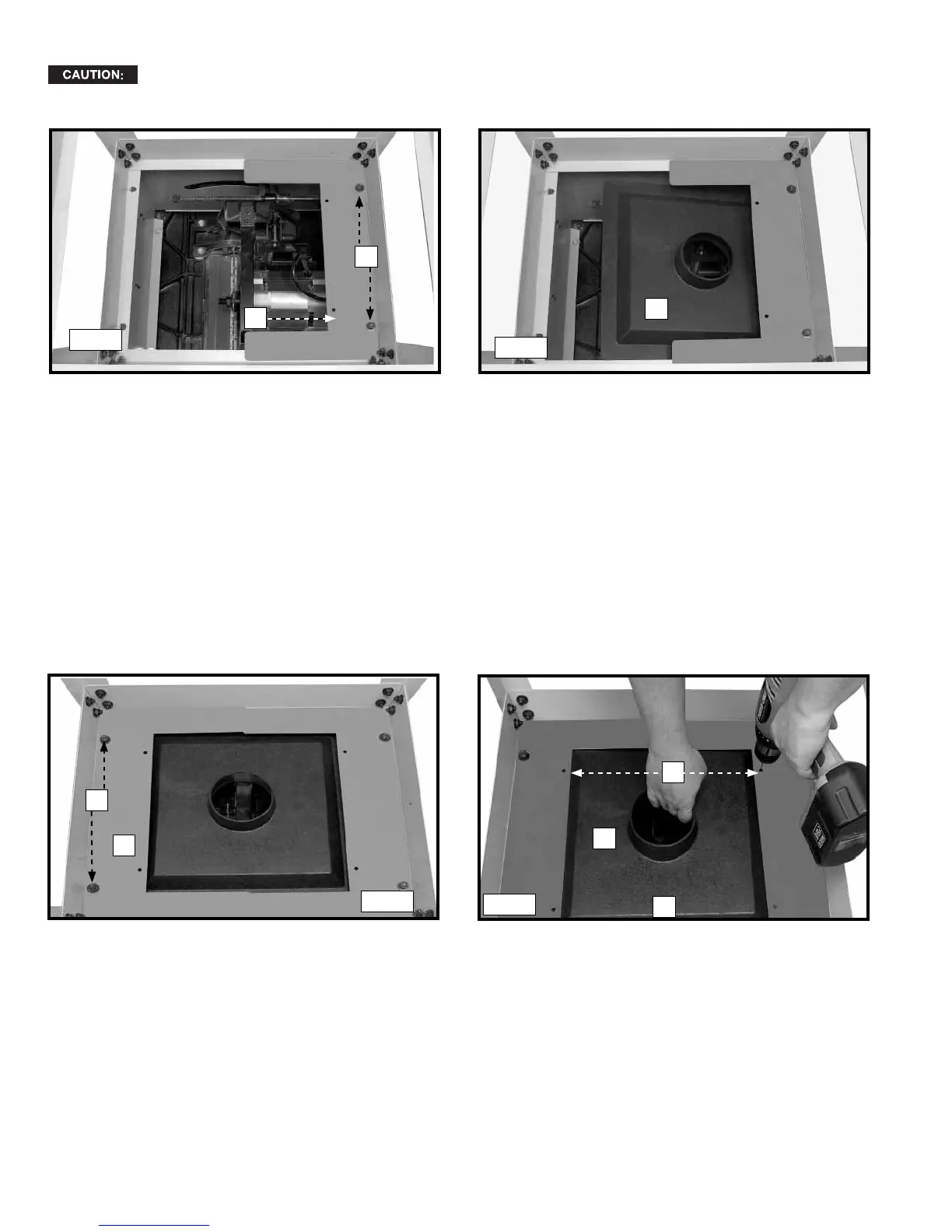

Fig. 3

Fig. 4

Fig. 5

Fig. 6

DUST COLLECTION CONNECTOR

Do not install this dust chute unless you will be using a dust collector.

The TS350 is supplied with a dust collection connector to provide a means of connecting a 4" diameter dust collection

hose to the machine.

1. Turn the saw table face down on a piece of cardboard to protect the table surface. Align the four holes in the saw

cabinet with the four holes (A) Fig. 5A in the stand.

2. Align the two holes (A) Fig. 3 in one of the mounting plates (C) with the two holes in the the stand and saw. Place

a 3/8" flat washer on an M8 x 1.25 x 16mm hex head screw. Insert the screw through the hole in the saw, the

stand, and the hole in the mounting plate. Place a 3/8" flat washer and an M8 x 1.25 hex nut on the screw. Tighten

securely. Repeat this process for the remaining hole.

3. Insert the dust collection hood (D) under the mounting plate (Fig. 4).

4. Place the other mounting plate over the dust collection hood. Align the two holes (F) Fig. 5 in the mounting plate

(E) with the two holes in the the stand and saw. Place a 3/8" flat washer on an M8 x 1.25 x 16mm hex head screw.

Insert the screw through the hole in the saw, the stand, and the hole in the mounting plate. Place a 3/8" flat washer

and an M8 x 1.25 hex nut on the screw. Tighten securely. Repeat this process for the remaining hole.

5. Lift the dust collection hood (D) Fig. 6. Use a 1/8" drill bit to drill a pilot hole through one of the dust collection hood

mounting holes (G) in the adapter plate. Thread a #10 x 1/2" sheet metal screw in the hole. Repeat this process for

the three remaining holes (G).
