11 - English
1. Turn the saw table face down on cardboard to protect the table surface. Align the four holes in the saw cabinet with
the four holes in the stand.
2. Place a 3/8" flat washer on an M8 x 1.25 x 16mm hex head screw. Insert the screw through the hole in the stand
and the hole in the saw. Place a 3/8" flat washer on the screw. Thread an M8 x 1.25 hex nut on the screw. Tighten
securely. Repeat this process for the three remaining holes.

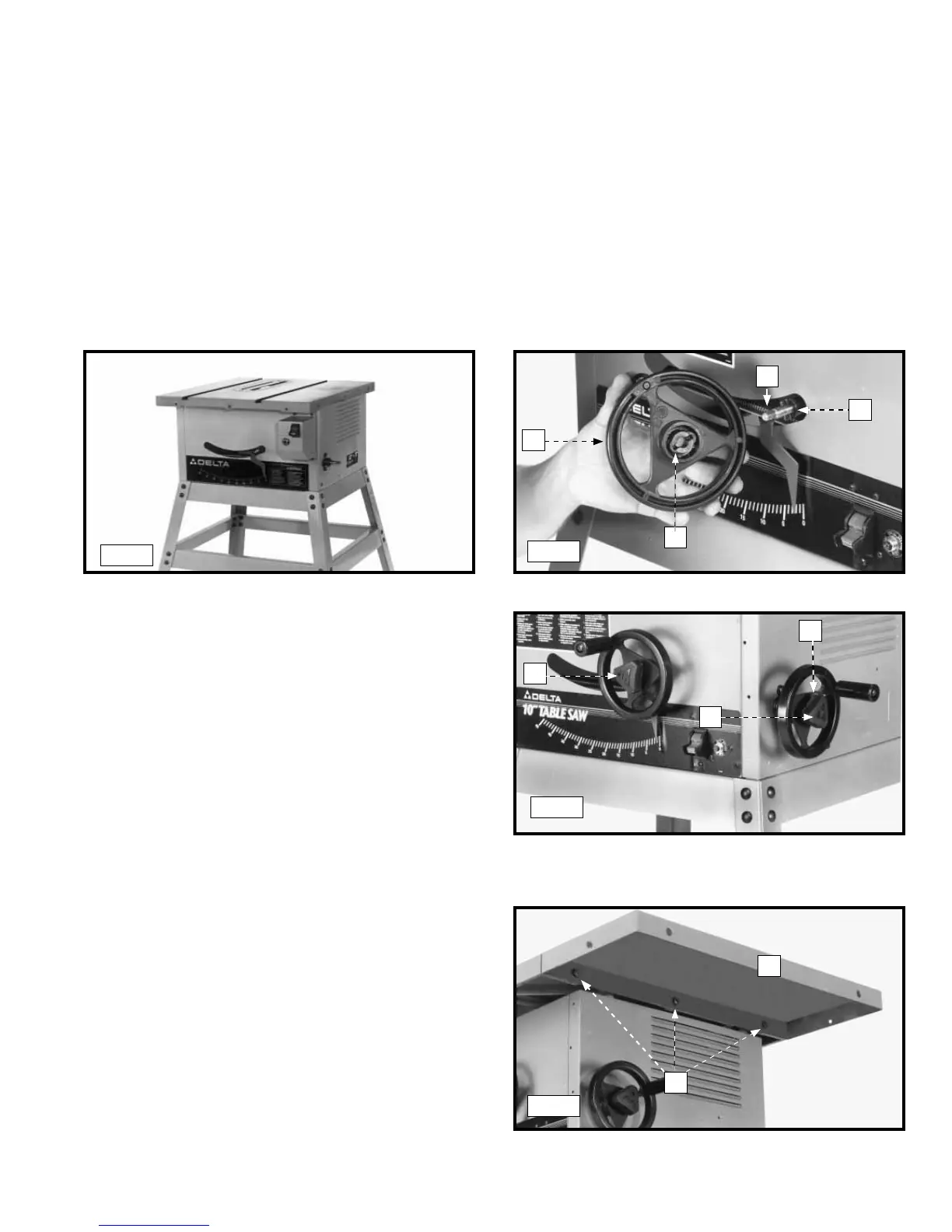

3. Turn saw table face up (Fig. 8).
4. Push on the top of the saw so that the legs of the stand can adjust to the surface of the floor. Tighten all stand
hardware.
1. Attach one handwheel (A) Fig. 9 on the blade-raising shaft (B). Engage the slots (C) in the hub of the handwheel with
the roll pin (D) on the shaft.
2. Place an M10 flat washer on the end of the shaft.
Thread the lock knob (E) Fig. 10 on the shaft.
3. Attach the other handwheel (F) Fig. 10 to the blade-
tilting shaft in the same manner.
EXTENSION WINGS
1. Align the three holes in the extension wing (A) Fig. 11
with the three holes in the side of the saw table.
NOTE: Hand-tighten the hardware for further adjustment.
Place a 5/16" lockwasher and a 3/8" flat washer on
an M8 x 1.25 x 16mm hex head screw. Insert the
screw through the hole in the extension wing. Thread
the screw into the tapped hole in the side of the saw
table. Repeat this process for the two remaining
holes in the extension wing and the saw table.
Fig. 8
Fig. 9
Fig. 10
A
D
C
E
F
G
B
A
Fig. 11
ATTACHING THE SAW TO THE STAND.
BLADE ADJUSTING HANDWHEELS
B
