Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-02-20

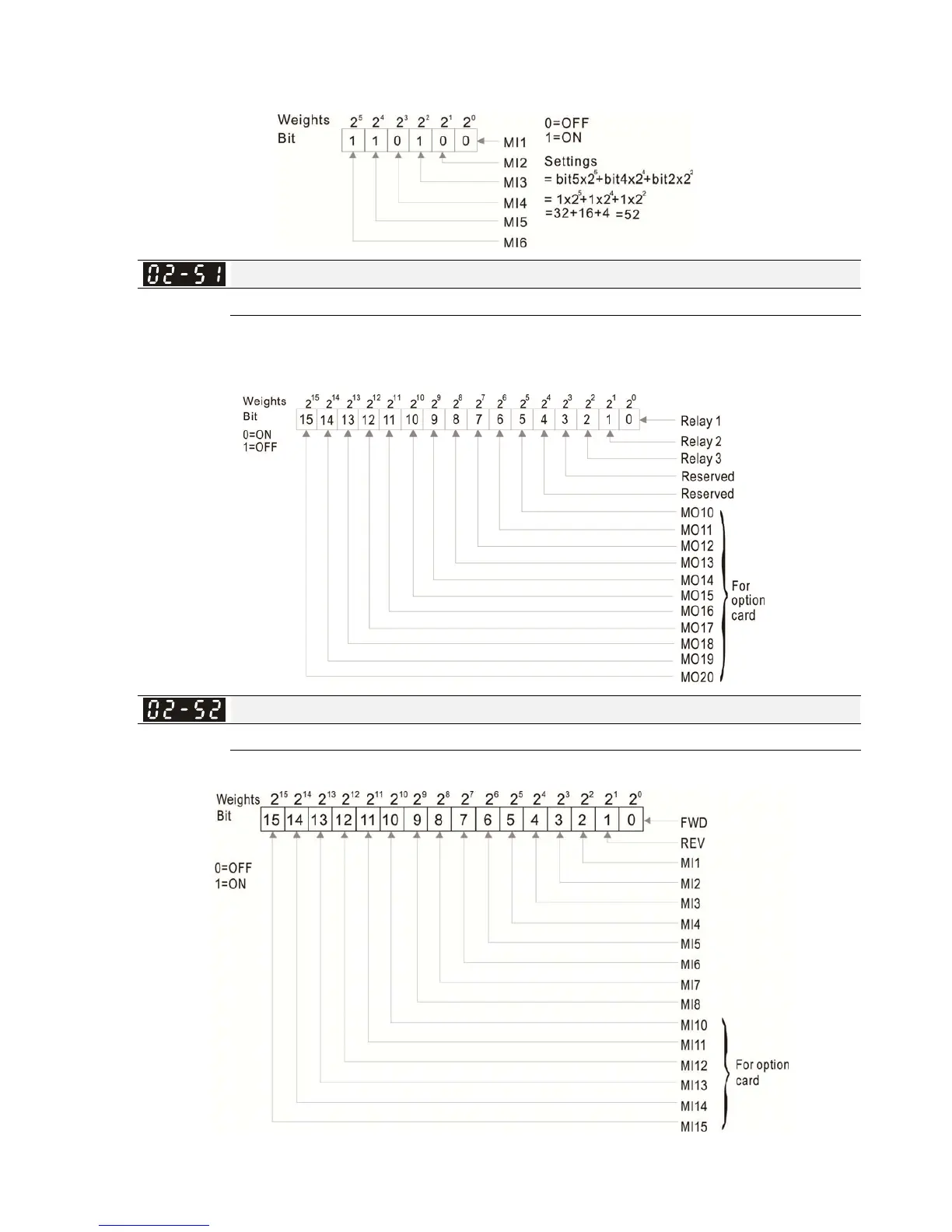

If Pr.02-50 displays 0034h (Hex), i.e. the value is 52, and 110100 (binary). It means MI1, MI3 and
MI4 are active.
Status of Multi-function Output Terminal
Factory Setting: Read only
For Example:
If Pr.02-51 displays 000Bh (Hex), i.e. the value is 11, and 1011 (binary). It means RY1, RY2 and
MO1 are ON.
Display External Output terminal occupied by PLC
Factory Setting: Read only
P.02-52 shows the external multi-function input terminal that used by PLC.
For Example:
