Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-02-25

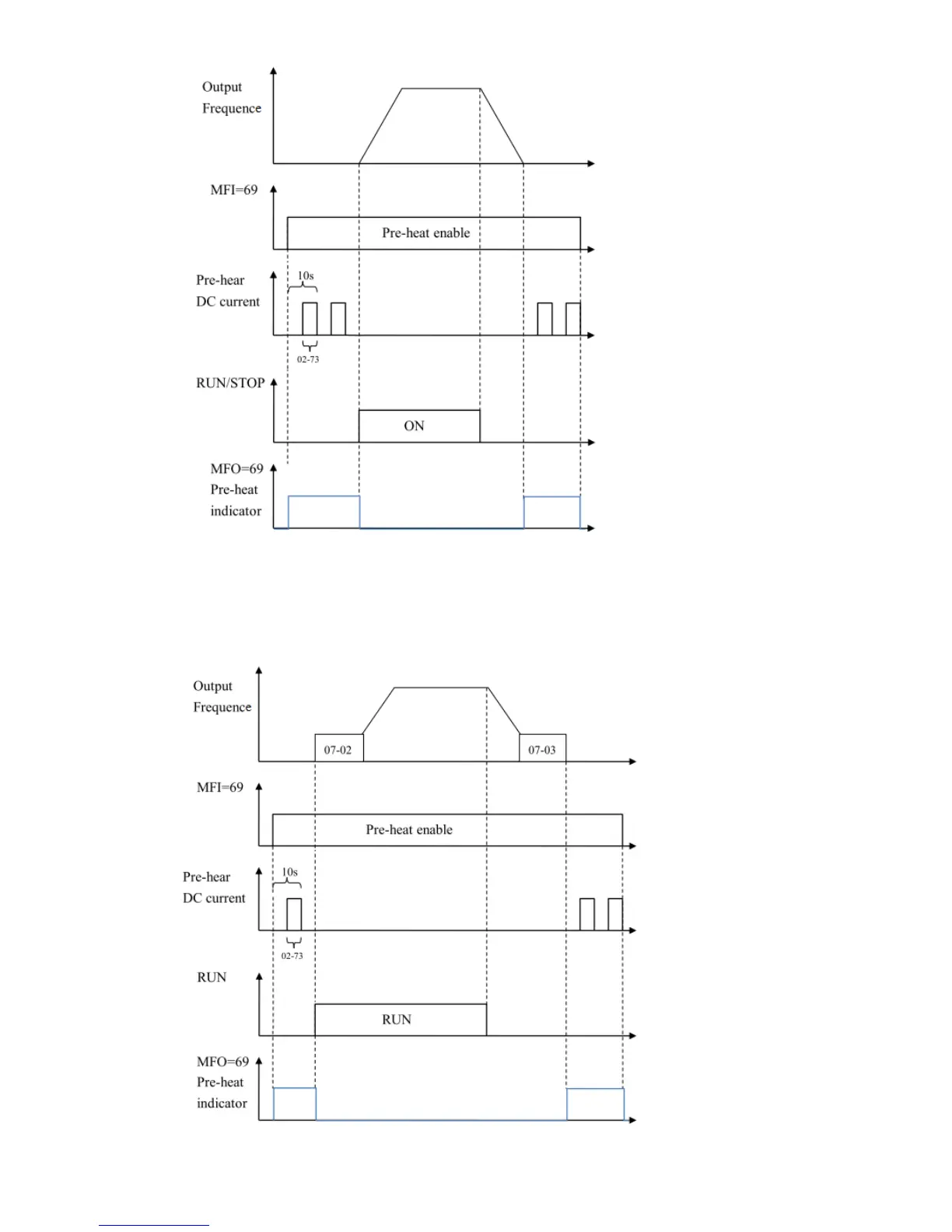

Enable DC Brake Function
DC brake and preheating are enabled at the same time. The motor drive operates in the
same logic as mentioned above. The only difference is that when the motor drive is in
operation (RUN) or stops operating (STOP), DC brake will be enabled first. Then when
motor drive stops, preheating will be activated.
