Chapter 6 Control Terminals|CFP2000 Series
6-1
Chapter 6 Control Terminals
6-1 Remove the cover for wiring
Please remove the top cover before wiring the multi-function input and output terminals,
The drive appearances shown in the figures are for reference only, a real drive may look different.

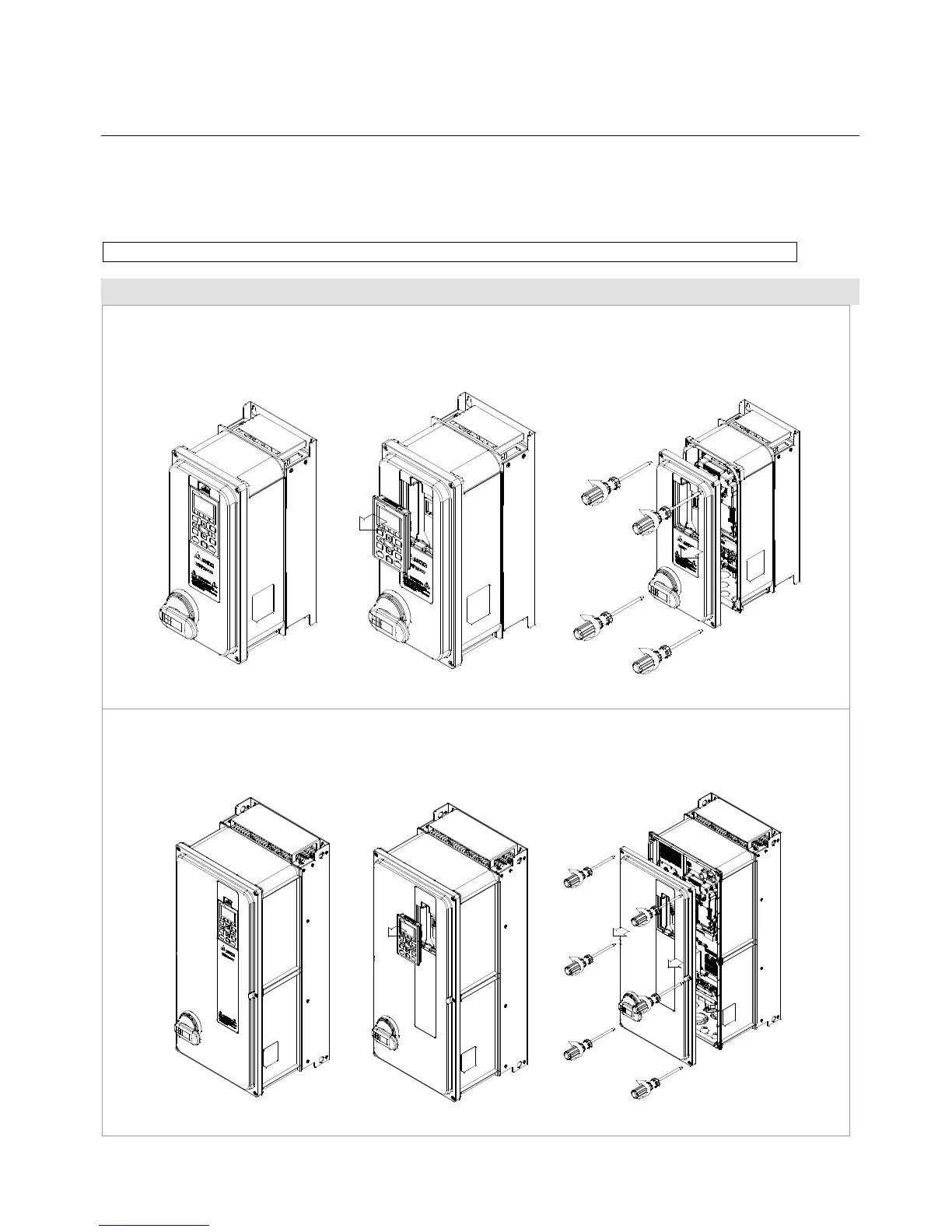

Remove the cover for wiring. Frame A~D
Frame A&B
Screw torque: 12~15Kg-cm [10.4~13lb-in.]
1) Remove the keypad. (As shown in figure 2)
2) Loosen the screws and press the tabs on both sides to remove the cover. (As shown in figure 3)
Figure 1 Figure 2 Figure 3
Frame C
Screw torque: 12~15Kg-cm [10.4~13lb-in.]
1) Remove the keypad. (As shown in figure 2)
2) Loosen the screws and press the tabs on both sides to remove the cover. (As shown in figure 3)
Figure 1 Figure 2 Figure 3
